Xerox DocuColor 1632 Service Manual

6/02
4-137
DC1632/2240
REP 12.18
Repairs and Adjustments
Prelaunch Training/Review

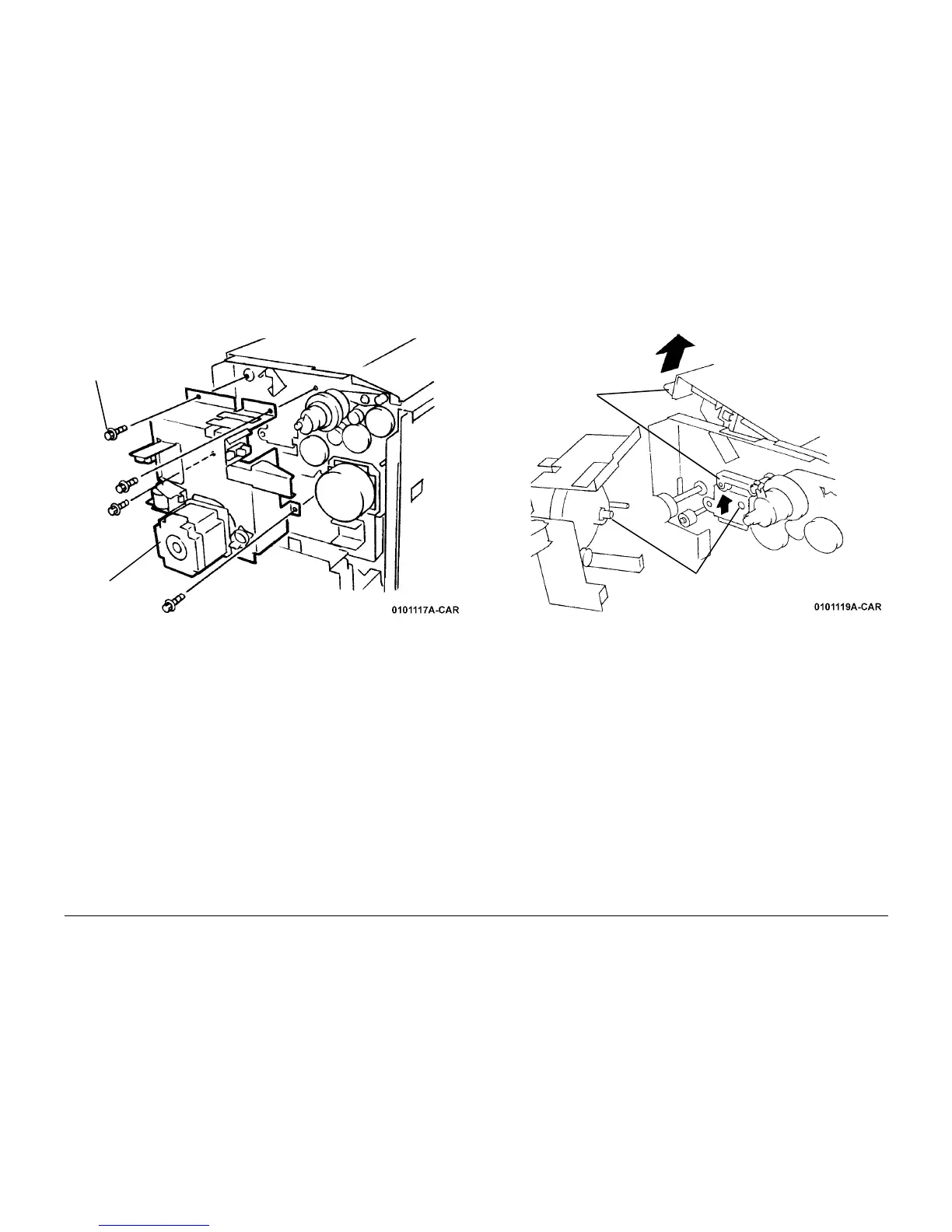

4. Remove the Cam Bracket Assembly (Figure 3).
a. Remove the Screws (4).
b. Remove the Cam Bracket Assembly.
Figure 3 Removing the Cam Bracket Assembly
Replacement
NOTE: During assembly, refer to Figure 4.
Figure 4 Inserting Axle of Cam Bracket Assembly into Hole
1
Remove
Screws (4)
2
Remove
Cam Bracket
Assembly
2
Align Axle
with Hole
1
Raise Top
Cover to raise
Roller while
performing
step 2
