3 Data Log Settings Dialog Box
14-22 WindO/I-NV4 User’s Manual
File Name: Enter the file name for the output data or shows the file name.
The default is “LOGOn.CSV”. (n: Data log channel number)
To change the file name, enter a new file name. The maximum number is 120 characters (including
the extension).
Specify File Name by Value of Device Address:
Select this check box to specify the name of the file for the output data with the value of the device
address configured by (File Name Device Address).
(File Name Device Address): Specifies the word device that is the source of the data to use as the
file name. The file name is set by reading the values sequentially from
the starting device address specified with the File Name Device Address
and handling those values as character data up to the character before
NULL (00).
The maximum number of device addresses is 40 (80 single-byte
characters). You can only specify an internal device. For the device
address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-70.

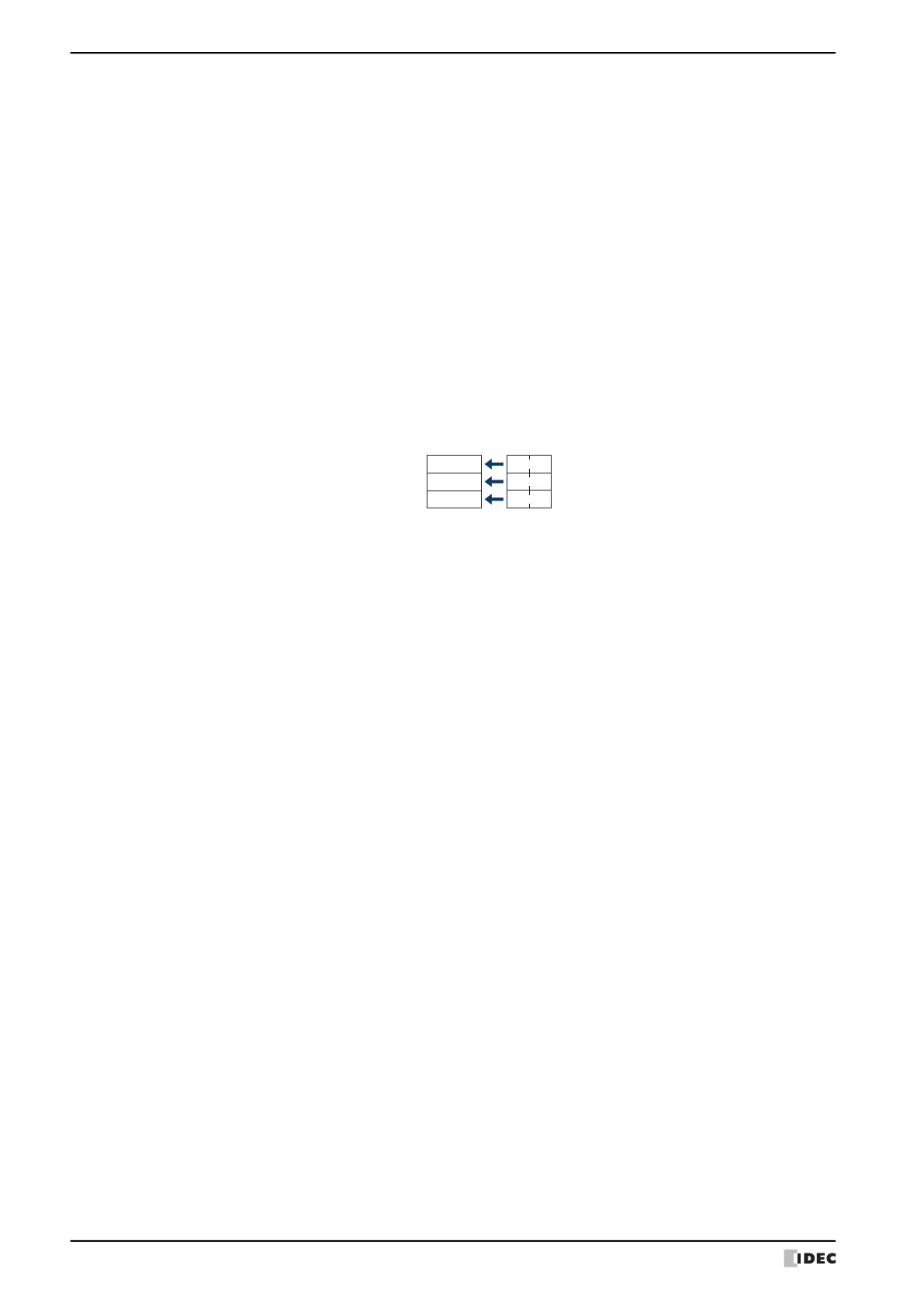

Example: When the device address specified by (File Name Device Address) is LDR100 and the text to
set is "IDEC":
The file name at this time becomes "IDEC.CSV".
Add Device Address data to File Name:
Select this check box to add the bottom three digits of the value of the device address configured by
(File Name Device Address) to the end of the file name for the output data.
(File Name Device Address): Specifies the word device that is the source for the value to add to the
file name. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-70. This option can
only be configured when the Add Device Address data to File
Name check box is selected.
Example: When File Name is "LOGA01" and the value of the device address configured by (File
Name Device Address) is 123, the file name is "LOGA01123.CSV".
Add Time Stamp:
Selects the format of the output date and time to add to the file name
for the output data.
None, YY, YY+MM, YY+MM+DD
The format is YYMMDD (YY: year, MM: month, DD: day).
Example: File Name is "LOGA01" on September 15 2013
YY: LOGO01_13
YY+MM: LOGO01_1309
YY+MM+DD: LOGO01_130915
Store File Path: Select this check box to store the file path of the output data in device addresses.
(Destination Device Address): Specifies the file path destination of word device. For the device
address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-70.
Set limit on files: Specifies the upper limit (1 to 100) when limiting the number of files to be output.
LDR100
LDR101
LDR102
(File Name Device Address)
4944
(Hex)
4543
(Hex)
‘ I ’
‘D’
‘E’ ‘C’
0000
(Hex)
(NULL)
