WindO/I-NV4 User’s Manual 3-21

5 User Communication

Communication

Using Inching Function

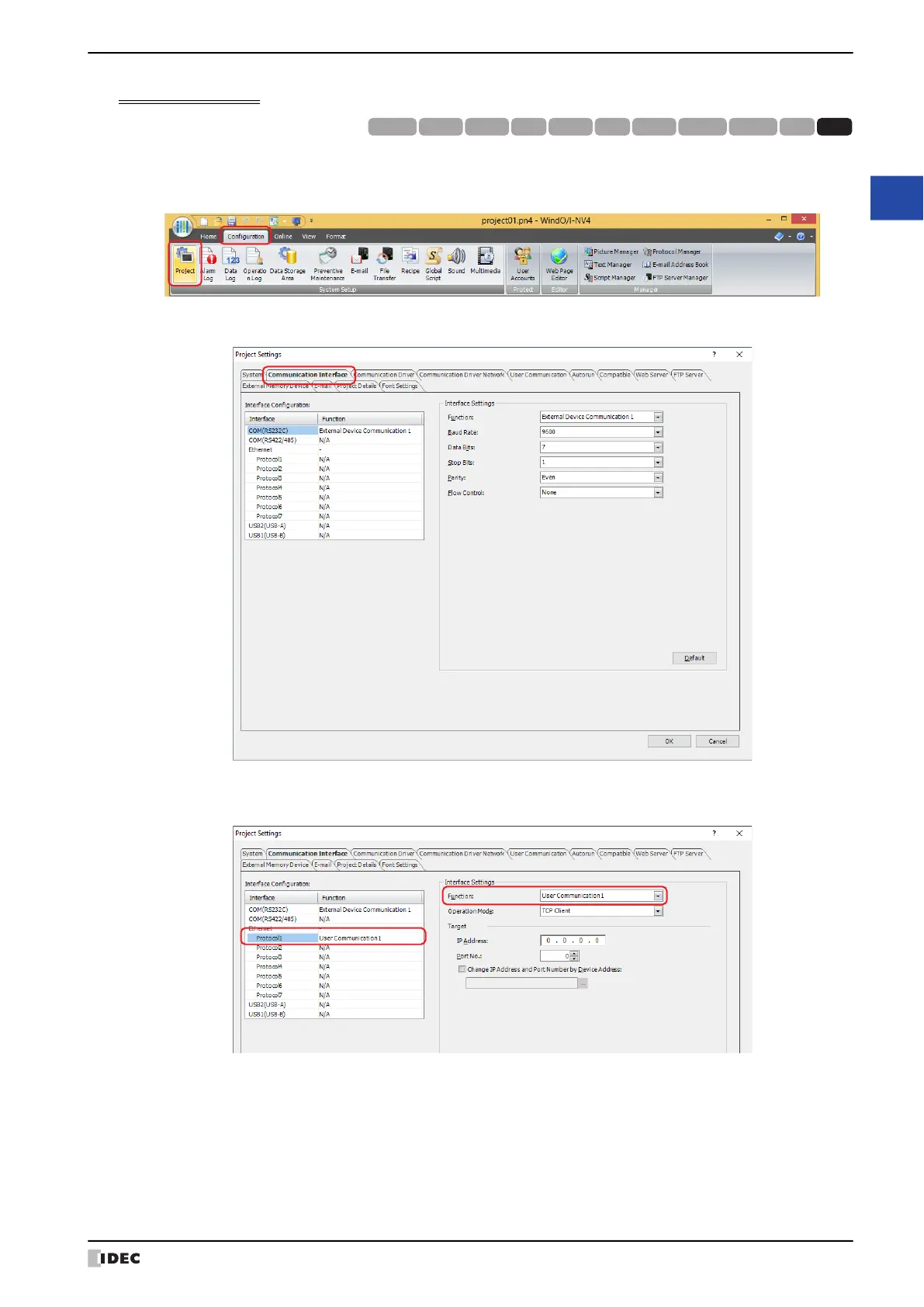

1 On the Configuration tab, in the System Setup group, click Project.

The Project Settings dialog box is displayed.

2 Click the Communication Interface Tab in the Project Settings dialog box.

3 Select the interface for user communication under Interface Configuration, and then select the User

Communication 1

in Function under Interface Settings.

*1 Inching function can be configured only for User Communication 1.

HG3G

HG2G-5FHG5G-V HG4G-V HG3G-V HG2G-V HG2G-5T

HG4G HG1G HG1P

HG2J-7U
