WindO/I-NV4 User’s Manual 25-13

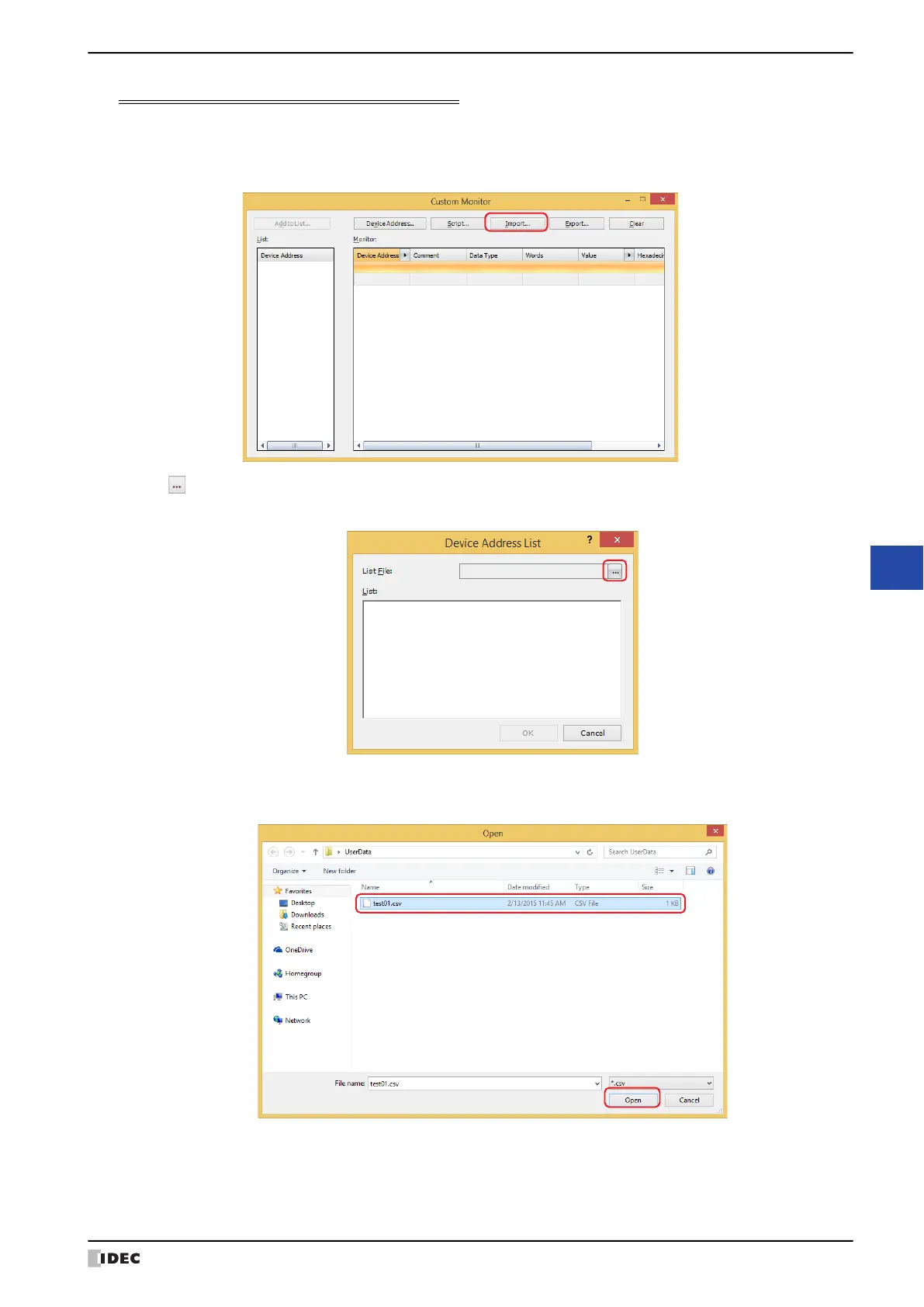

1 Monitoring with WindO/I-NV4

Monitor Function

Importing Device Addresses from a Device Address List

Imports the device addresses from a device address list saved as a CSV text file into custom monitor.

1 Click Import.

The Device Address List dialog box is displayed.

2 Click .

The Open dialog box is displayed.

3 Select a saved device address list, and then click Open.

The device addresses are listed.
