WindO/I-NV4 User’s Manual 35-73
5 HG1P
35
MICRO/I Specifications

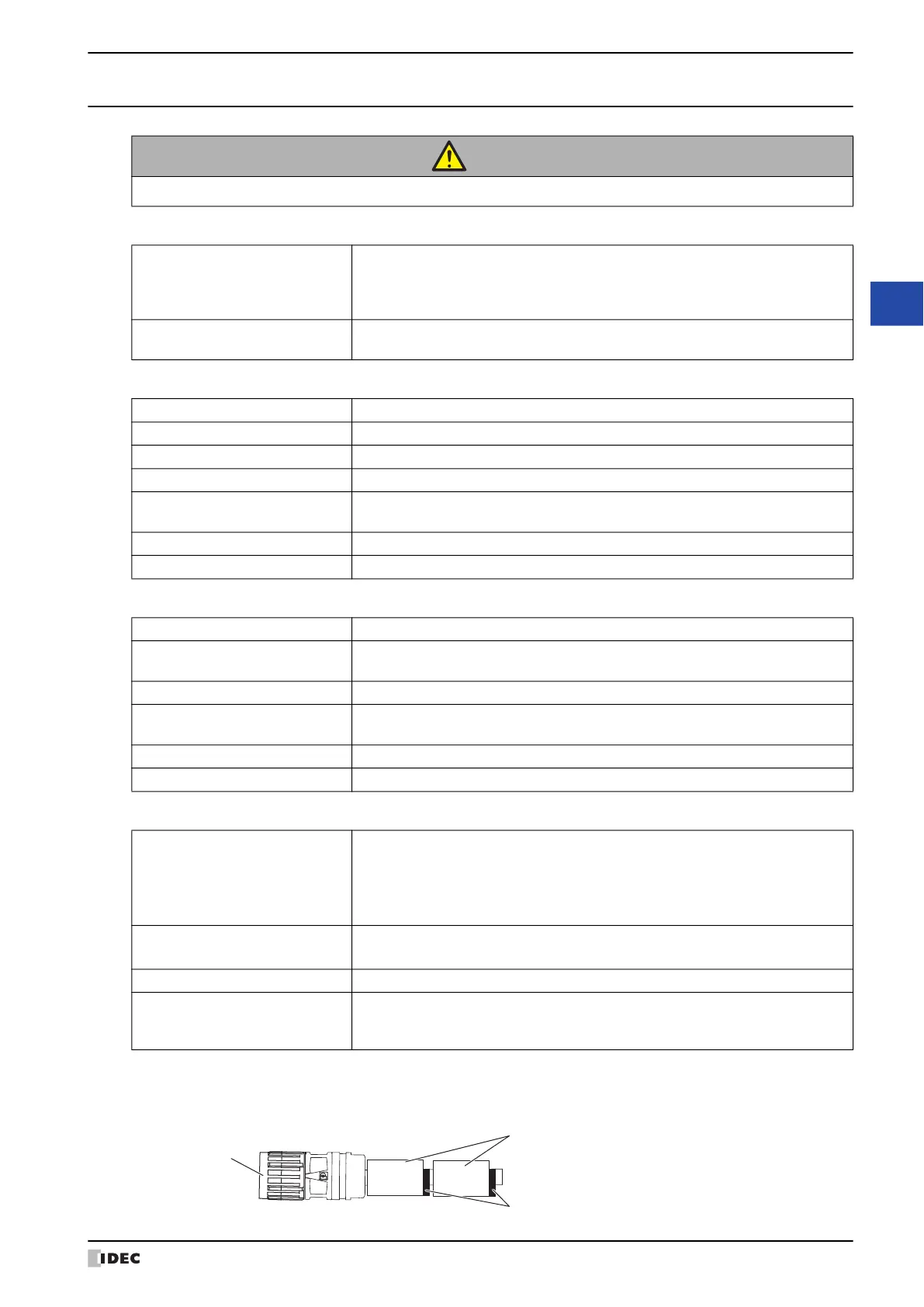

5.5 Specifications
■ Applicable Standards
■ Environmental Specifications
■ Electrical Specifications
■ Construction Specifications
*1 When using the HG1P-ST32ZBFH-B0 with Connect Speed of 10/100 Mbps as the EMC Standard Approved Products,
attach the recommended ferrite cores (2 pieces) near the connector for HG1P of the HG1P optional cable, and fasten them
to the cable with the clamp bands.
CAUTION
The following specifications are when the HG1P optional cable, specified by IDEC, is attached.
Safety Standards
UL61010-1
UL61010-2-201
CSA C22.2 No.61010-1 (c-UL)
CSA C22.2 No.61010-2-201 (c-UL)
EMC Standards
*1
IEC/EN 61131-2
FCC
Operating Temperature 0 to +45°C
Operating Humidity 10 to 90% RH (no condensation)
Storage Temperature -10 to +60°C
Storage Humidity 10 to 90% RH (no condensation)
Altitude and Atmospheric Pressure
Up to 2000m (RUN)
750 to 1060hPa
Pollution Degree 2
Corrosion Immunity Free from corrosive gases
Rated Voltage 24V DC
Power Consumption
3W maximum
When not using USB Interface (USB2): 2W maximum
Power Voltage Range 20.4 to 28.8V DC
Allowable Momentary Power
Interruption
10 ms maximum
Inrush Current 20A maximum
Dielectric Withstand Voltage AC500V, 10mA, 1 minute (between power and ground terminals)
Vibration
5 to 8.4Hz amplitude 3.5mm,
8.4 to 150Hz acceleration 9.8m/s
2
1 octave 10 minutes
10 times on each of three mutually perpendicular axes (100 minutes)
(IEC61131-2)
Shock
147m/s
2
, 11ms (5 shocks on each of three mutually perpendicular axes)
(IEC61131-2)
Dropping 1.5 m, 6 directions, 1 time
Connector Insertion Life
HG1P Optional Cable: 100 times
USB1: 5000 times
USB2: 1500 times
Recommended ferrite core: E04SR211132 (2 pcs) manufactured
by SEIWA ELECTRIC MFG Corporation
Clamp Band
Connector for HG1P
