WindO/I-NV4 User’s Manual 35-85
5 HG1P
35
MICRO/I Specifications

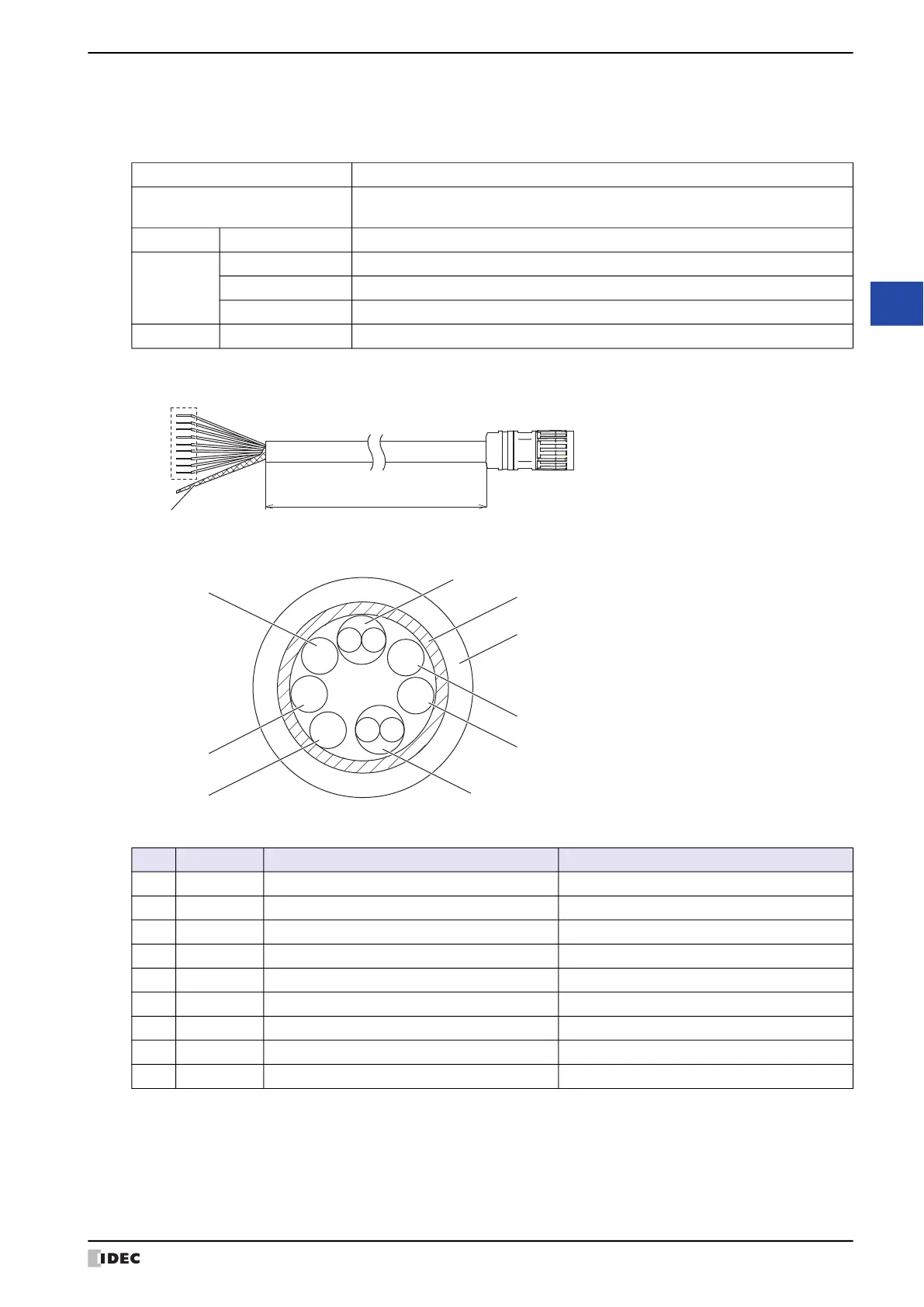

● HG1P Debug Cable (HG9Z-PX12)
This cable is the debug cable. Use this cable only for debugging.
■ Cable Specification
■ Outline Drawing
■ Sectional View
■ Wiring Table
Structure Double shield cable
Configuration
AWG25 x 2 Pair
AWG23 x 5 Cores
Conductor Configuration 40N/0.08mm(Pair), 60N/0.08mm(Cores)
Insulator
Material PVC
Thickness 0.16mm(Pair), 0.145mm(Cores)
Outer Diameter 0.9mm(Pair), 1.0mm(Cores)
Sheath Outer Diameter 7.0 mm
Cable Length 2m
Stripped Wires
Shield
White Black
Black
Red
Green
Orange
Blue
Brown
Yellow
Shield
Sheath
Wire pair 2
Single wire 1
Single wire 5
Single wire 4
Single wire 3
Single wire 2
Wire pair 1
No. Name Function Cable Color
1 RDA+/TP1+ Receive Data (+) Wire pair 1 : Black
2 RDB-/TP1- Receive Data (-) Wire pair 1 : Red
3 SDA+/TP0+ Send Data (+) Wire pair 2 : Black
4 SDB-/TP0- Send Data (-) Wire pair 2 : White
5 FG Frame Ground Single wire 1 : Green
6 SG Communication Signal Ground Single wire 2 : Yellow
7 DC24V+ HG1P 24V DC Power Supply (+) Single wire 3 : Brown
8 NC - Single wire 4 : Blue
9 DC24V- HG1P 24V DC Power Supply (-) Single wire 5 : Orange
