5 HG1P
35-86 WindO/I-NV4 User’s Manual

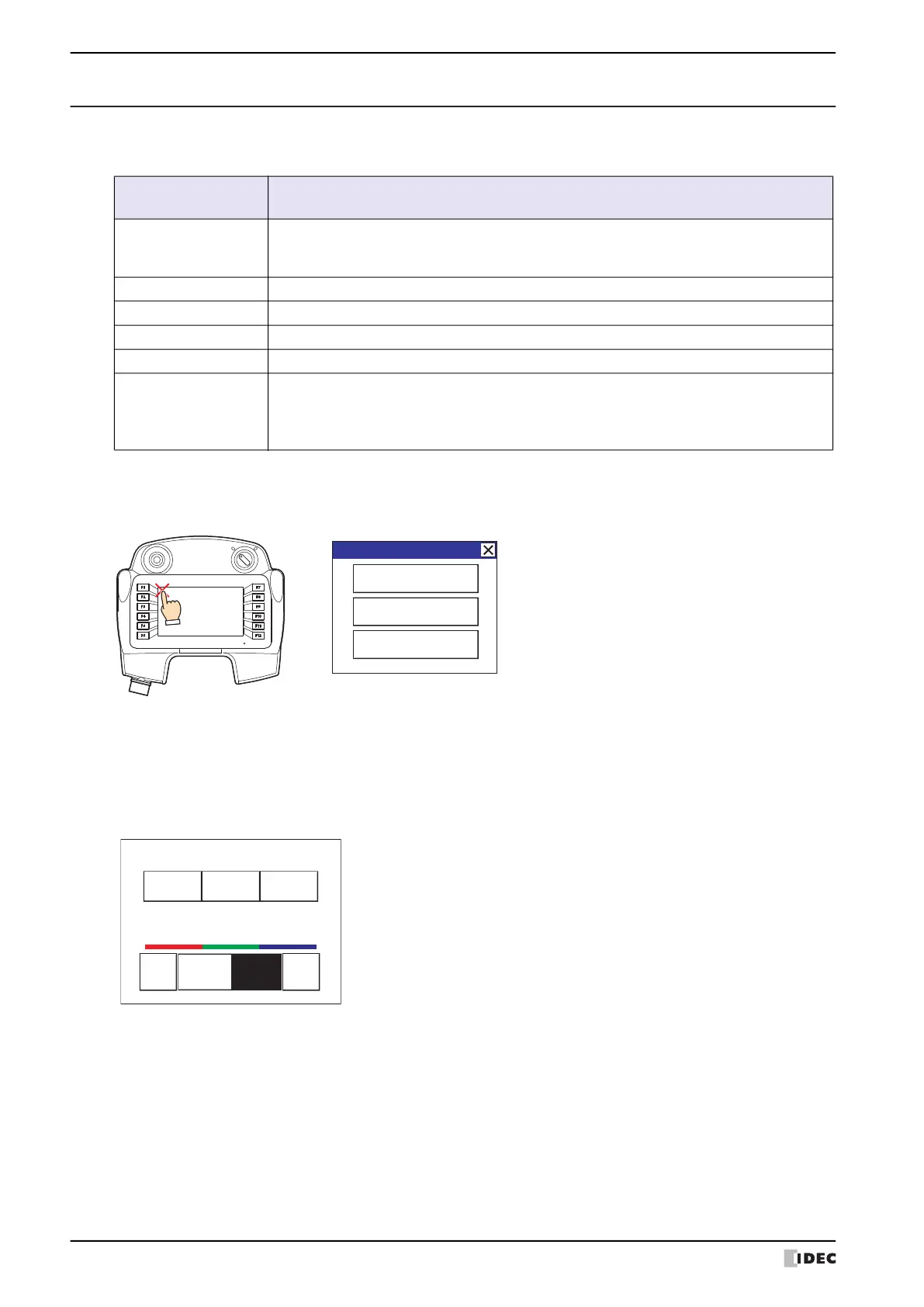

5.9 Maintenance and Inspection
Maintain and inspect the HG1P periodically to ensure it is in peak condition. Do not disassemble, repair, or modify the
HG1P during inspection.
●
Maintenance Screen
Turn on the power to the HG1P, then press and hold the touch panel on the upper-left corner of the screen for three
seconds or longer. The Maintenance Screen appears on the screen.
• Permission to show the Maintenance Screen can be set using the WindO/I-NV4. Refer to Chapter 4 “3.1 System
Tab” on page 4-25 for details.
• The Maintenance Screen is not displayed in the System Mode.
●
System Mode
Press the [System Mode] at the top of the Maintenance Screen. The Top page Screen appears.
Initial Setting, Self Diagnosis and Initialization of the data, etc can be executed in the System mode.
Maintenance and
Inspection Parts
Description
Display
Wipe any stain of the display using a soft cloth slightly dampened with neutral detergent or
alcoholic solvent. Do not use solvents such as thinner, ammonia, strong acid, and strong
alkaline.
Removable Connector Check the terminals and connectors to make sure of incomplete insertion or disconnected lines.
USB Port Cover Make sure of no loose screws, or no twisted gasket.
Wall-Mounted Hook Make sure of no loose screws.
Backlight The HG1P’s backlight cannot be replaced.
Touch Panel
A gap may be caused in the operation accuracy of the touch panel by the secular distortion,
etc. Readjust the touch panel in the System Mode according to the following procedure when
there is a gap in the operation of the touch panel.
Refer to “Adjusting the Touch Panel” on
page 35-88 for details.
Maintenance Screen
Maintenance
System Mode
Device Monitor
Adjust Brightness
Run Offline Main Menu
<< >>
SYSTEM MODE TOP PAGE
2010/OCT/14/THU 14:56:44
IP Address 192.168.0.1(DHCP)
BRIGHTNESS 16BRIGHTNESS 16
To Next Page
Loading...
General
