WindO/I-NV4 User’s Manual 4-11
1 Creating and Manipulating WindO/I-NV4 Project Data
4
Project Settings

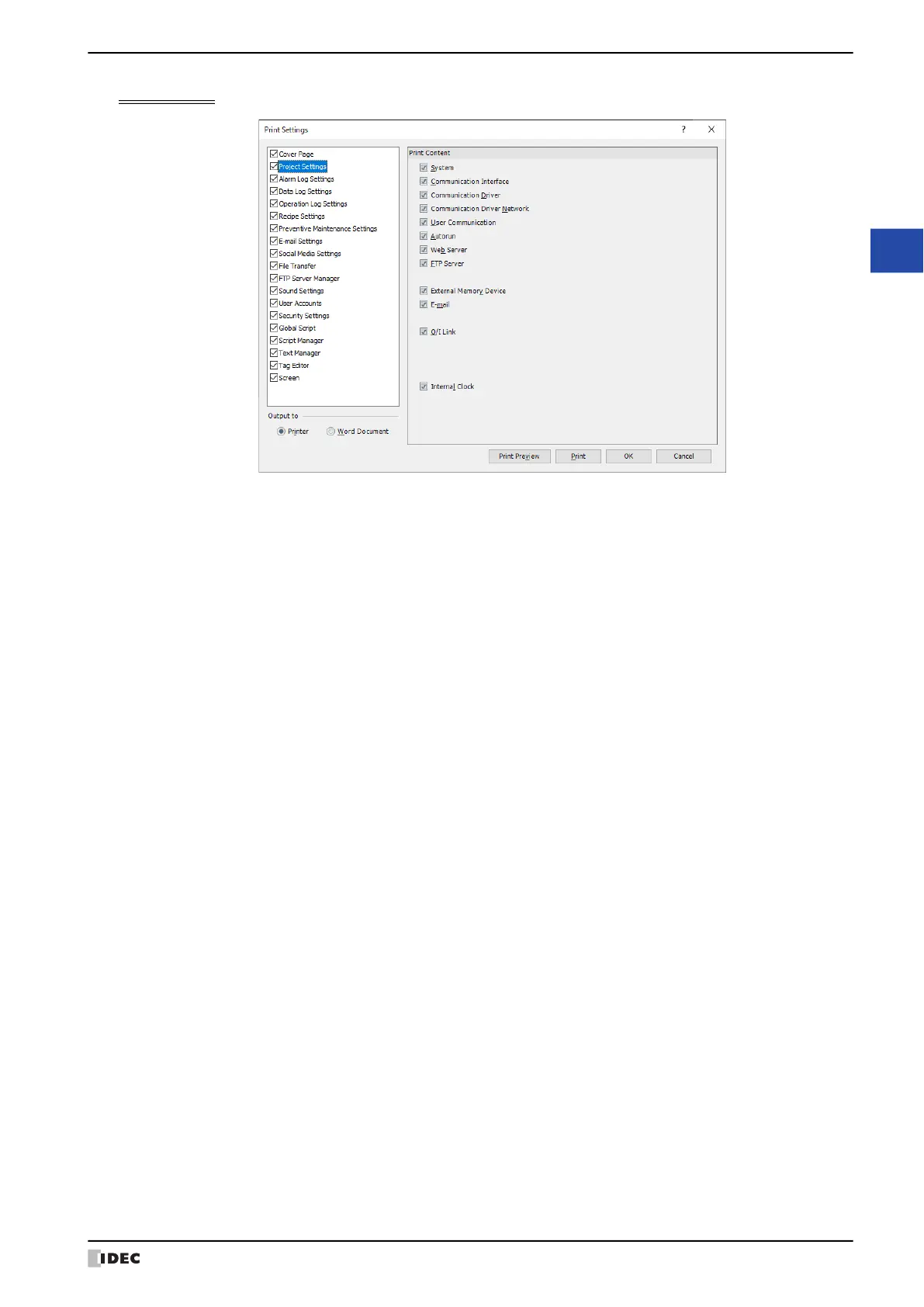

Project Settings
â– Print Content
Select the check boxes of the project settings to print.
*1 HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F only
*2 HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F/-5T, HG1G/1P only
*3 HG5G/4G/3G/2G-V only
*4 HG2J-7U only
System: The settings on the System tab will be printed.
Communication Interface: Interface and Function that have been configured and the corresponding
Interface Settings will be printed.
Communication Driver: The function of the configured external device and its Manufacturer and
Communication Driver will be printed.
Communication Driver Network: Settings will be printed. The settings of external devices for which External
Device Communication is set to N/A will not be printed.
User Communication: Protocol Name will be printed. Settings for which Protocol Name is set to N/A
will not be printed.
Autorun: The Enable USB Autorun and Open Popup Screen when USB Flash Drive is
inserted settings will be printed.
Web Server: All settings on the Web Server tab will be printed.
FTP Server: All settings on the FTP Server tab will be printed.
Expansion Module
*1
:
All settings on the Expansion Module tab will be printed.
External Memory Device: All settings on the External Memory Device tab will be printed.
E-mail: All settings on the E-mail tab will be printed.
Sub Host Communication
*2
:
All settings on the Sub Host Communication tab will be printed.
O/I Link: If Function is set to O/I Link Master, then Slave Settings will be printed.
If Function is set to O/I Link Slave, then O/I Link Station will be printed.
Font/Kanji Dictionary Data
*2
:
The settings of the Optional Fonts to be downloaded and the Use Kanji
dictionary data will be printed.
Printer
*1
:
All settings on the Printer tab will be printed.
BACnet/IP Settings
*3
:
Prints the settings on the BACnet/IP Settings tab.
Internal Clock
*4
:
All settings on the Internal Clock tab will be printed.
To Next Page
