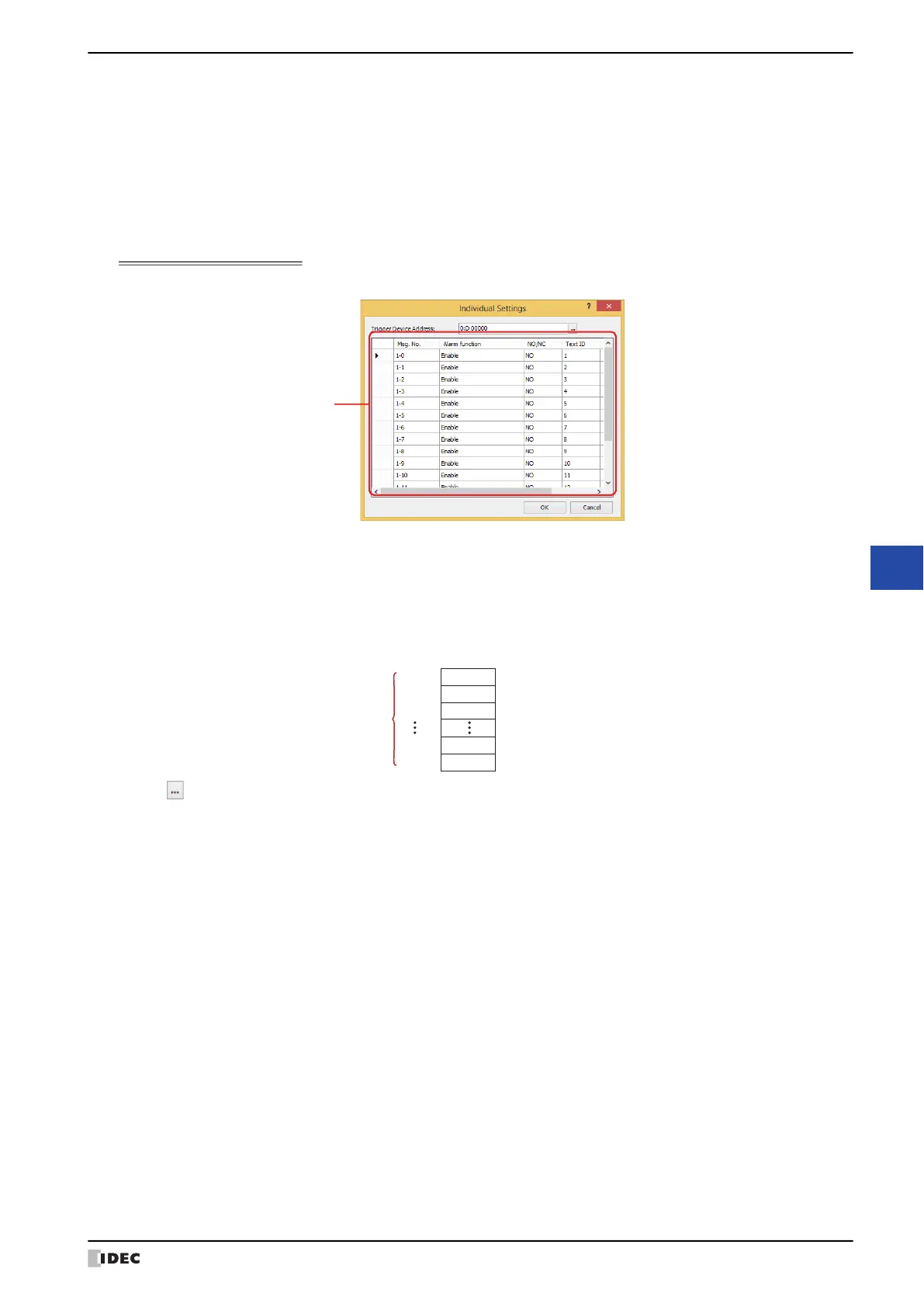

Individual Settings Dialog Box
The Individual Settings dialog box is used to configure the conditions to display the messages.
■ Trigger Device Address
Specifies the word device to use as the condition to display messages. The word device bits correspond to the
message numbers.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-70.
When Serial is selected for Device Address Setting Method on the List tab, the trigger device addresses for block
numbers after the block number being registered or edited are automatically changed with the configured trigger
device address as the starting address.
■ (Settings)
Insert: Inserts the block settings in the position selected on the list.
Select the block number at the position to insert the settings in the list and click this button
to display the Individual Settings dialog box. For details, refer to “Individual Settings
Dialog Box” on page 10-141.
The settings at the insertion point shift down one line. Settings cannot be inserted if all
block numbers are configured.
Delete: Deletes the registered settings from the list.
Select a block number on the list and click this button to delete the selected settings from the list.
(Settings)
Example: When the number of blocks is 1 and D0 is specified as the trigger device address
The device address of the number(Block Number - Message Number) 1-0 is D0-0, the device address of the
number 1-1 is D0-1, ... the device address of the number 1-15 is D0-15.
D0-0
D0-1
D0-2
D0-14
D0-15
1-0
1-1
1-2
1-14
1-15
Block 1
16 channels
Number(Block Number - Message Number) Device Address
Msg. No.: Displayed as (Block No.)-(Message No.).
Alarm function: Selects whether or not to use the alarm function. Double clicking the cell switches between Enable
and Disable.
Enable: Monitors the state of the device address bit configured for the channel and displays the
message.
Disable: The device address bit is not monitored and the message is not displayed.
NO/NC: Selects the alarm detection condition. Double clicking the cell switches between NO and NC.
NO: Displays the message when the monitored bit changes from 0 to 1.
NC: Displays the message when the monitored bit changes from 1 to 0.
Text ID: Shows the Text Manager ID number (1 to 32000) to use for the message.
The text ID is sequentially configured starting with the text ID configured by Start Text ID on the
List tab.
Text: Shows the text for the specified text ID.
Only shows the first line of text when the text registered to the text ID has multiple lines.
