8 Alarm Log Display
10-156 WindO/I-NV4 User’s Manual
■ Displaying Alarms
*1
Select these check boxes for alarms to display on the Alarm Log Display.
■ First Alarm
*1
An alarm that occurs in a state where no alarms have occurred is called the first alarm. Select the check boxes for the
operations to execute when the first alarm occurs.
■ Operate the Alarm on List directly
*1
Select this check box to display the focus by pressing an alarm displayed on the list.
When an alarm is pressed with no focus displayed, the focus is displayed on that alarm.
When an alarm is pressed that does not have focus when the focus is displayed, the focus is moved to that alarm. The
focus is no longer displayed when an alarm with focus is pressed.
*1 Advanced mode only

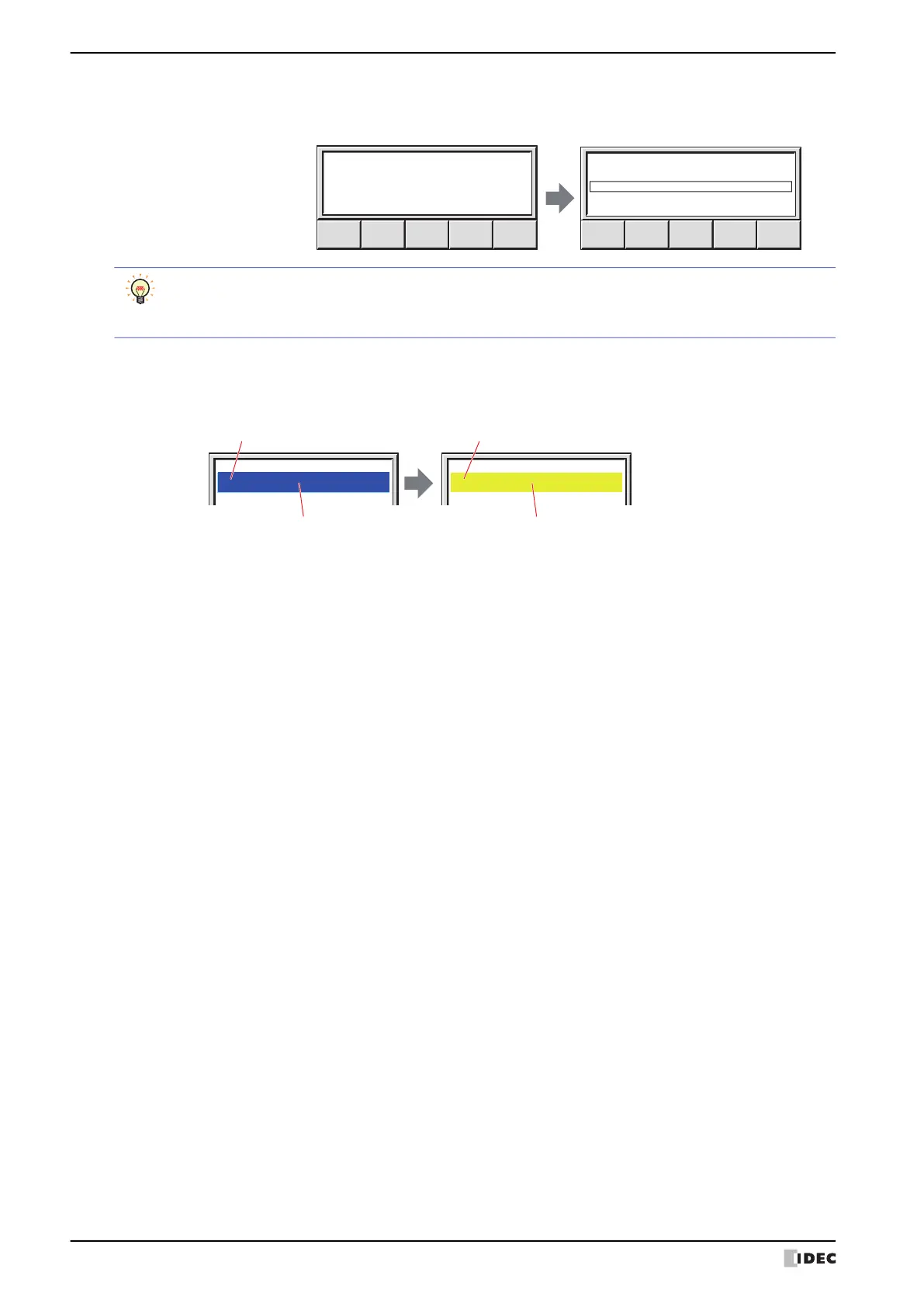

Border Displays a frame (perfomrs the negative/positive conversion to the inside 2 dots only)
on the row with focus.
Occurrence Message Recovered Confirmed
12/01 12 : 00 Current fault
12/01 12 : 00 Current fault 12 : 50
12/01 12 : 00 Current fault 12 : 54
Occurrence Message Recovered Confirmed
12/01 12 : 00 Current fault
12/01 12 : 00 Current fault 12 : 50
12/01 12 : 00 Current fault 12 : 54
Up Down CheckSelect Delete Up Down CheckSelect Delete
With negative/positive conversion, the color data (RGB value) is inverted and displayed.
Example: When the white color data 0xFFFFFF is inverted, it becomes 0x000000 and is displayed in black.
For details on the color data, refer to Appendix “Windows RGB Value Correspondence Table” on page A-2.
Example: Inverts Text Color and Background Color when a color is set to Background Color.
When the Background Color is Blue(0x0000FF) and the Text Color is Red(0xFF0000), inverts the
Background Color to Yellow(0xFFFF00) and the Text Color to Cyan(0x00FFFF).
When Background Color is None, Text Color and Plate Color is inverted.
Display Focus on List after changing Screens or occurring Alarms
*1
:
Select this check box to automatically display the focus at the first item in the list
after switching screens and when an alarm occurs.
Display Reference Screen
*1
:
Select this check box to automatically display the reference screen for the alarm that
has focus by the following events.
• The focus is displayed
• The focus moves
• A new alarm occurs
Current fault2019/09/06Current fault2019/09/06
Background Color : Blue(0x0000FF)
Text Color : Red(0xFF0000)
Background Color : Yellow(0xFFFF00)
Text Color : Cyan(0x00FFFF)
Not Recovered and Unconfirmed Alarm: Displays active alarms that have not been recovered and confirmed.
Not Recovered and Confirmed Alarm: Displays alarms that have not been recovered but the key button CHECK
has been pressed.
Recovered and Unconfirmed Alarm: Displays alarms that have been recovered but the key button CHECK has
not been pressed.
Recovered and Confirmed Alarm: Displays alarms that have been recovered and the key button CHECK has
been pressed.
Display First Alarm to 1st line on List: Always displays the first alarm on the first line of the list.
