WindO/I-NV4 User’s Manual 10-157
8 Alarm Log Display
10
Data Displays

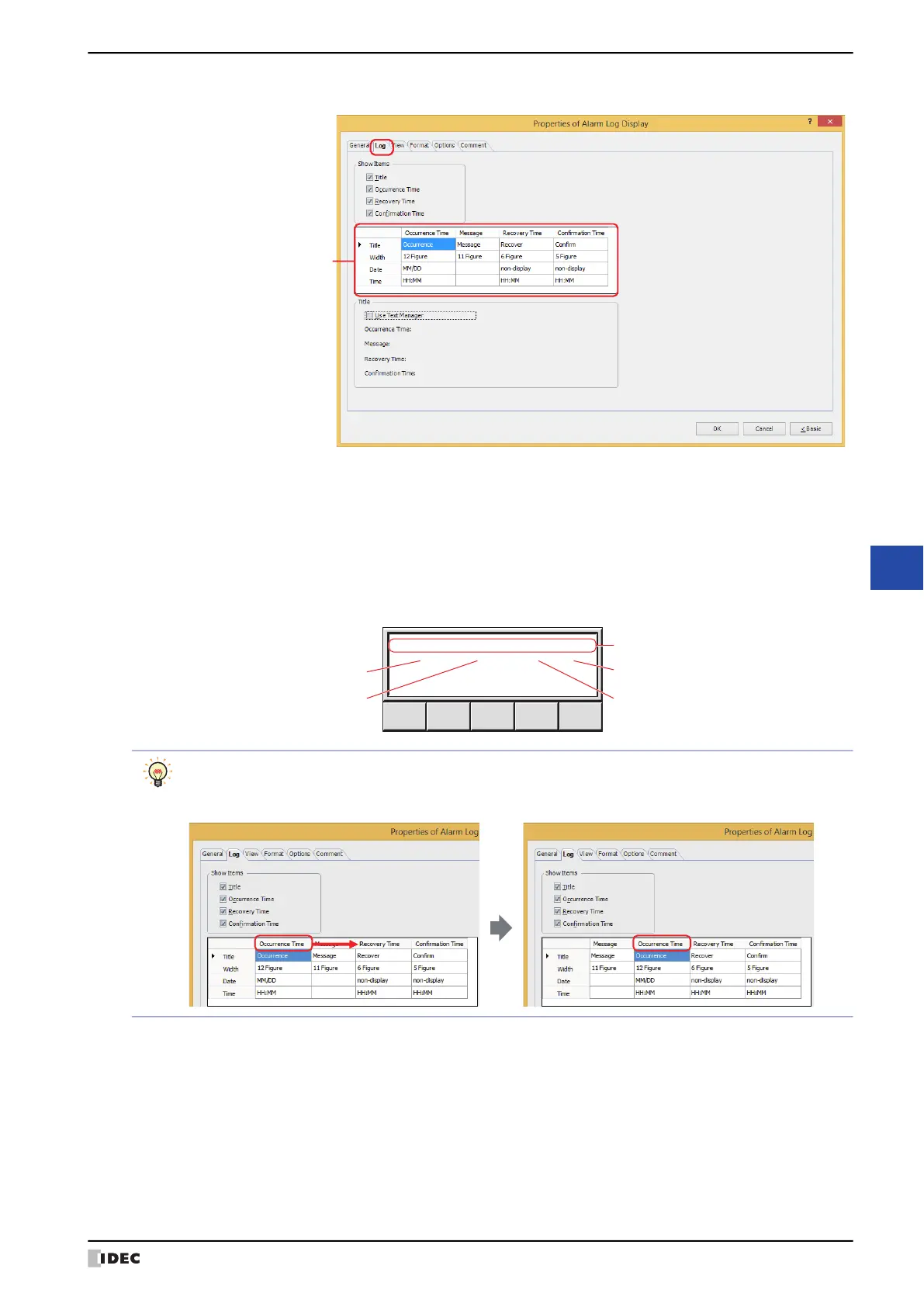

● Log Tab
■ Show Items
Select these check boxes for the items to display on the Alarm Log Display.
(Show items detailed settings)
Title: Shows the titles on the first line of the list.
Occurrence Time: Shows the time the alarm occurred.
Recovery Time: Shows the time the alarm was recovered from.
Confirmation Time: Shows the time the alarm was confirmed by pressing the key button CHECK.
Up Down CheckSelect Delete
Occurrence Message Recovered Confirmed
12/01 12 : 00 Current fault 12 : 53 12 : 54
Title
Recovery time
Confirmation time
Message
Occurrence time
You can drag and drop the sub headings to change the order of items to be displayed on the Alarm Log
Display. This function is not applied to the order of the Alarm Log output data by batch or real time output
function.
