10 Numerical Display
10-192 WindO/I-NV4 User’s Manual

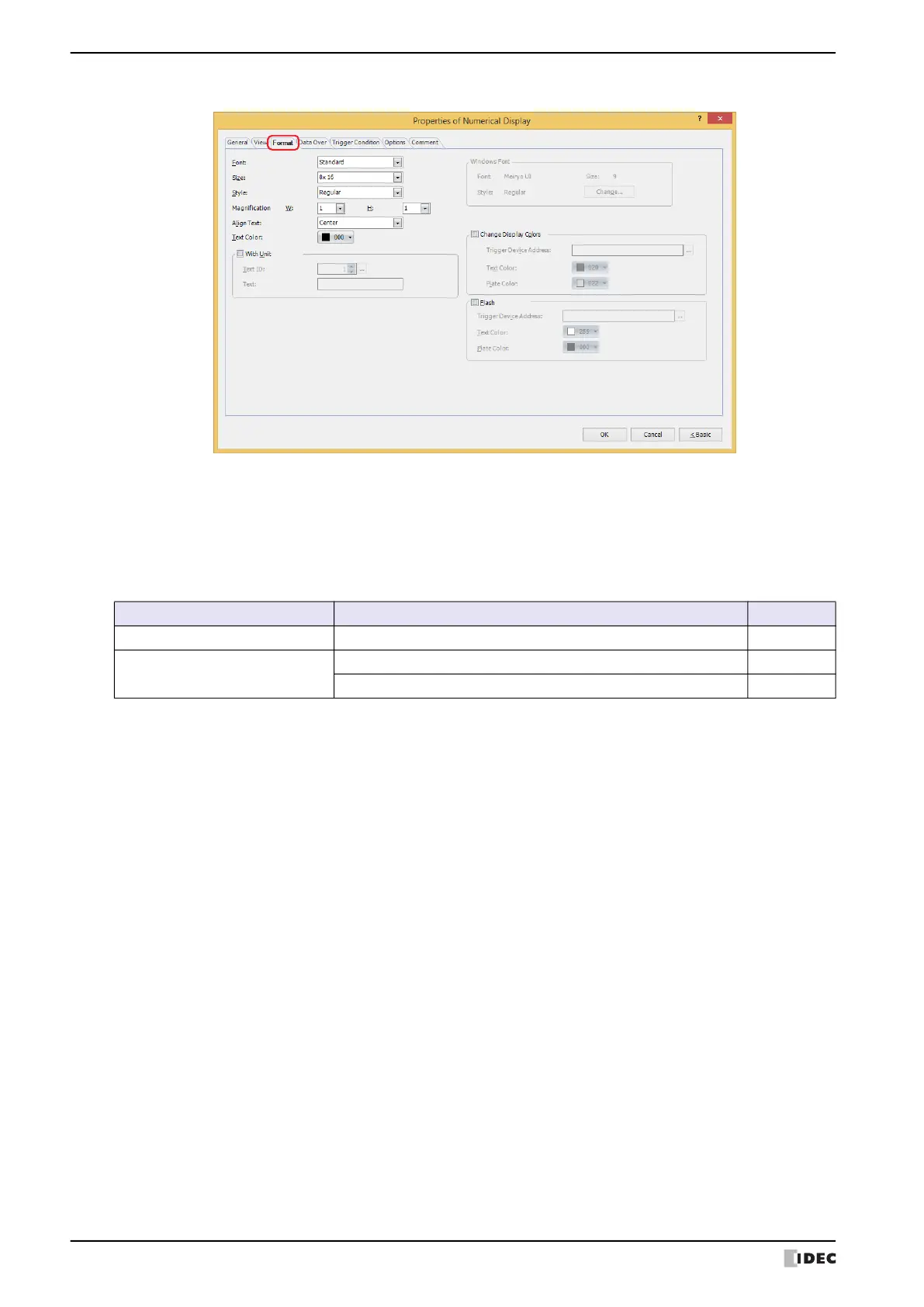

● Format Tab
■ Font
Selects the font used for displaying text from the following.
Western
*1
, Standard
*2
, Stroke
*2
, 7-Segment, Windows
The characters that can be displayed depend on the font. For details, refer to Chapter 2 “1.2 Available Text” on page 2-6.
■ Size
Specifies the text size to be displayed. The fonts and sizes that can be set vary based on the model.
■ Style
*2
Selects Regular or Bold for text style.
Can only be set when Standard is selected for Font.
■ Magnification
*2
Can only be set when Standard is selected for Font.
■ Align Text
Selects the text alignment in the horizontal direction from the following.
Left, Center, Right
For details, refer to Appendix “5 Text Alignment” on page A-7.
■ Text Color
Selects the color of displayed text (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
*1 HG2J-7U only
*2 HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F/-5T, HG1G/1P only
Model Font Size
HG2J-7U Western, 7-Segment 8 to 512
HG5G/4G/3G/2G-V, HG4G/3G,
HG2G-5F/-5T, HG1G/1P
Standard 8x16, 16x16
Stroke, 7-Segment 8 to 128
W, H: Selects text magnification (0.5, 1 to 8).
