WindO/I-NV4 User’s Manual 11-11
1 Bar Chart
11
Charts

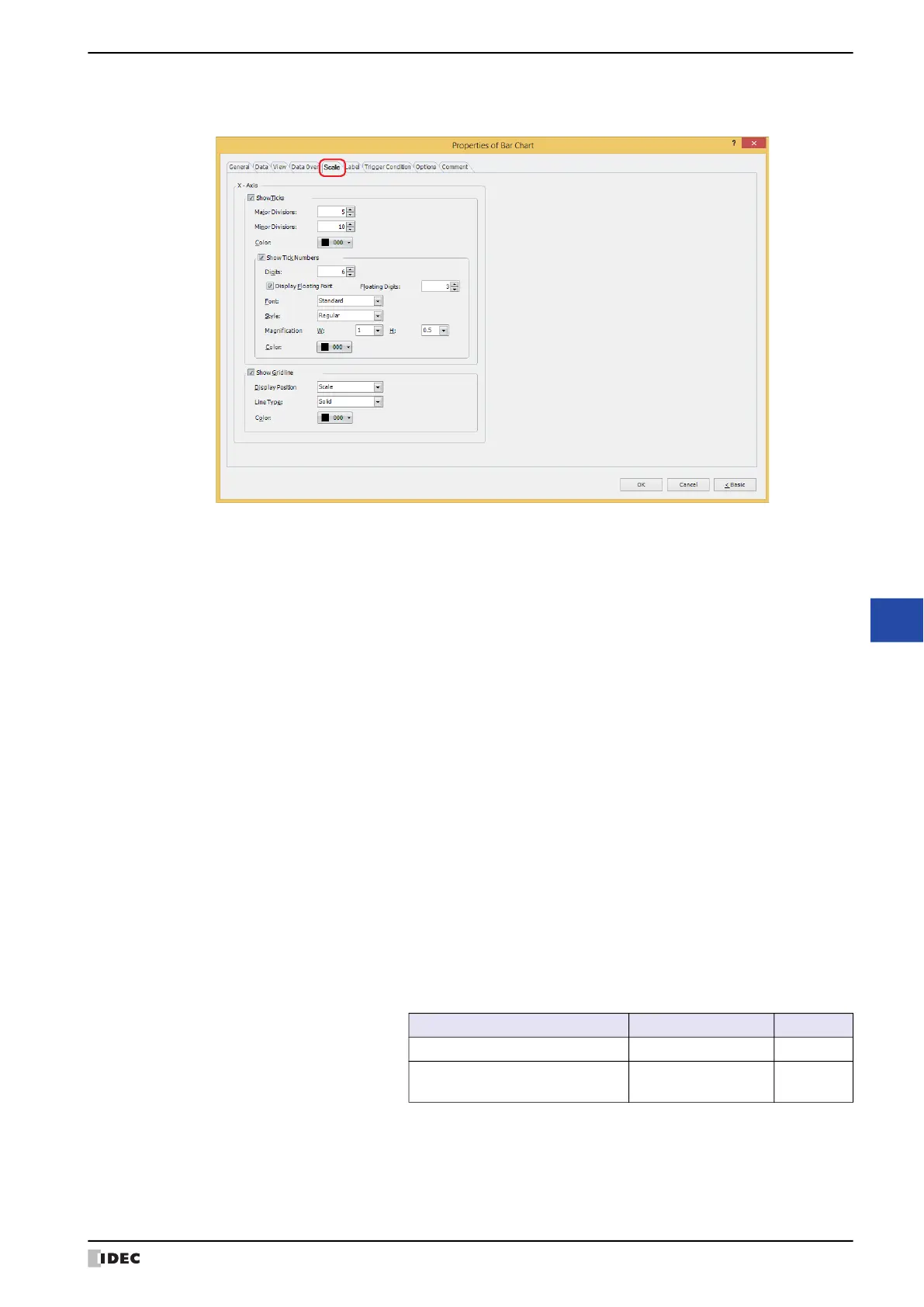

● Scale Tab
The Scale tab is displayed in Advanced mode.
The options on the Scale tab vary based on the type selected with Chart Type on the General tab.
Horizontal Bar, Horizontal Peak: X-Axis
Vertical Bar, Vertical Peak: Y-Axis
■ Show Ticks
Select this check box to display a scale on a chart.
*1 HG2J-7U only
*2 HG5G/4G/3G/2G-V, HG4G/3G, HG2G-5F/-5T, HG1G/1P only
Major Divisions: Enter the number of major scale divisions (1 to 20).
Minor Divisions: Enter the number of minor scale divisions (1 to 20).
Color: Selects the color of scales (color: 256 colors, monochrome: 16 shades).
Click Color to display the Color Palette. Select a color from the Color Palette.
Show Tick Numbers: Select this check box to display numbers along the scale.
Digits: Sets the number of digits to be displayed (1 to 10).
Can only be set when Float32(F) is selected for Data Type under the
General tab.
Display Floating Point: Select this check box to display a floating point along the scale.
Can only be set when Float32(F) is selected for Data Type under the
General tab.
Floating Digits: Sets the number of digits for the fractional parts of numbers (1 to 8)
from the number of digits specified for Digits.
Can only be set when the Display Floating Point check box is selected.
Font: Selects the font used for displayed text from the following.
Western
*1
, Standard
*2
, Stroke
*2
, 7-Segment
The characters that can be displayed depend on the font. For details,
refer to Chapter 2 “1.2 Available Text” on page 2-6.
Style
*2
:
Selects Regular or Bold for the character style to be displayed.
Can only be set when Standard is selected for Font.
Size: Specifies the text size to be displayed. The fonts and sizes that can be
set vary based on the model.
Model Font Size
HG2J-7U Western, 7-Segment 8 to 512
HG5G/4G/3G/2G-V, HG4G/3G,
HG2G-5F/-5T, HG1G/1P
Stroke, 7-Segment 8 to 128
To Next Page
