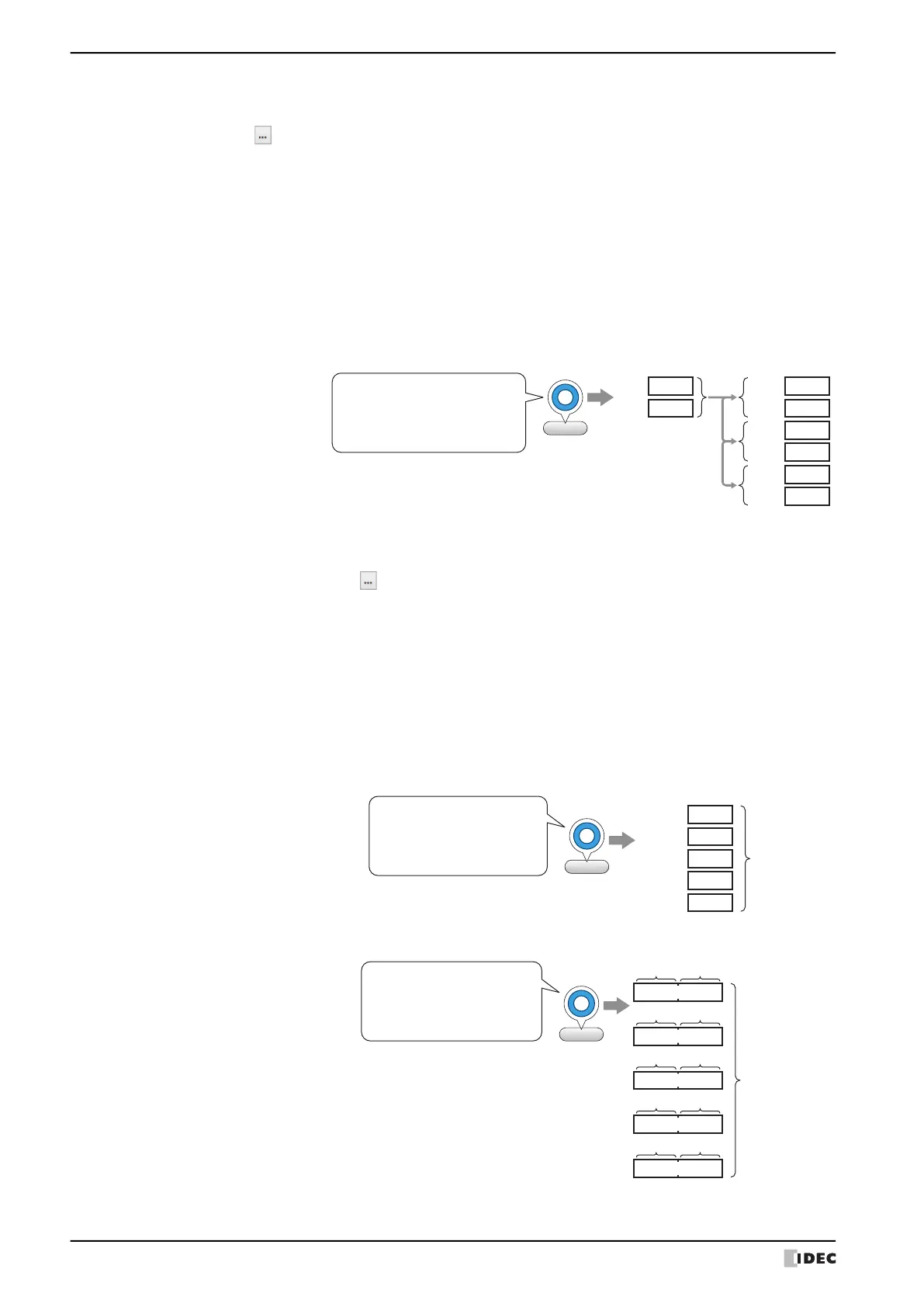

2 Word Write Command
12-14 WindO/I-NV4 User’s Manual
■ Destination Device Address
*1 Advanced mode only
Device Address: Use a value of device address.
Specify the device address.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter
2 “5.1 Device Address Settings” on page 2-70.
Use Reference Device Address
*1
:
Select this check box and specify a device address to change the
source word device according to the value of the specified device
address.
This setting is enabled only if Action Mode is set to Move.
For details, refer to Chapter 2 “Indirect Read and Indirect Write
Settings” on page 2-5.
Transfer
*1
Specify the number of word devices (1 to 64) to transfer.
This setting is enabled only if Action Mode is set to Move.
Example: If Transfer is set to 2 and Write is set to 3, the
same data in 2 continuous word device addresses will
be written to the destination device address 3 times.
:
Source Data (Device Address): LDR0
Write: 3
999LDR0
Destination Device Address: D100
D100
D101
D102
D103
Transfer: 2
1000LDR1
D104
D105
999
1000
999
1000
999
1000
Condition
SatisfiedSatisfiedSatisfied
Destination Device Address: Specify the destination word device.
Click to display the Tag Editor. For the device address configuration procedure,
refer to Chapter 2 “5.1 Device Address Settings” on page 2-70.
Use Reference Device Address
*1
:
Select this check box and specify a device address to change the destination word
device according to the value of the specified device address.
This setting is enabled only if Action Mode is set to Move.
For details, refer to Chapter 2 “Indirect Read and Indirect Write Settings” on page
2-5.
Write
*1
Specify the number of word devices (1 to 64) at the destination.
For Move, specify how many times to write.
This setting is enabled only if Action Mode is set to Set, Move, or Momentary.
Example: If Data Type is set to UBIN16(W) and Write is set to 5, the same
data will be written to 5 continuous word addresses.
If Data Type is set to UBIN32(D) and Write is set to 5, the same
data will be written to a total of 10 word addresses (2 words 5 times).
:
Destination Device Address: LDR10
Write: 5
Data Type: UBIN16(W)
Source Data (Value): 12345
12345LDR10
12345LDR11
12345LDR12
12345LDR13
12345LDR14
5 words
Condition
Satisfied
Satisfied
Destination Device Address: LDR10
Write: 5
Data Type: UBIN32(D)
Source Data (Value): 987654
LDR10
987654
LDR11
LDR12
987654
LDR13
LDR14
987654
LDR15
LDR16
987654
LDR17
LDR18
987654
LDR19
2 words x 5
Condition
SatisfiedSatisfiedSatisfied
