6 Multi-Command
12-42 WindO/I-NV4 User’s Manual

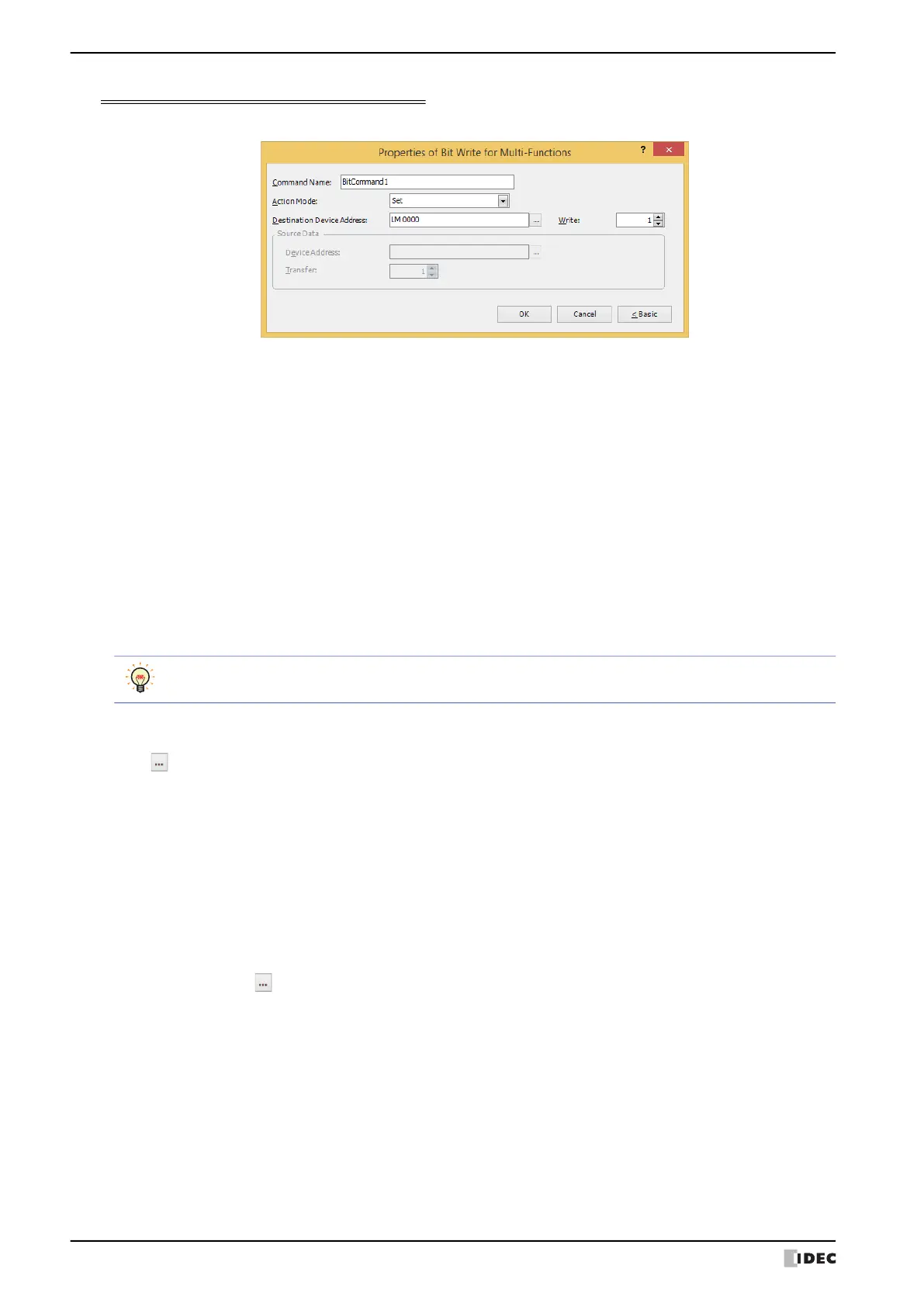

Properties of Bit Write for Multi-Functions Dialog Box
Sets the Bit Write command for the Multi-Command.
■ Command Name
Enter a name for the command. The maximum number is 20 characters.
■ Action Mode
Select the action to perform when the trigger condition is satisfied from the following:
■ Destination Device Address
Specify the destination bit device.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-70.
■ Write
*1
Specify the number of bit devices (1 to 64) at the destination.
This setting is enabled only if Action Mode is set to Set or Reset. For details, refer to “Write
*1
” on page 12-5.
■ Source Data
Specifies the device address where the data to be written is stored.
This setting is enabled only if Action Mode is set to Move. For details, refer to “Source Data” on page 12-5.
*1 Advanced mode only
Set: Writes a 1 to the specified bit device when the trigger condition is satisfied.
Reset: Writes a 0 to the specified bit device when the trigger condition is satisfied.
Set & Reset: Writes a 1 to the specified bit device when the trigger condition is satisfied.
When the trigger condition is no longer satisfied, a 0 is written to the specified bit device.
Toggle: Toggles the value of the specified bit device when the trigger condition is satisfied.
If the value of the bit device is 0 it changes to 1, and vice versa.
Move: This function writes the value in the source bit device to the value in the destination bit device
when the trigger condition is satisfied.
For details about the Action Mode, refer to “Action Mode” on page 12-4. However, Set & Reset for the
Multi-Command has the same function as Momentary for the Bit Write Command.
Device Address: Specify the source bit device.
Click to display the Tag Editor. For the device address configuration procedure, refer to Chapter
2 “5.1 Device Address Settings” on page 2-70.
Transfer: Specify the number of bit devices (1 to 64) to move.
