TEDS 233
imc CANSAS Users Manual - Doc. Version 1.9 - 05.12.2014© 2014 imc Meßsysteme GmbH

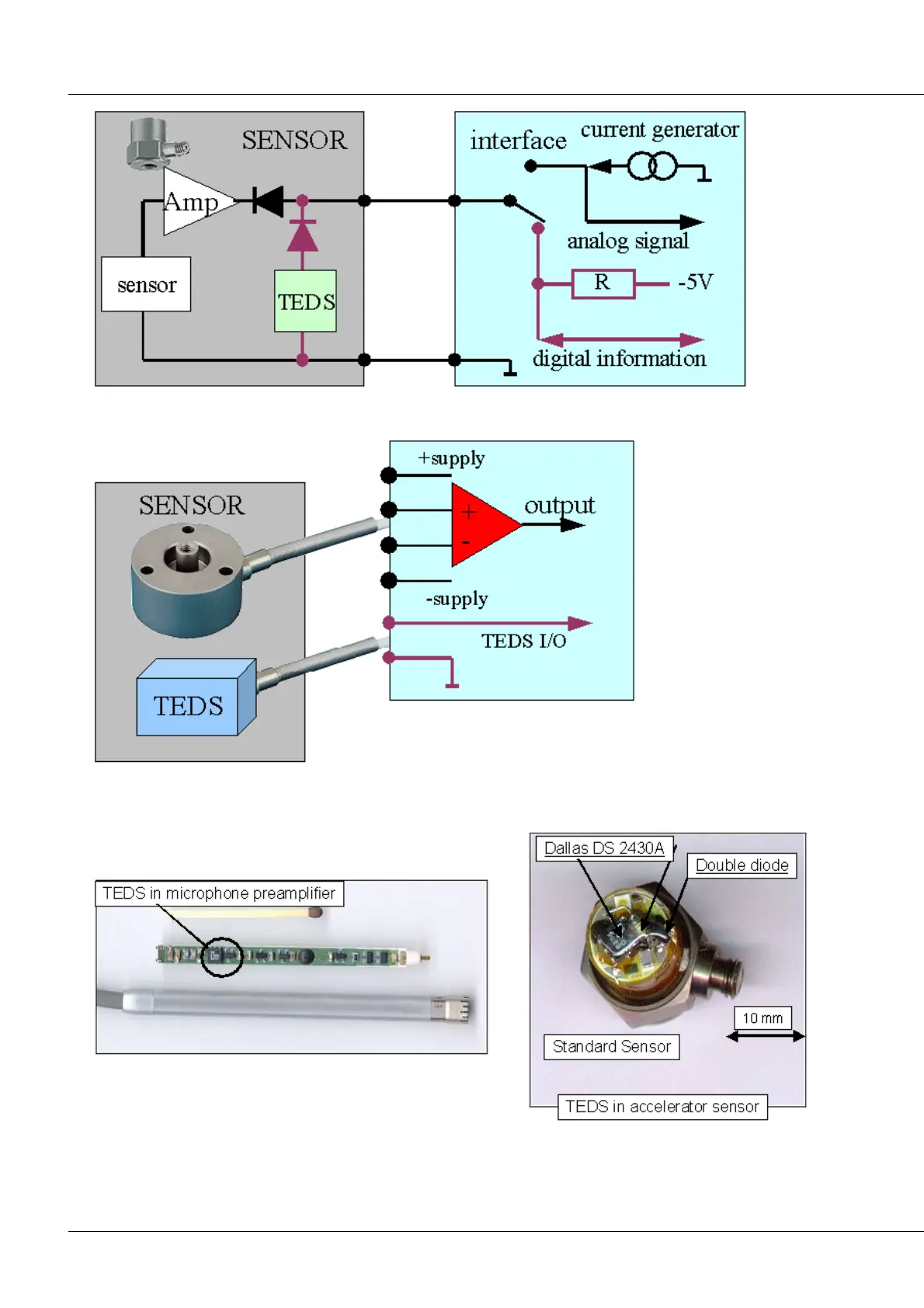

A Class I Mixed Mode Interface receives/ sends TEDS data and analog signals on the same line
A Class II Mixed Mode Interface receives/ sends TEDS data and analog signals on different
lines. The sensor is not influenced.
The digital part of a TEDS interface is based on the 1-wire protocol of the company Maxim/Dallas, a simple serial
Master-Slave protocol. The sensors could be for instance the EEPROMs – DS2430 (256 b) and DS2433 (4 Kb).
