CAN-Bus connectors 531
imc CANSAS Users Manual - Doc. Version 1.9 - 05.12.2014© 2014 imc Meßsysteme GmbH

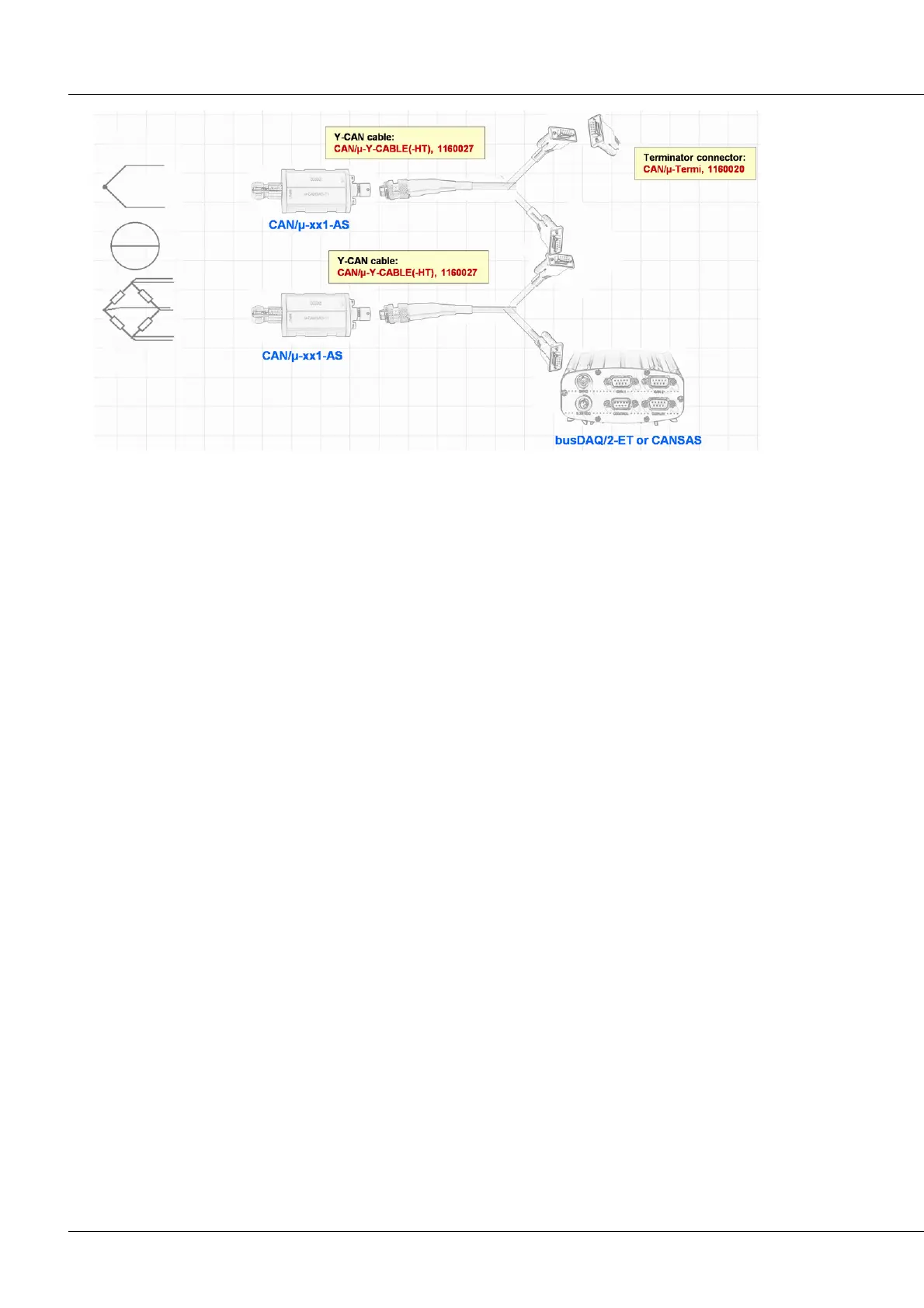

µ-CANSAS connecting 1-channel modules in series
Order code: CAN/µ-CABLE-1 Art. # M.1160015
Type 1 CAN connection cable: From 6-pin female AS608-35SA on device side to 9-pin DSUB-socket;
shielded, 1,5 m. Temperature range: -15 °C … 60 °C. For direct connection of imc µ-CANSAS-xx-AS(T) and
µ-HUB4-AS (µimc CANSAS connected via male CAN-connector, if connected at CAN IN socket [right side])
to the imc CAN-interface, if the module is supplied via the CAN-Bus.
Order code: CAN/µ-CABLE-2 Art. # M. 1160016
Type 2 CAN connection cable: From 6-pin female AS608-35SA on device side to 9-pin DSUB-socket and 4-
pin Phoenix socket; shielded, 1,5 m. Temperature range: -15 °C … 60 °C. For direct connection of imc µ-
CANSAS-xx-AS(T) and µ-HUB4-AS (µimc CANSAS connected via male CAN-connector, if connected at CAN
IN socket [right side]) to the imc CAN-interface and an external power supply.
Order code: CAN/µ-CABLE-MOD Art. # M. 1160017
CAN connection cable, shielded, 1,5 m, 6-pin female AS608-35SA to 6-pin male AS608-35PA.
Temperature range: -15 °C … 60 °C. For connection of a imc µ-CANSAS-x1-AST or imc µ-CANSAS-x4-AS
with a µHUB4-AS, or of a µ-HUB4-AS together with a imc µ-CANSAS-x4-AS.
Order code: CAN/µ-IC-B4 Art. # M. 1160018
Signal connector for imc µ-CANSAS-B4-AS, 37-pin AS614-35PN
Order code: CAN/µ-IC-V4 Art. # M. 1160019
Signal connector for imc µ-CANSAS-V4-AS, 22-pin AS612-35PN
Order code: CAN/µ-TERMI Art. # M. 1160020
CAN-Bus terminator connector, 6-pin male AS608-35PN, internally terminated for connecting the CAN-
Bus at the female CAN terminals of imc µ-CANSAS-V4-AS, imc µ-CANSAS-B4-AS, imc µ-CANSAS-T4-AS, µ-
HUB4-AS (if connected at CAN OUT socket [left side]).
