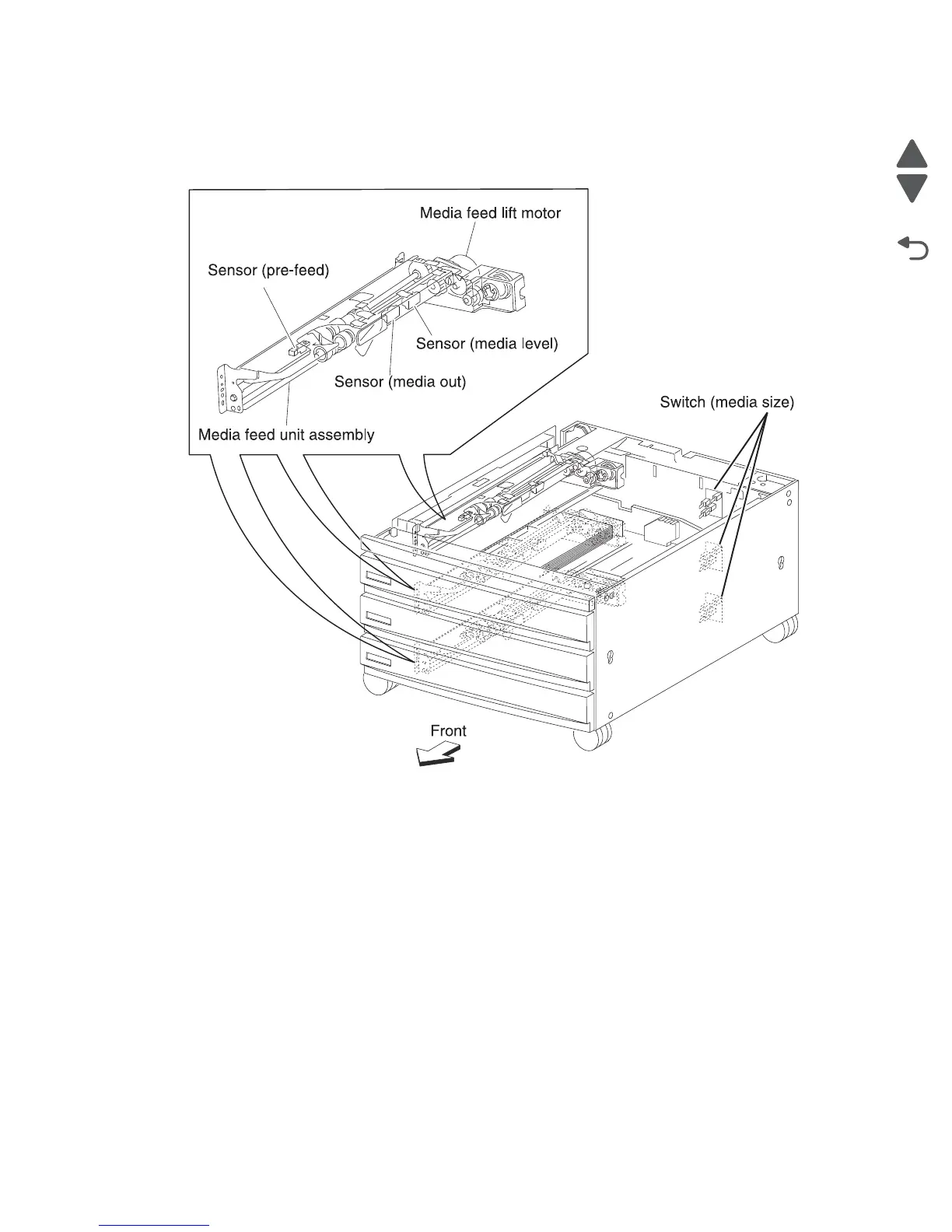

This sensor detects by the actuator position whether media in the media tray assembly is lifted. When the flag of
the actuator leaves the sensor (media level) sensing area, the sensor detects that the media has been lifted.
Main components
Switch (tray module left door interlock)
The switch (tray module left door interlock) detects open/close of the tray module left door assembly.
Sensor (tray 2 feed-out)
The sensor (tray 2 feed-out) detects media fed from trays 2, 3, or 4.
Sensor (tray 3 feed-out)
The sensor (tray 3 feed-out) detects media fed from the tray 3 or tray 4.
Sensor (tray 4 feed-out)
The sensor (tray 4 feed-out) detects media fed from the tray 4.
Tray module media transport roll assembly
