Lexmark X945e MFP 7510 series User Manual

Repair information 4-253
7510
Go Back
Previous
Next
1X 500-sheet drawer (1TM)—one-way 22 tooth removal
1. Remove the media tray assembly.
2. Remove the feed roll. See “1X 500-sheet drawer (1TM)—feed roll removal” on page 4-251.
3. Remove the feed roll one-way clutch. See “1X 500-sheet drawer (1TM)—feed roll one-way clutch
removal” on page 4-252.

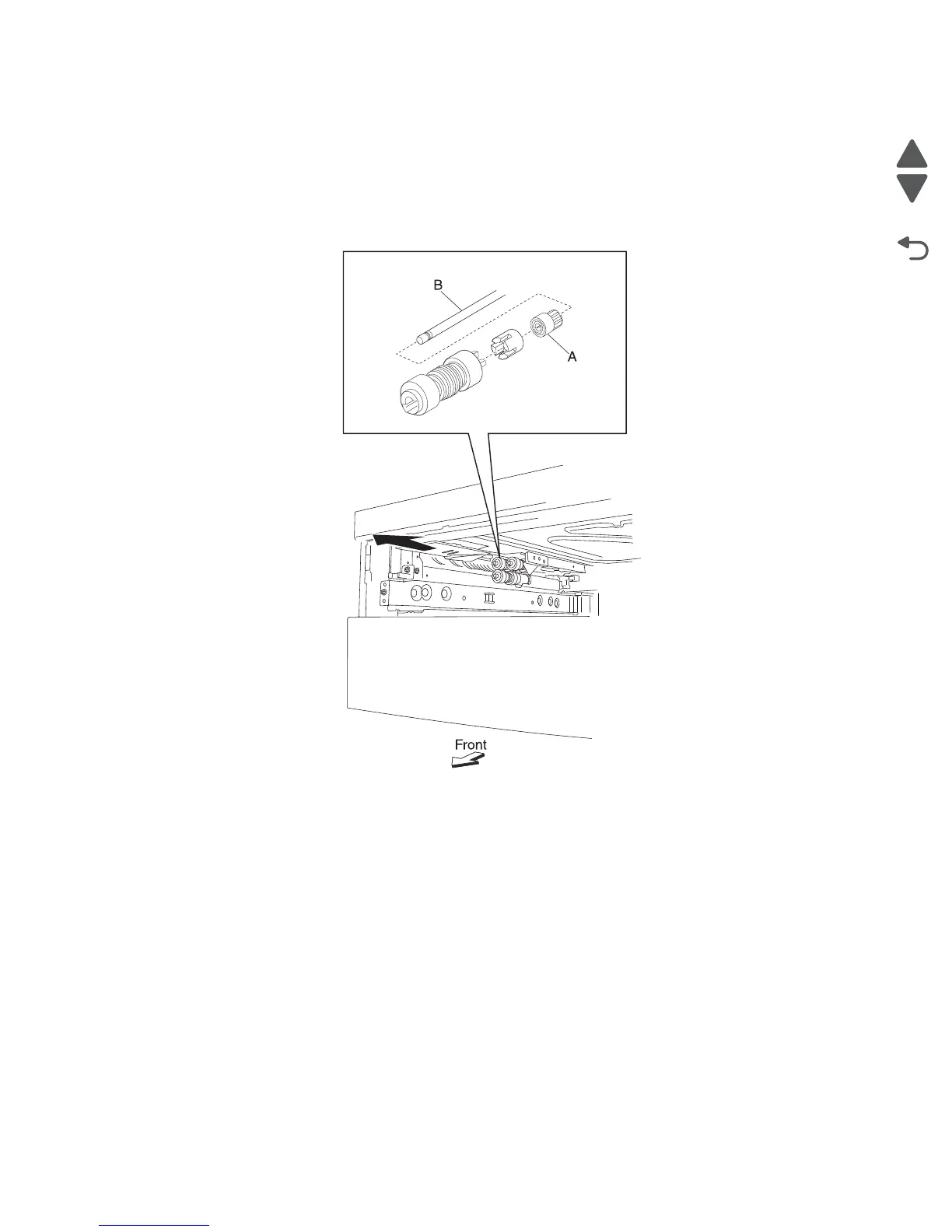

4. Remove the feed roll one-way gear 22 tooth (A).
