2000-sheet dual input (TTM)—media out actuator removal
1. Remove the tray module left cover. See “2000-sheet dual input (TTM)— tray module left cover removal”
on page 4-174.
2. Remove the TTM media tray 3 assembly. See “2000-sheet dual input (TTM)—TTM media tray 3
assembly removal” on page 4-178.
3. Remove the TTM media tray 4 assembly. See “2000-sheet dual input (TTM)—TTM media tray 4
assembly removal” on page 4-177.
4. Remove the tray 4 media transport assembly. See “2000-sheet dual input (TTM)—TTM tray 4 media
transport assembly removal” on page 4-182.
5. Remove the media feed unit assembly. See “2000-sheet dual input (TTM)—media feed unit assembly 2
removal” on page 4-190, “2000-sheet dual input (TTM)—media feed unit assembly removal (tray 3)”
on page 4-190, or “2000-sheet dual input (TTM)—media feed unit assembly removal (tray 4)” on
page 4-186.

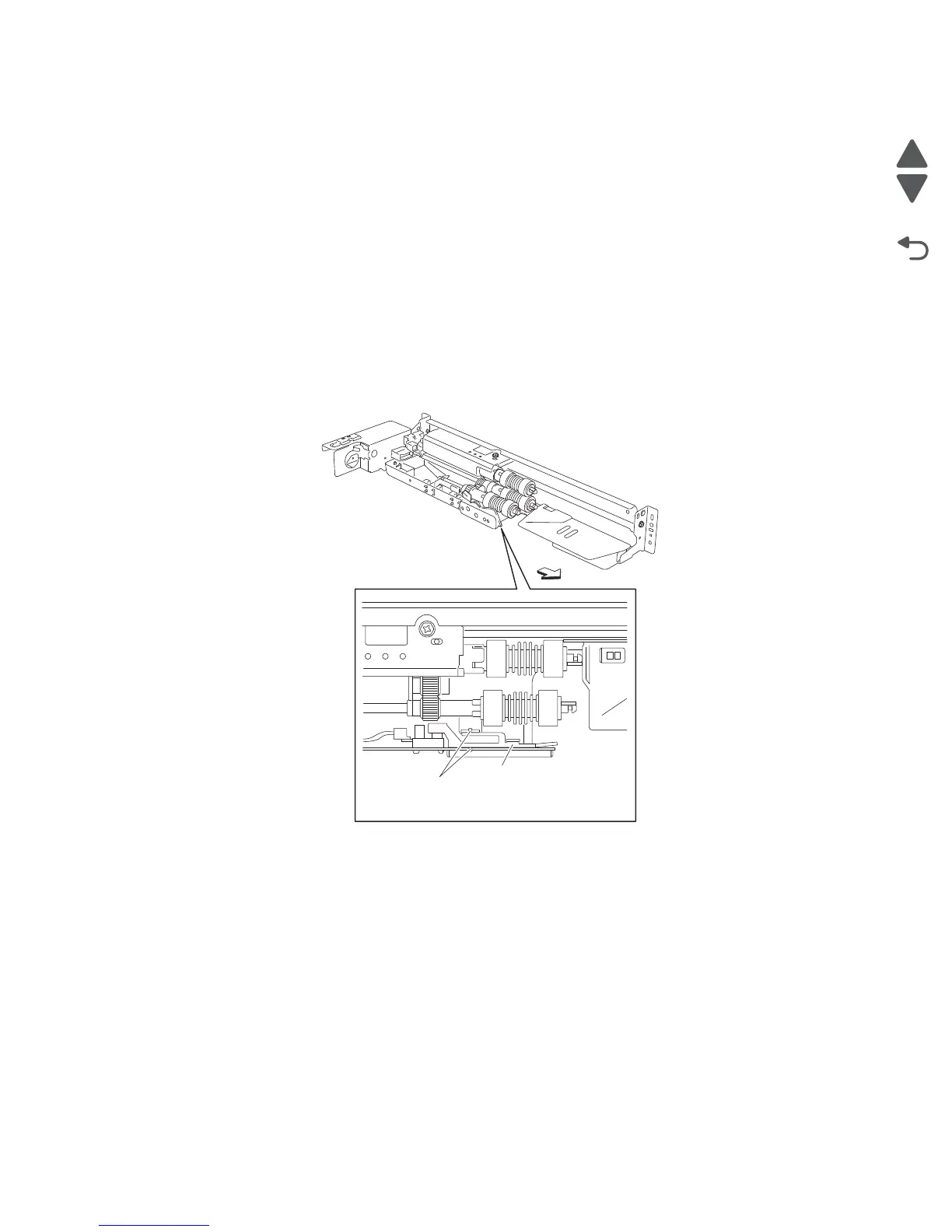

6. Release the two bosses on the media out actuator (A) from the media feed unit assembly.
7. Remove the media out actuator (A).
Front
Bosses
Lower view
A
