4-28 Service Manual
7510
Standard media exit shift assembly removal
1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5.
Warning: Ensure that the rear left middle cover is removed before removing the rear left upper cover, or
damage will occur.
2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6.
3. Remove the rear left upper cover. See “Rear left upper cover removal” on page 4-7.

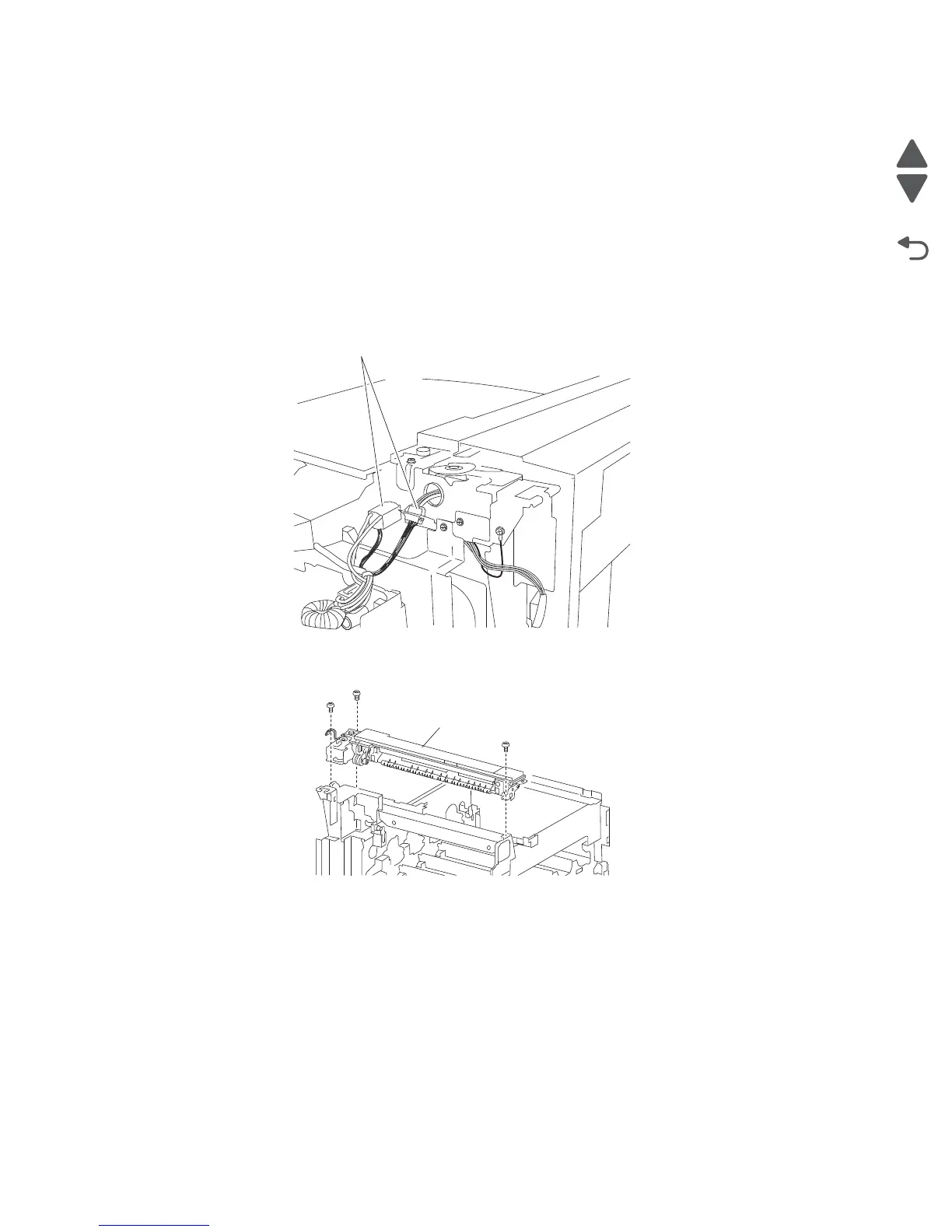

4. Disconnect the two connectors from the standard media exit shift assembly (A).
5. Remove the four screws securing the standard media exit shift assembly (A) to the machine.
6. Remove the standard media exit shift assembly (A) from the machine.
Standard media exit bin full actuator removal
1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5.
Warning: Ensure that the rear left middle cover is removed before removing the rear left upper cover, or
damage will occur.
2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6.
3. Remove the rear left upper cover. See “Rear left upper cover removal” on page 4-7.
4. Remove the screw securing the standard exit top cover (A) to the machine.
5. Gently lift the standard exit top cover (A) from the machine.
6. Remove the standard exit top cover (A) from the machine.
7. Remove the screw securing the bracket (B) to the machine.
8. Remove the bracket (B).
