Repair information 4-23
7510
Left transfer belt lift assembly removal
1. Remove the four PC cartridge unit. See “PC cartridge unit removal” on page 4-54
2. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5.
3. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6.
4. Remove the MPF feed unit assembly. See “MPF feed unit assembly removal” on page 4-8.
5. Remove the printer left door assembly. See “Printer left door assembly removal” on page 4-36.
6. Remove the registration / transport roll assembly. See “Registration / transport roll assembly removal”
on page 4-46.
7. Remove the front door assembly. See “Printer front door assembly removal” on page 4-3
8. Remove the waste toner bottle.
9. Remove the right cover assembly. See “Right cover assembly removal” on page 4-4.
10. Remove the transfer belt unit assembly. See “Transfer belt unit assembly removal” on page 4-16
11. Remove the front left cover. See “Front left cover removal” on page 4-9.

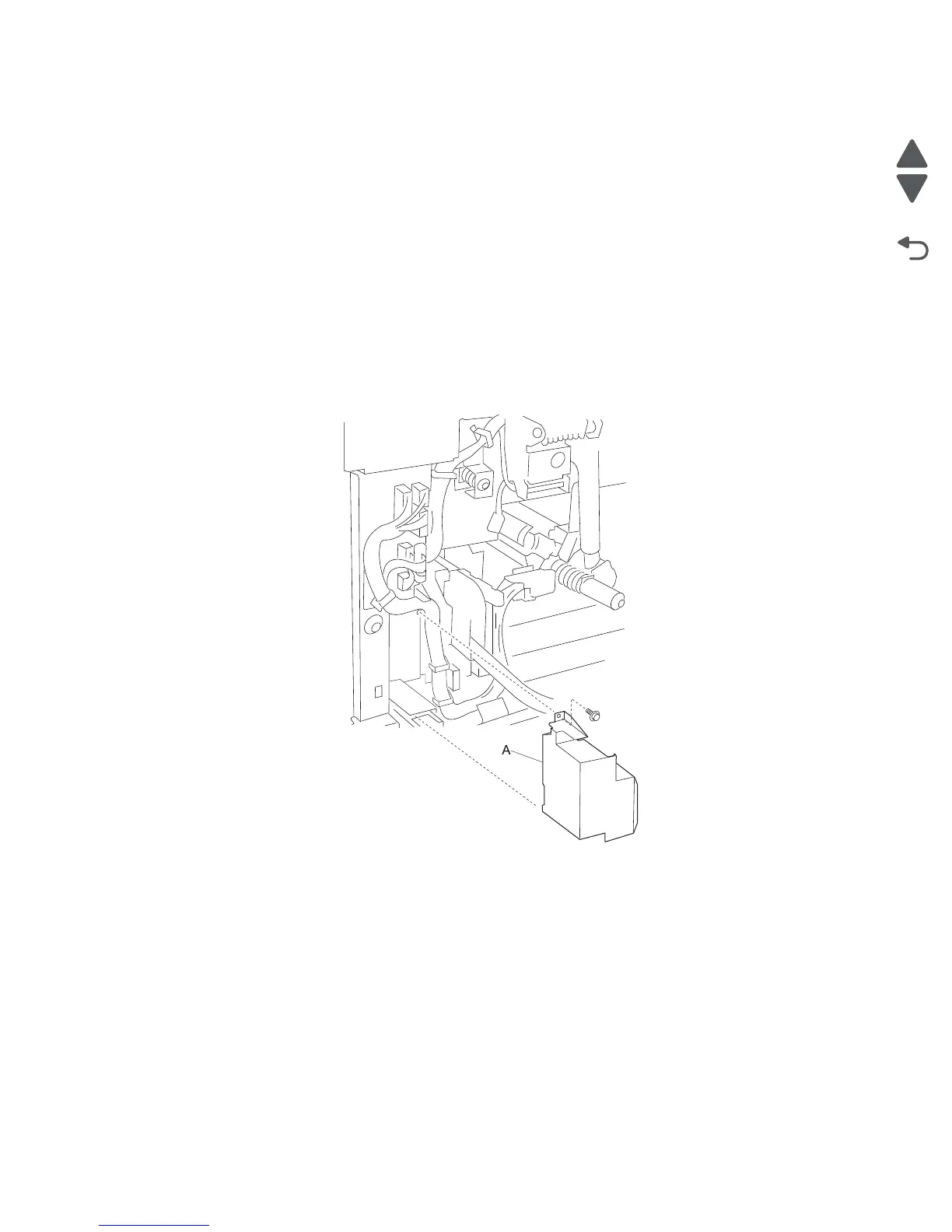

12. Remove the screw securing the plastic cover (A) to the machine.
13. Remove the plastic cover (A).
14. Remove the transfer belt lift handle assembly. See “transfer belt lift handle assembly removal” on
page 4-18.
15. Remove the waste toner agitator motor assembly. See “Waste toner agitator motor assembly removal”
on page 4-54.
Note: Ensure that the left transfer belt lift assembly is in the up position in order to remove the image
density sensor assembly.
16. Remove the image density sensor assembly. See “Image density sensor assembly removal” on
page 4-55.
17. Remove the K erase lamp assembly. “K erase lamp assembly removal” on page 4-76.
18. Removed the two screws securing the bracket (A) to the machine.
To Next Page
