Parts catalog 7-17
7510
Go Back
Previous
Next

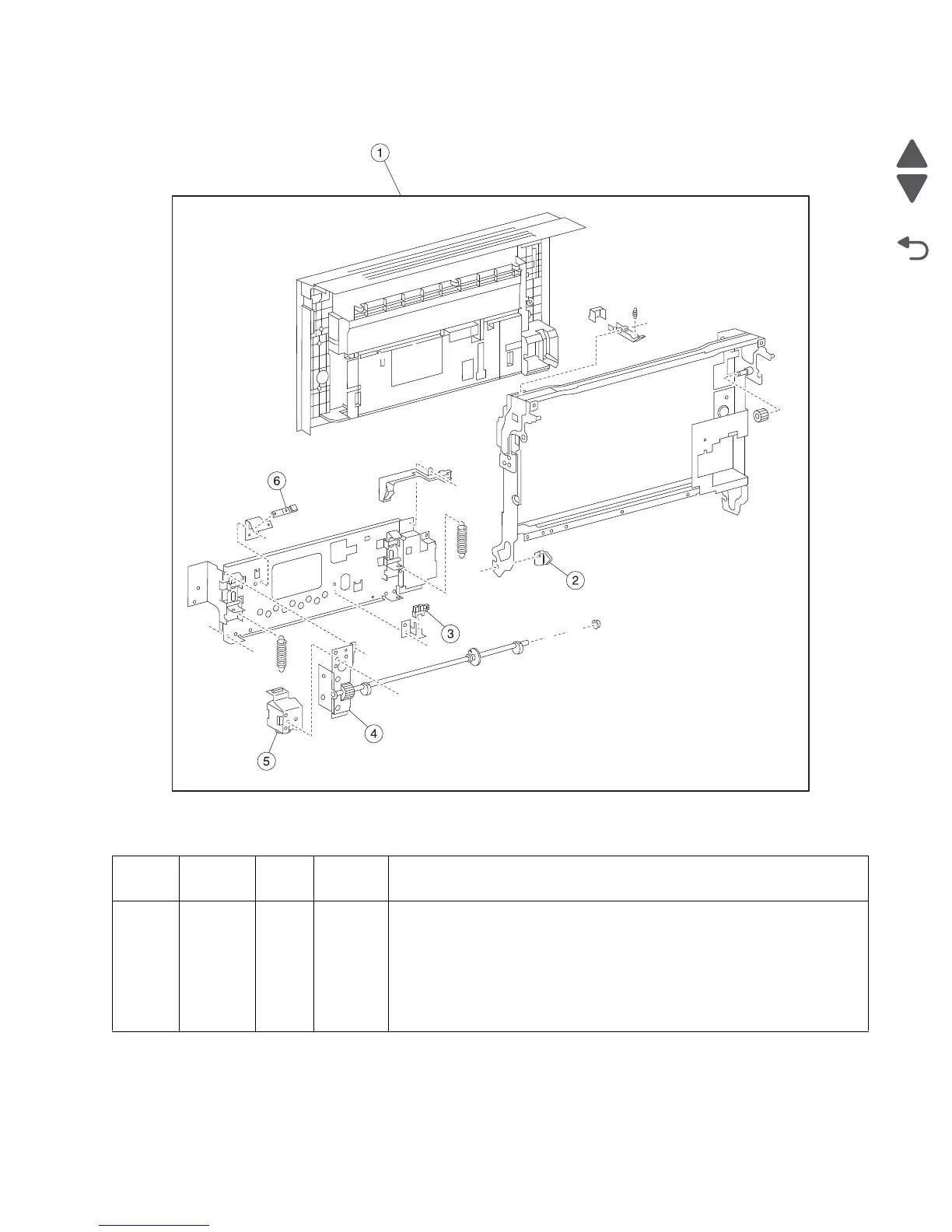

Assembly 15: Printer left door assembly 2
Asm-
index
Part
number
FRUs/
mach
Units/
FRU
Description
1 40X4078 1 1 Printer left door assembly (this comes assembled)
2 40X3704 1 1 Printer left door damper sector gear
3 40X3688 30 1 Sensor (2nd transfer roll retract HP)
4 40X3701 1 1 2nd transfer roll retract cam assembly
5 40X3702 1 1 2nd transfer retract motor assembly
6 40X3703 1 1 Sensor (media on belt)
