Repair information 4-137
7510

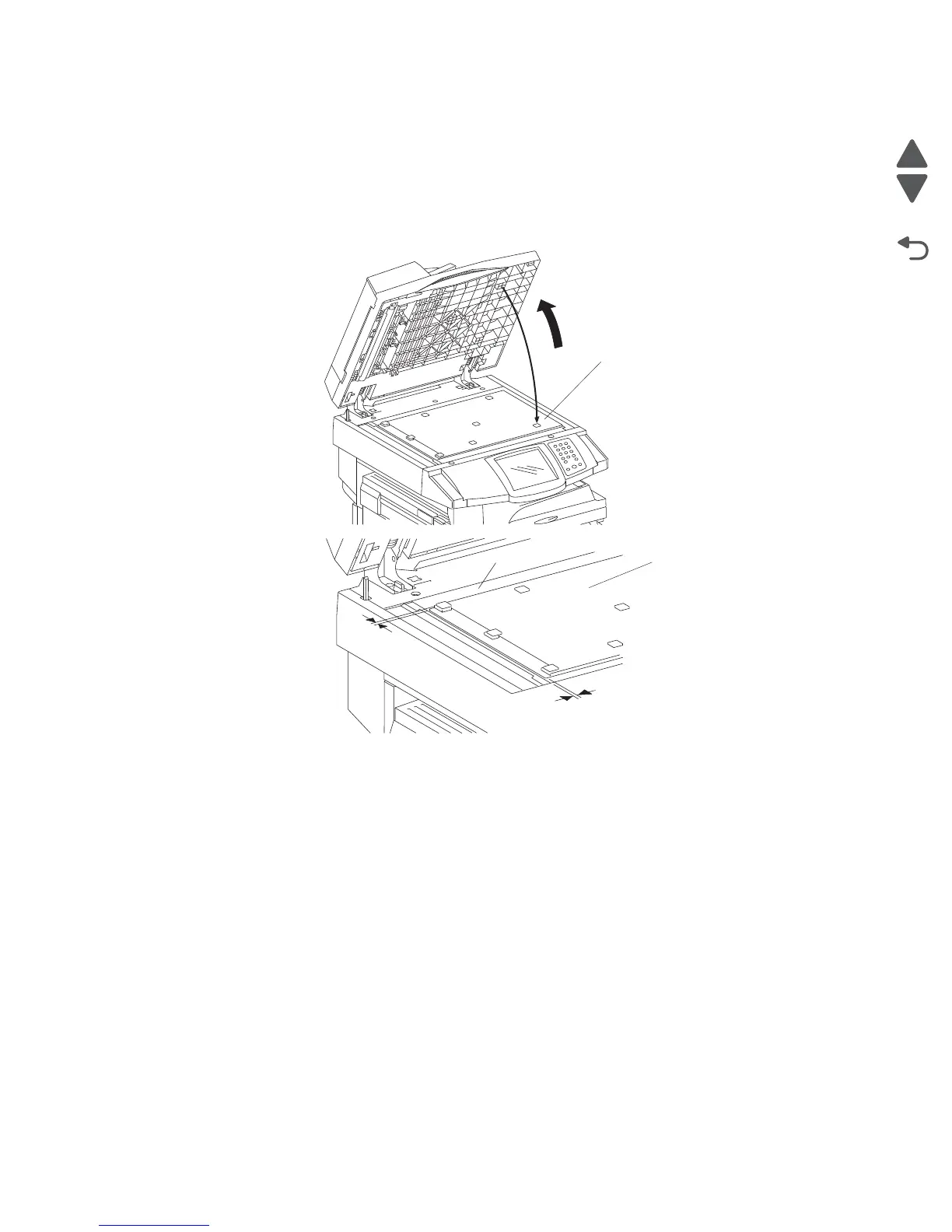

Platen cushion removal
1. Open the ADF unit assembly.
2. Gently pull off the platen cushion (A) from the ADF.
Note: Before reinstalling the platen cushion (A), position the ADF in its upright position, and place the
platen cushion (A) on the large platen glass (B) flush with the left and top edges. Gently close the ADF to
attach the platen cushion (A) to the ADF.
A
A
Platen guide
0.5+/-0.2mm
0.5+/-0.2mm
