Interconnect card assembly removal
Warning: In the event of replacement of any one of the following components:
• RIP card assembly
• Interconnect card assembly
Only replace one component at a time. Replace the required component, and perform a POR before replacing a
second component listed above. If this procedure is not followed, the printer will be rendered inoperable. Never
replace two or more of the components listed above without a POR after installing each one, or the printer will be
rendered inoperable.
Warning: Never install and remove components listed above as a method of troubleshooting components.
Once a component has been installed in a machine, it cannot be used in another machine. It must be returned to
the manufacturer.
1. Remove the RIP card assembly. See “RIP card assembly removal” on page 4-84.
Warning: Do not drop the RIP card assembly, or damage will occur.

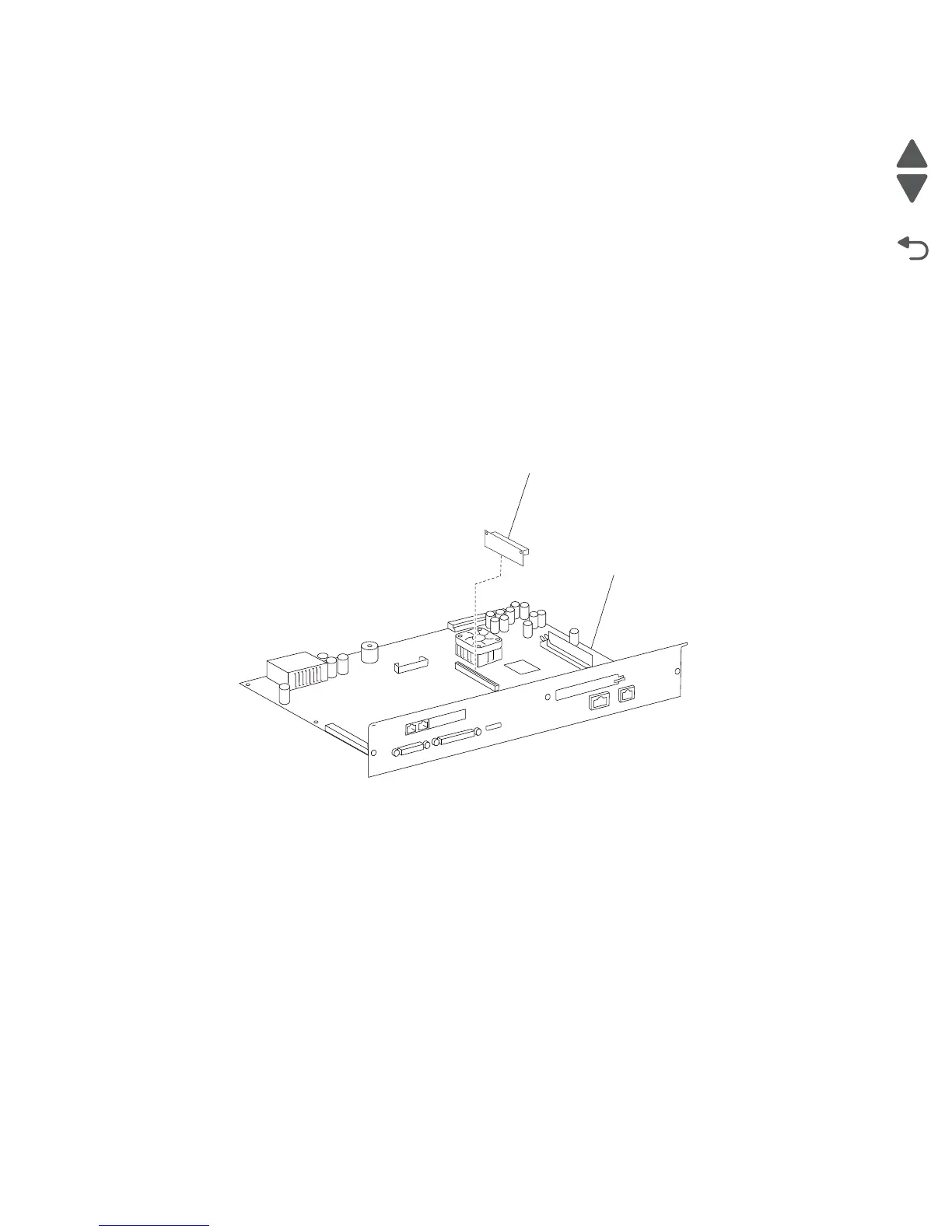

2. Gently pull the interconnect card assembly (A) from the RIP card assembly (B).
3. Remove the interconnect card assembly (A).
