Repair information 4-237
7510
Go Back
Previous
Next

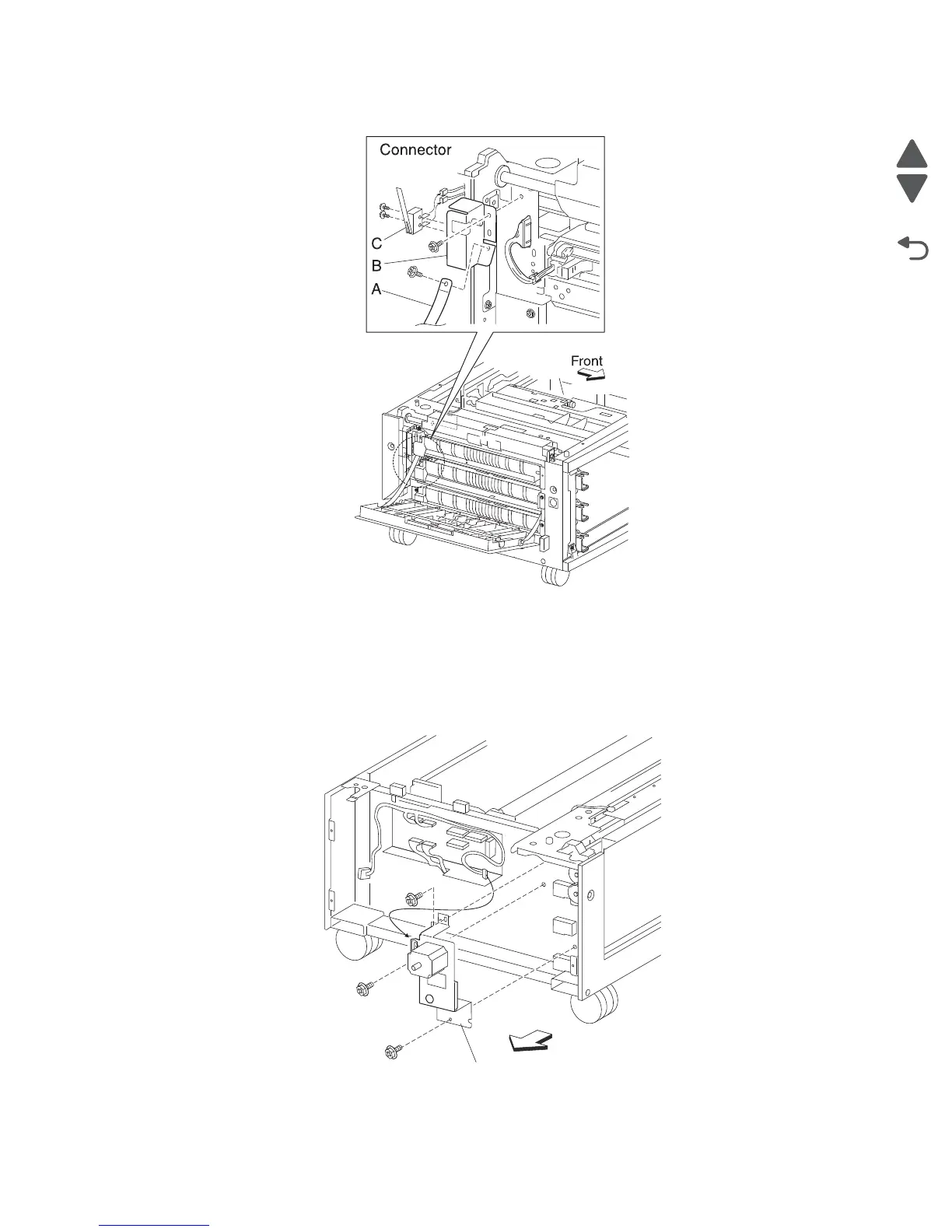

7. Remove the switch (tray module left door interlock) (C).
3X 500-sheet drawer (3TM)—tray module drive motor assembly removal
1. Remove the rear cover. See “3X 500-sheet drawer (3TM)—rear cover removal” on page 4-215.
2. Disconnect the connector from the tray module drive motor (A).
3. Remove the two screws securing the tray module drive motor (A) to the machine.
4. Remove the tray module drive motor (A).
Rear
A
