General information 1-29
7510
Charge

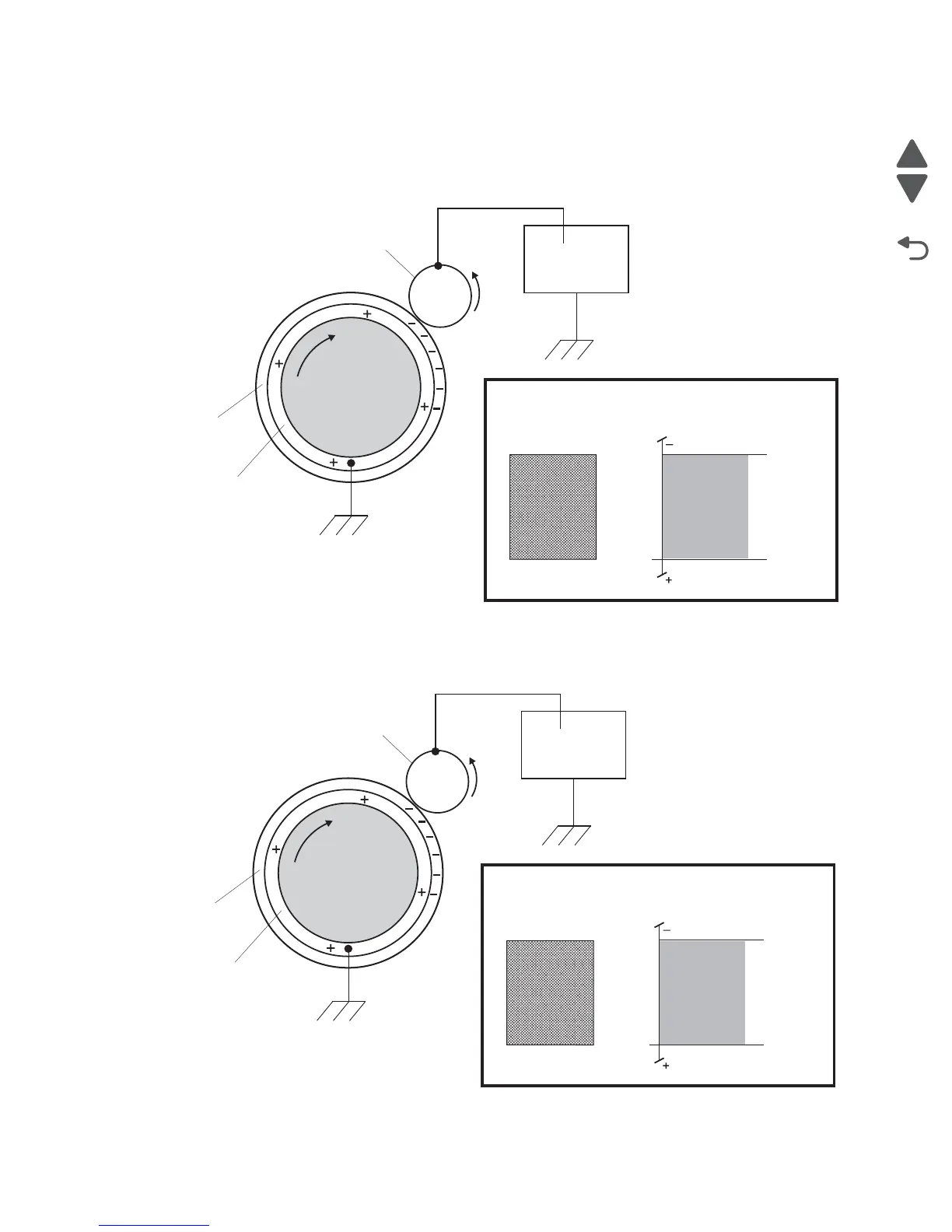

The Charge Roll places a uniform negative electrostatic charge on the surface of the drum. The drum surface is
made of a photoconductive material that holds an electrical charge as long as the drum remains in darkness.
Light striking the drum discharges the surface charge.
The charge roll is a conductive roll that is positioned slightly above the surface of the drum. The HVPS supplies
the charge roll with two voltages; a negative DC charge voltage and an AC discharge voltage that is used for
electrically cleaning the drum.
HVPS
(-VDC)
(-VDC)
Ground
Conductive Tube
Photoconductive
Surface
0V
-VDC value
DRUM
Drum Surface
Voltage
Drum Surface
Ground
Charge roll
HVPS
(-VDC)
(-VDC)
Ground
Conductive Tube
Photoconductive
Surface
0V
-VDC value
DRUM
Drum Surface
Voltage
Drum Surface
Ground
Charge roll
To Next Page
