Repair information 4-145
7510

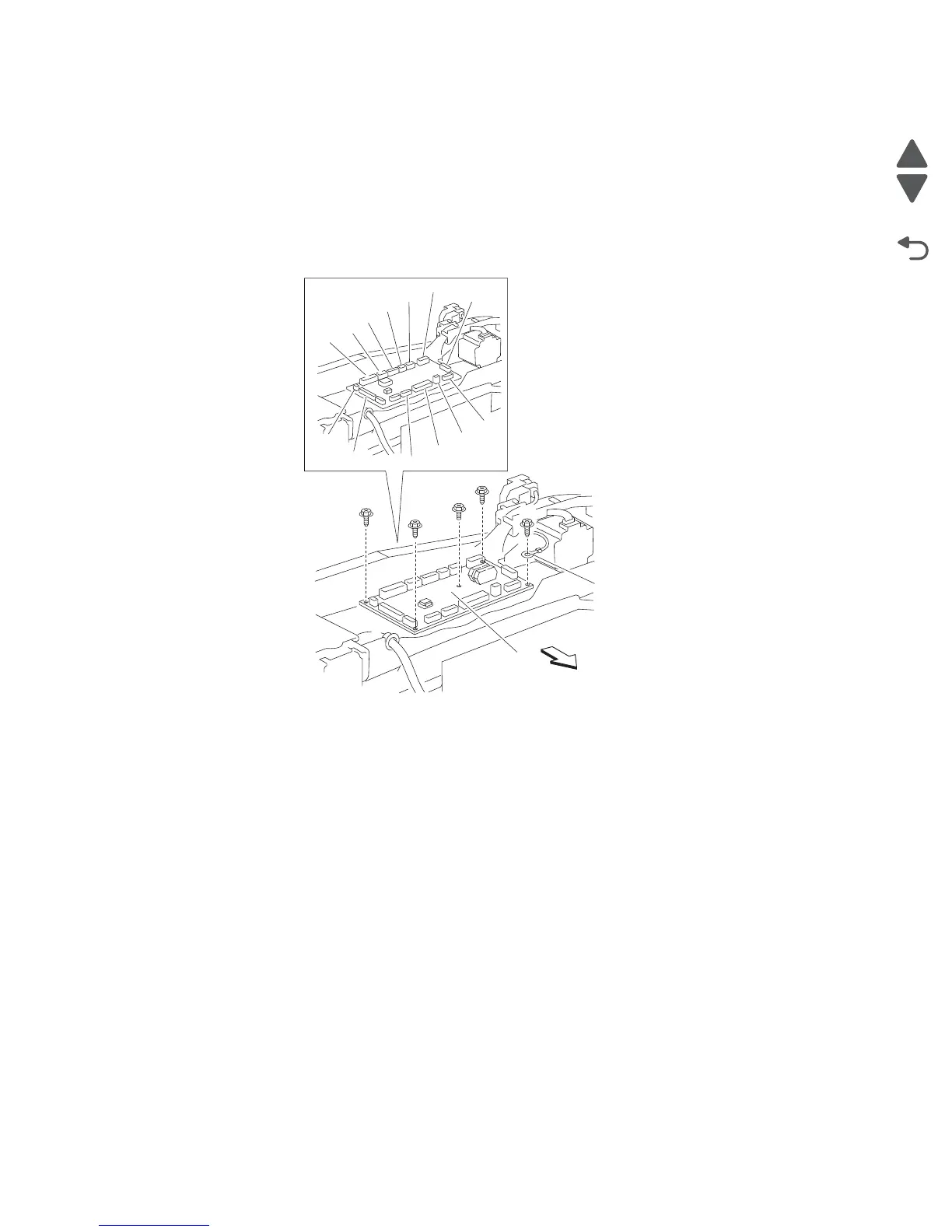

ADF controller card assembly removal
1. Remove the ADF rear cover. See “ADF rear cover removal” on page 4-138.
2. Disconnect all connectors from the ADF controller card assembly (A).
3. Remove the five screws securing the ADF controller card assembly (A).
4. Remove the ADF controller card assembly (A).
Replacement note: Ensure that all connections are properly reconnected.
Replacement note: Ensure that the ground wire is reconnected.
P760
P759
P758
P785
P761
P751
P752
P753
P754
P755
P786
P756
P757
A
Rear
Ground wire
