4-54 Service Manual
7510
Waste toner agitator motor assembly removal
1. Remove the printer front door assembly. See “Printer front door assembly removal” on page 4-3.
2. Remove the front left cover. See “Front left cover removal” on page 4-9.
3. Remove the waste toner cartridge cover. See “Waste toner cartridge cover removal” on page 4-49.
4. Remove the waste toner cartridge sensor assembly. See “Waste toner cartridge sensor assembly
removal” on page 4-49.
5. Remove the inner cover. See “Inner cover removal” on page 4-53.

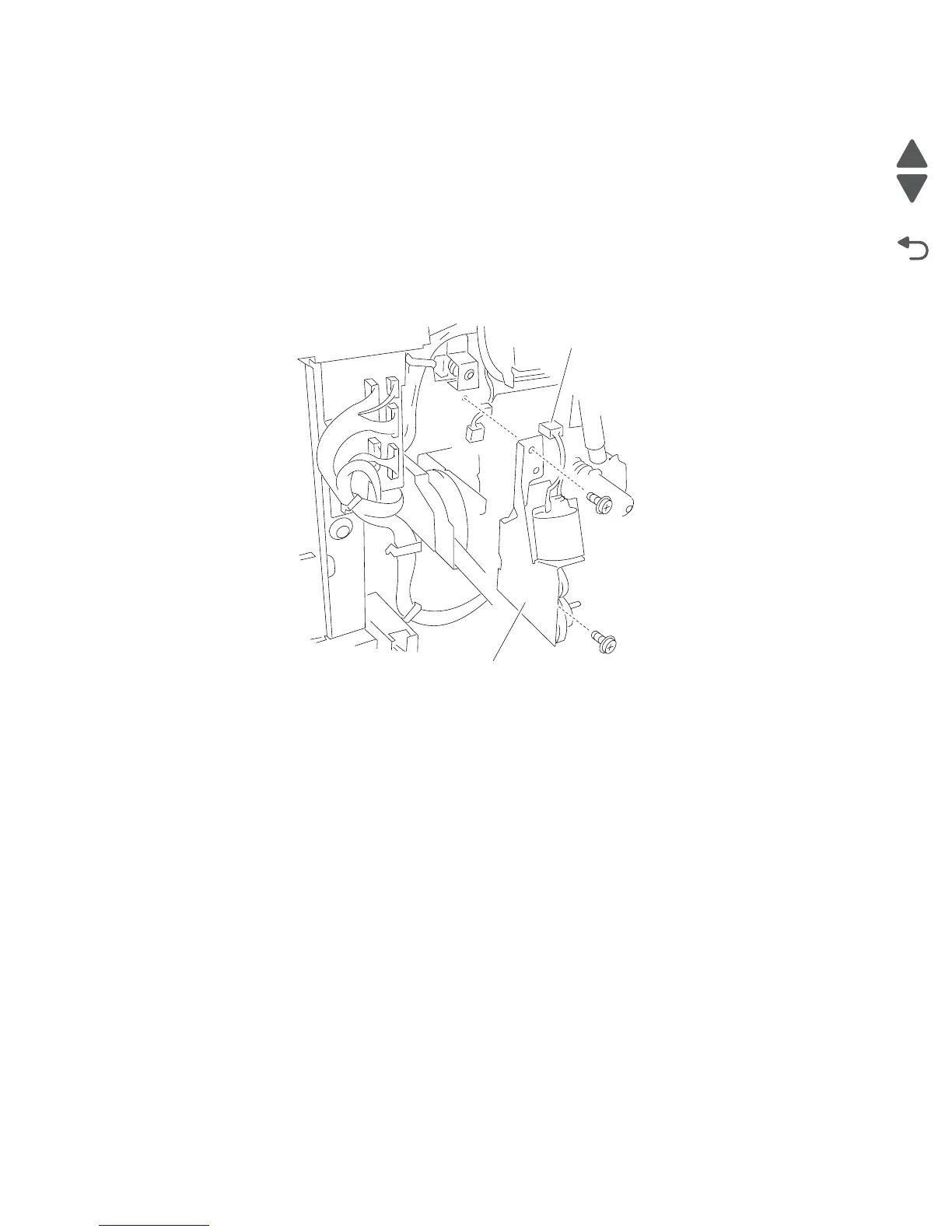

6. Disconnect the connector from the waste toner agitator motor assembly (A).
7. Remove the two screws securing the waste toner agitator motor assembly (A) to the machine.
8. Remove the waste toner agitator motor assembly (A).
PC cartridge unit removal
Note: The following procedure applies to the C, M, Y, and K PC cartridge units.
Warning: When removing or installing the PC cartridge units, do not touch the drum surfaces, or damage
will occur.
Warning: When removing the PC cartridge units, ensure that the drum surfaces are not exposed to any
sources of light, or damage will occur.
1. Open the printer front door.
2. Press the button, and raise the transfer belt lift latch assembly (A) to its upper-most position.
3. Lower the transfer belt lift handle (B) to its lower-most position.
4. Gently pull the appropriate PC cartridge assembly (B) out of the machine.
Warning: When placing the PC cartridge units on a level surface, ensure that no part of the OPC drum or
any roller comes into contact with the resting surface.
