4-246 Service Manual
7510

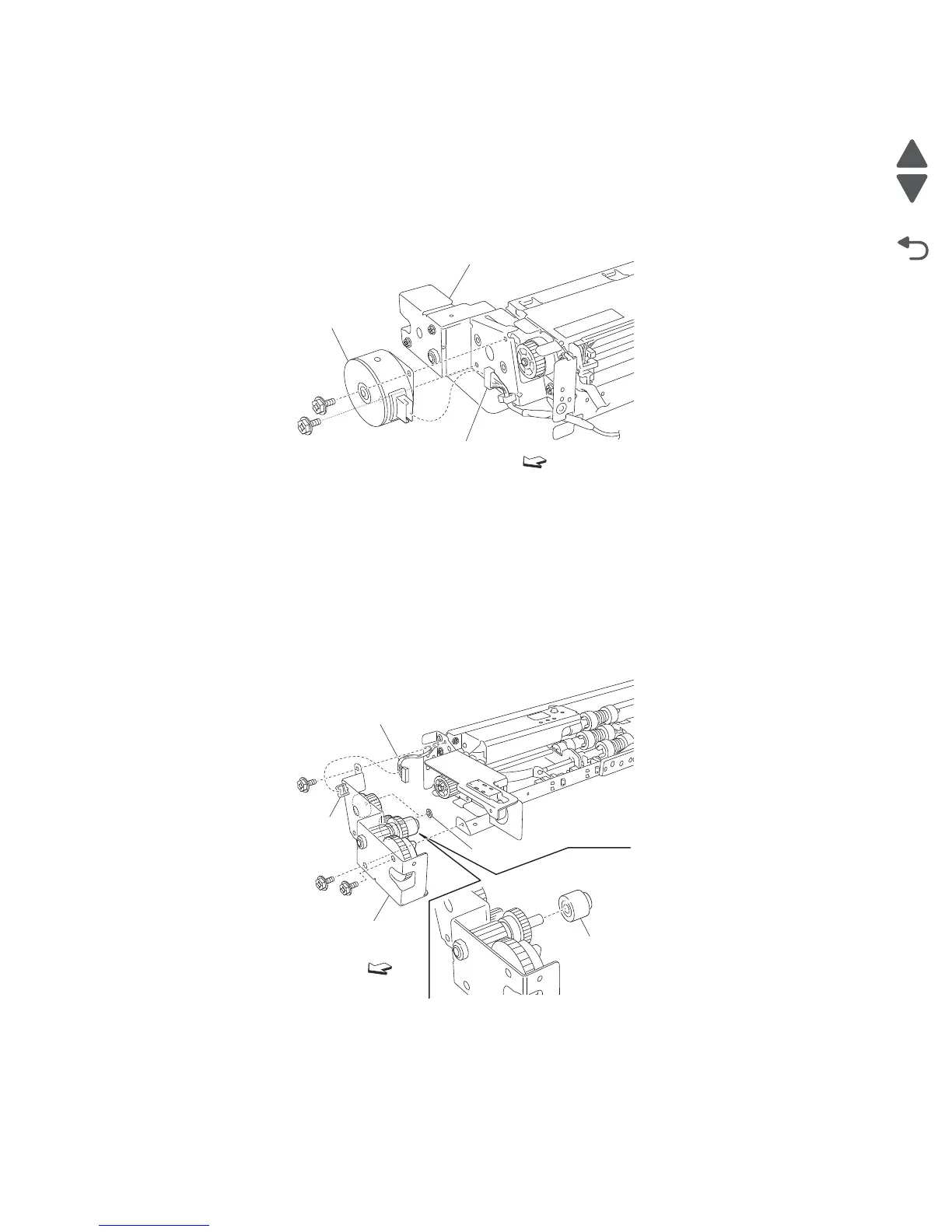

1X 500-sheet drawer (1TM)—media feed lift motor removal
1. Remove the media feed unit assembly. See “1X 500-sheet drawer (1TM)—media feed unit assembly
removal (tray 2)” on page 4-243.
2. Disconnect the harness from the media feed lift motor (A).
3. Remove the two screws securing the media feed lift motor to the media feed unit assembly (B).
4. Remove the media feed lift motor (B).
1X 500-sheet drawer (1TM)—one-way clutch / gear assembly removal
1. Remove the media feed unit assembly. See “1X 500-sheet drawer (1TM)—media feed unit assembly
removal (tray 2)” on page 4-243.
2. Remove the harness from the bracket (A).
3. Remove the three screws securing the bracket (A) to the media feed unit assembly.
4. Remove the bracket (A).
Note: The gears may become detached from the bracket (A).
5. Remove the tray lift one-way clutch (B).
To Next Page
