4-148 Service Manual
7510
Go Back
Previous
Next
Replacement note: Before reinstalling the rear bracket (E), replace any shims that were originally present.

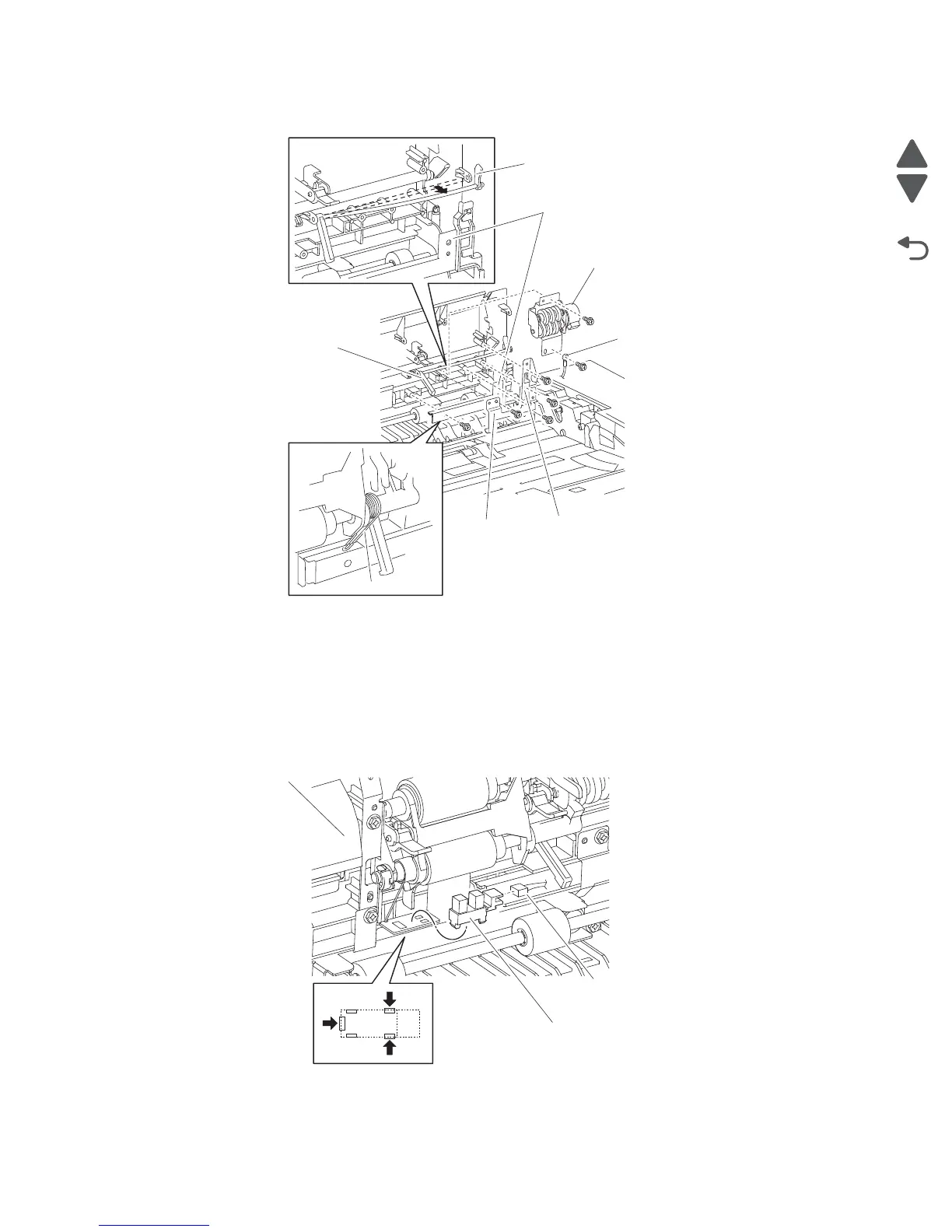

Sensor (pick roll position HP) removal
1. Open the ADF left cover assembly.
2. Remove the ADF left cover media guide. See “ADF left cover media guide removal” on page 4-151.
3. Disconnect the connector from the sensor (pick roll position HP) (A).
4. Release the hooks securing sensor (pick roll position HP) (A) to the ADF left cover assembly (B).
5. Remove the sensor (pick roll position HP) (A).
C
F
A
D
F
E
B
Spring
B
A
Connector
