4-238 Service Manual
7510
Go Back
Previous
Next

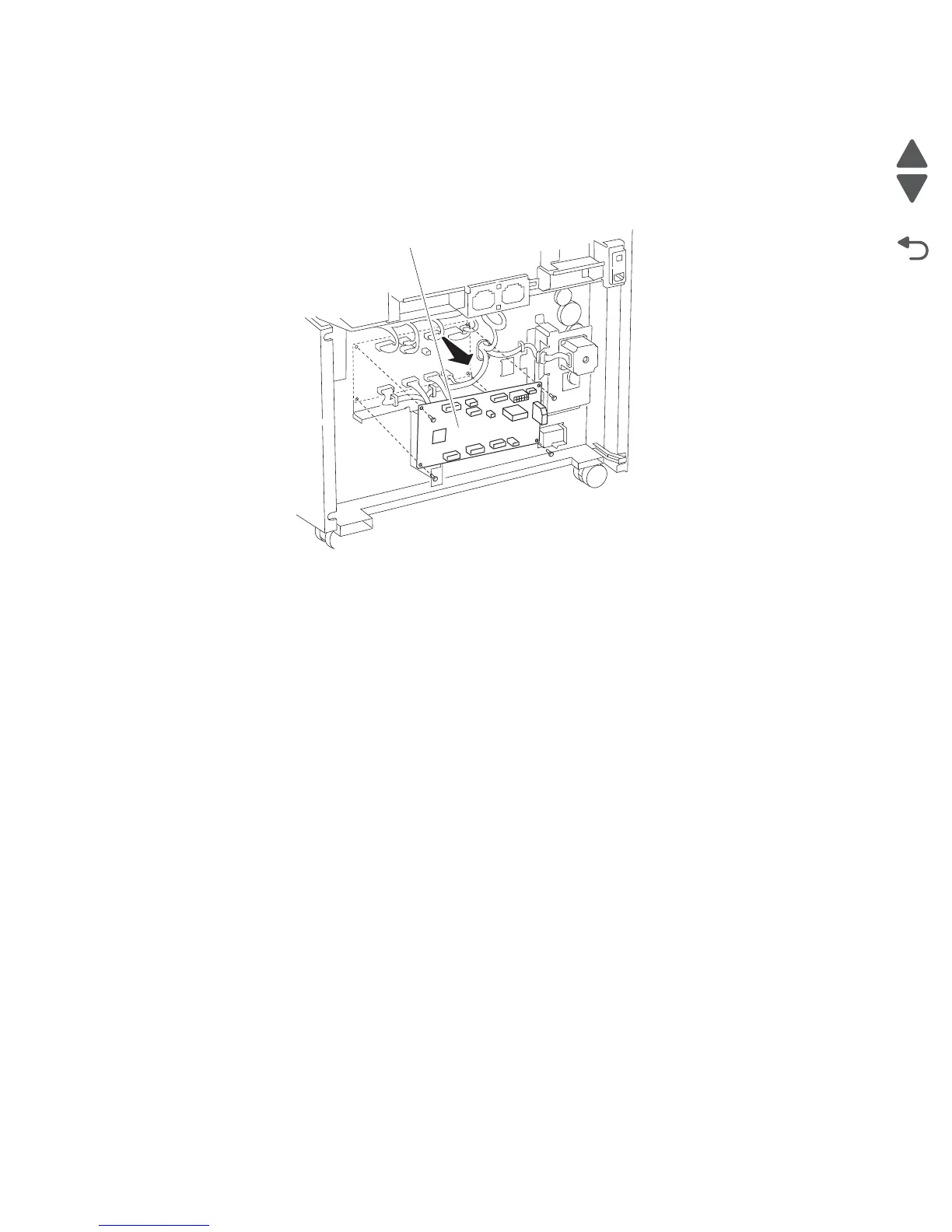

3X 500-sheet drawer (3TM)—3TM controller card assembly removal
1. Remove the rear cover. See “3X 500-sheet drawer (3TM)—rear cover removal” on page 4-215.
2. Disconnect the nine connectors from the 3TM controller card assembly (A).
3. Remove the four screws securing the 3TM controller card assembly (A) to the machine.
4. Remove the 3TM controller card assembly (A).
A
