Lexmark X945e MFP 7510 series - 2000-Sheet Dual Input (TTM)-Right Cover Removal

Repair information 4-173
7510
Go Back
Previous
Next

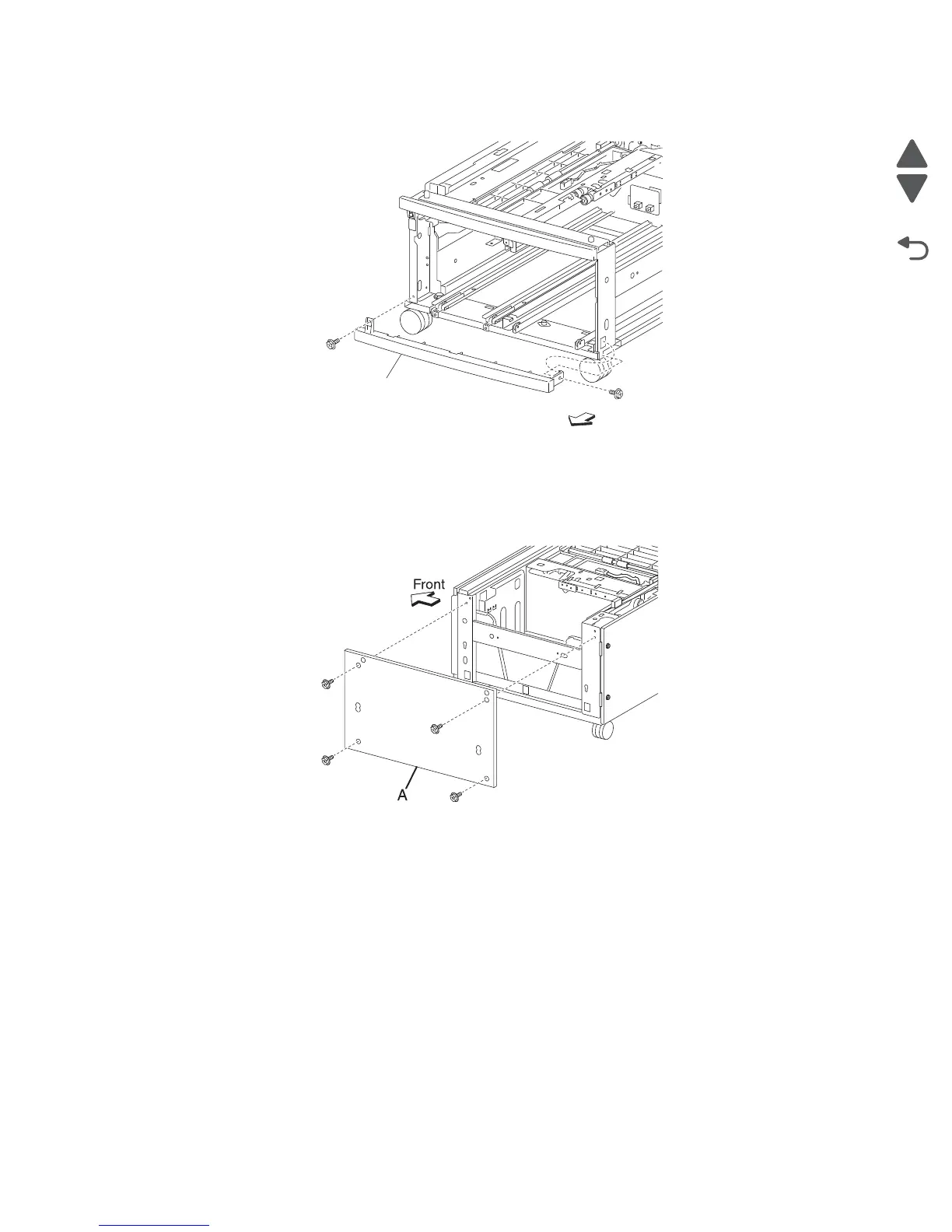

4. Remove the foot cover (A).
2000-sheet dual input (TTM)—right cover removal
1. Remove the four screws securing the right cover (A).
2. Remove the right cover (A) by lifting up and out.
A
Front
