Sensor (document tray length 2) removal
1. Open the ADF left cover assembly.
2. Lift the document tray assembly.

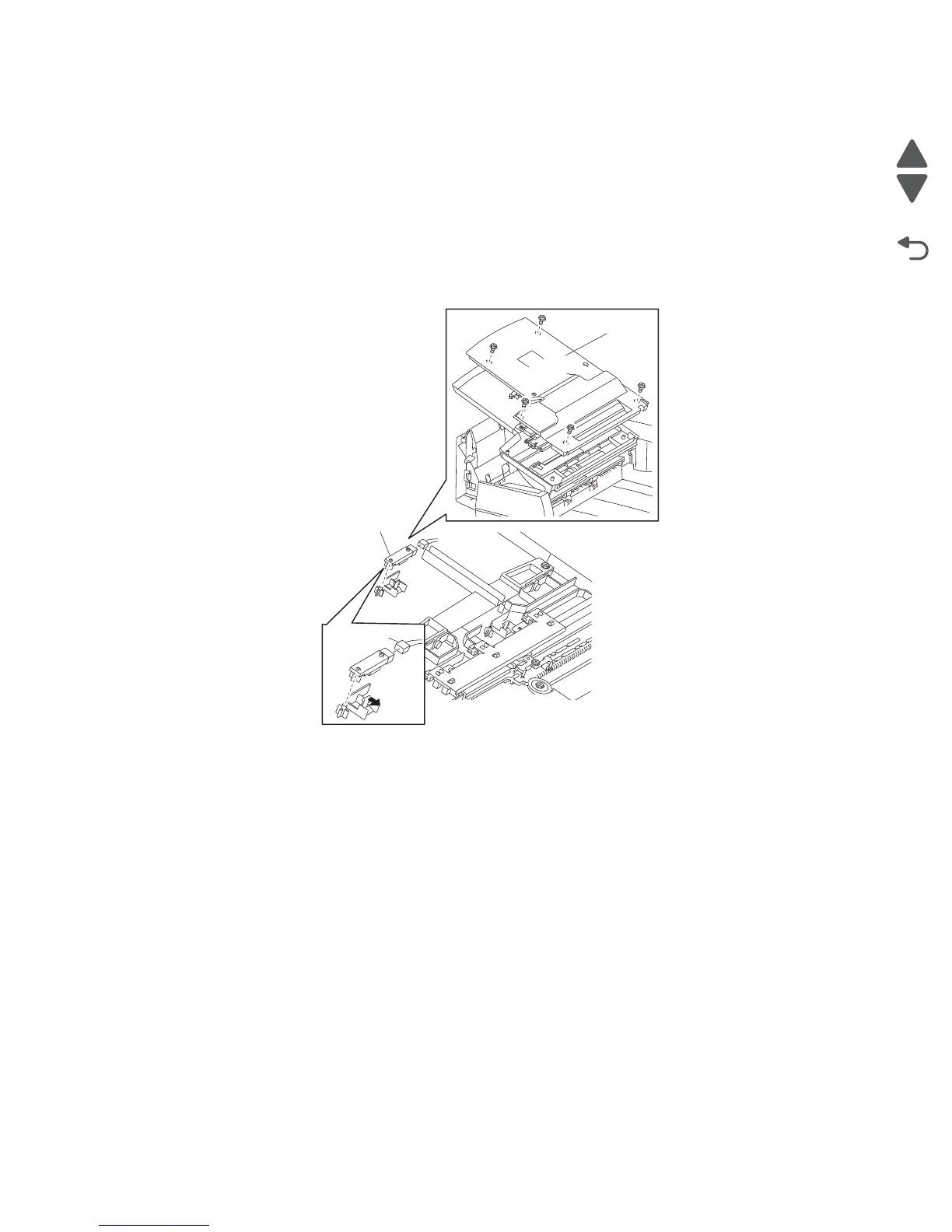

3. Remove the five screws securing the cover (A).
4. Remove the cover (A).
5. Remove the connector from the sensor (document tray length 2) (B).
6. Release the hook securing the sensor (document tray length 2) (B).
7. Remove the sensor (document tray length 2) (B).
Note: The sensor (document tray length 1) and the sensor (document tray length 2) are identical.
A
B
Connector
