7-8 MFP Service Manual
7510
Go Back
Previous
Next

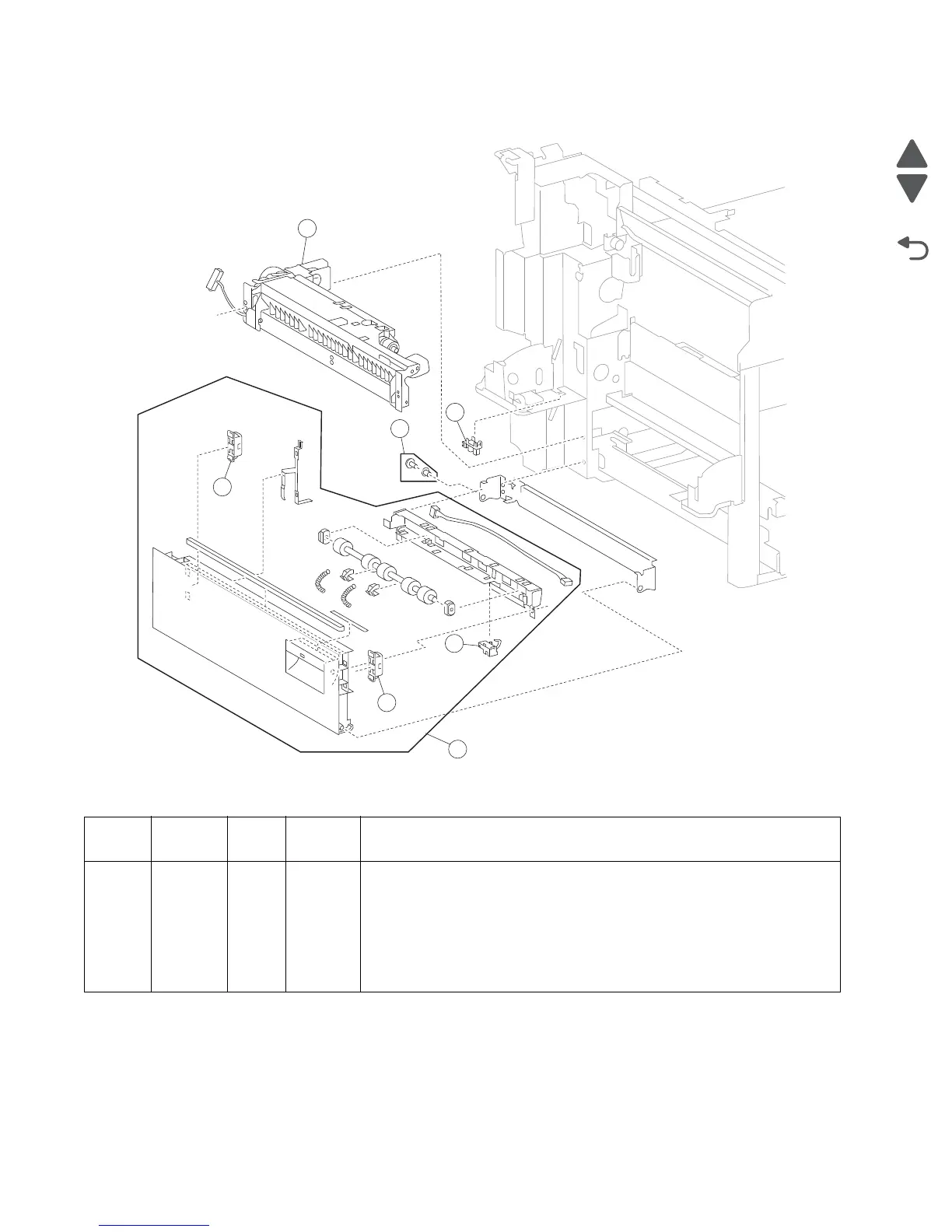

Assembly 7: Printer left lower door and media feed unit
Asm-
index
Part
number
FRUs/
mach
Units/
FRU
Description
1 40X3679 4 1 Media feed unit assembly
2 40X3688 30 1 Sensor (printer left lower door interlock)
3 40X0613 1 1 Hinge pin
4 40X3680 1 1 Printer left lower door assembly (this comes assembled)
5 40X3681 1 1 Sensor (tray 1 feed-out)
6 40X3682 2 1 Magnetic catch
3
5
2
6
4
1
6
