3X 500-sheet drawer (3TM)—one-way 22 tooth removal
1. Remove the media tray assembly.
2. Remove the feed roll. See “2000-sheet dual input (TTM)—feed roll removal” on page 4-200.
3. Remove the feed roll one-way clutch. See “2000-sheet dual input (TTM)—feed roll one-way clutch
removal” on page 4-201.

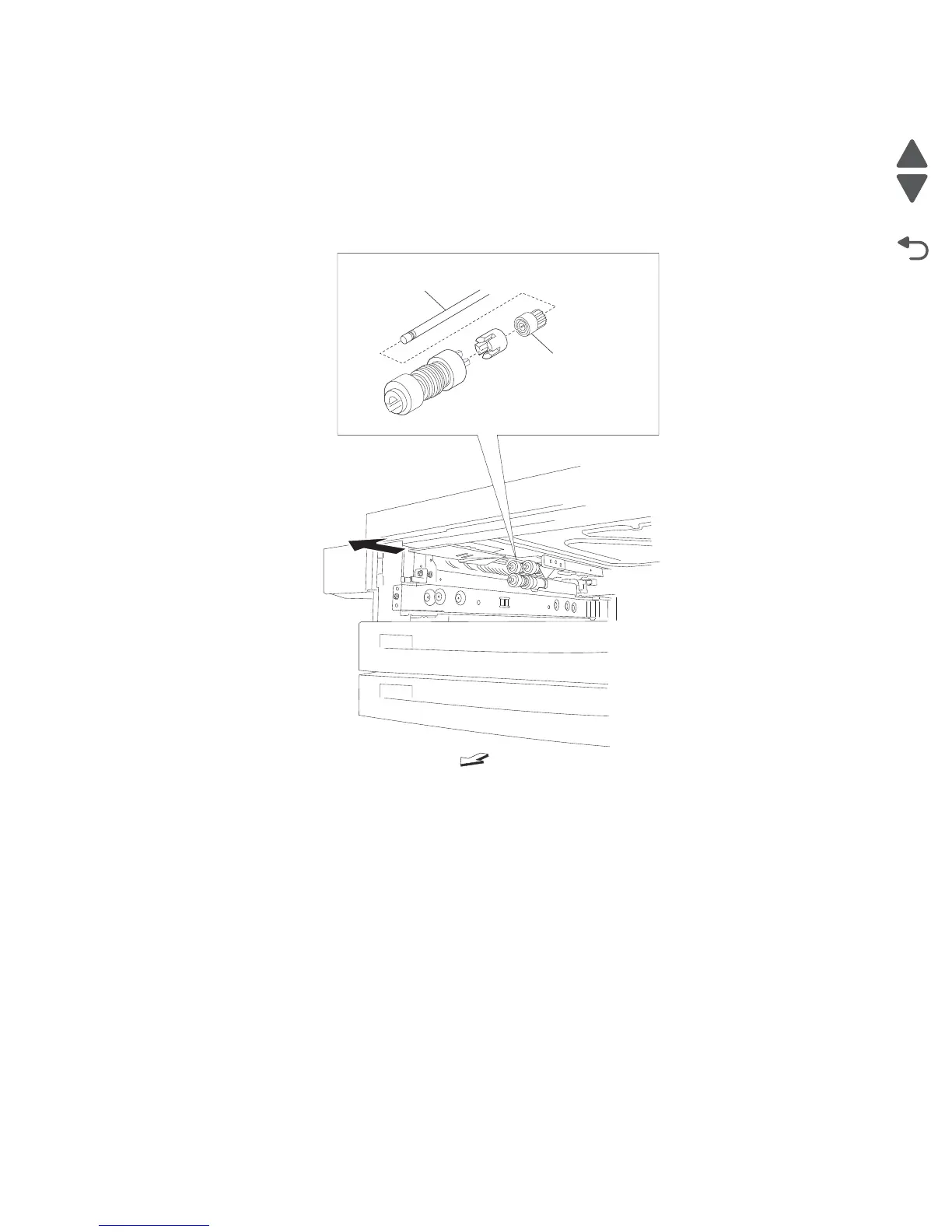

4. Remove the feed roll one-way gear 22 tooth (A).
A
Front
B
