Lexmark X945e MFP 7510 series - 500-Sheet Drawer (1 TM)-Feed Roll One-Way Clutch Removal

4-252 Service Manual
7510
Go Back
Previous
Next
1X 500-sheet drawer (1TM)—feed roll one-way clutch removal
1. Remove the media tray assembly.
2. Remove the feed roll. See “2000-sheet dual input (TTM)—feed roll removal” on page 4-200.

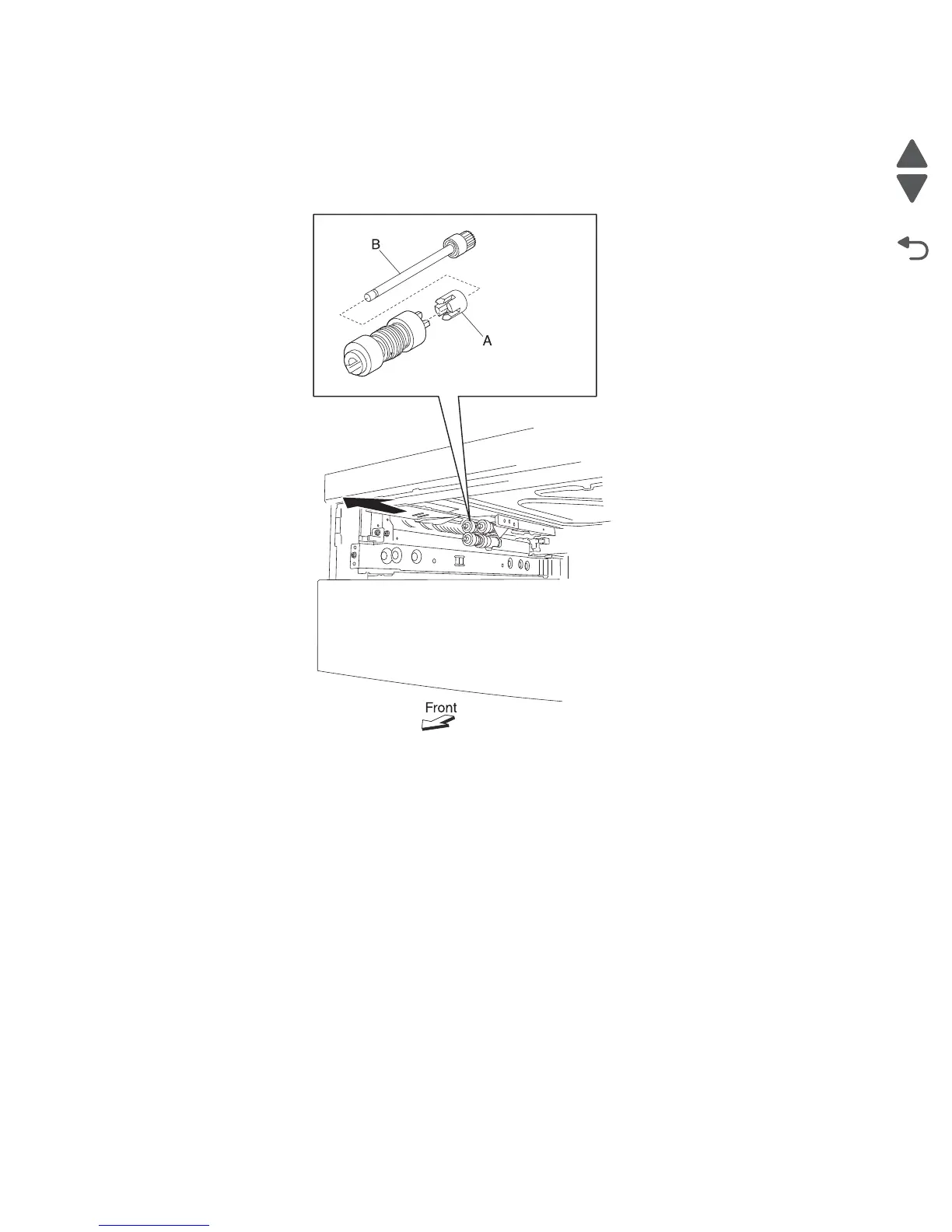

3. Remove the feed roll one-way clutch (A) from the shaft (B).
