Repair information 4-9
7510

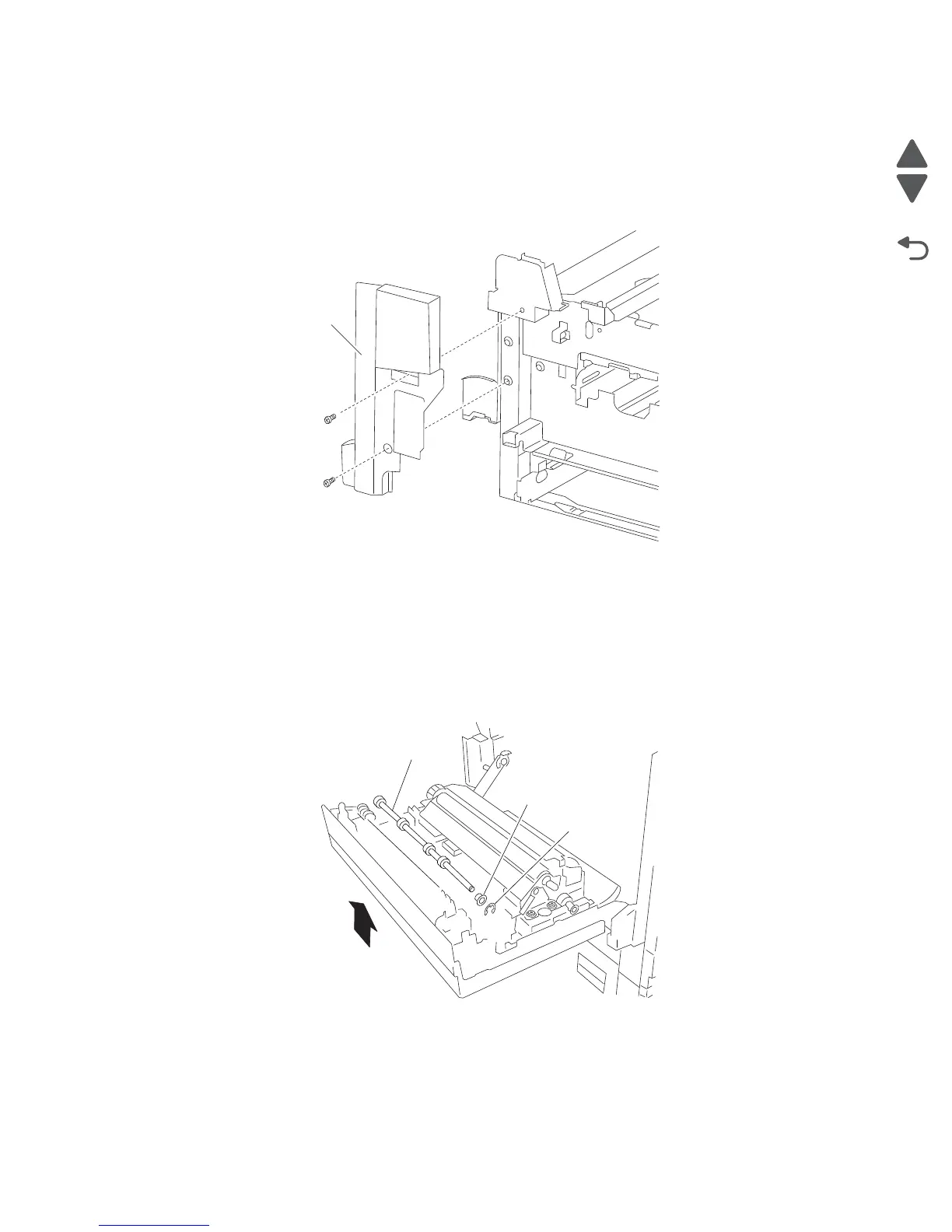

Front left cover removal
1. Open the printer front door assembly.
2. Remove the two screws securing the front left cover (A) to the machine.
3. Move the front left cover (A) up and pull out.
4. Remove the front left cover (A).
Duplex media inverter assembly removal
1. Open the printer left door assembly.
2. Remove the E-clip securing the fuser exit roll assembly (A) to the machine.
3. Remove the bushing (B).
4. Remove the fuser exit roll assembly (A).
5. Remove the two screws securing the duplex media inverter assembly (C).
6. Remove the duplex media inverter assembly (C).
To Next Page
