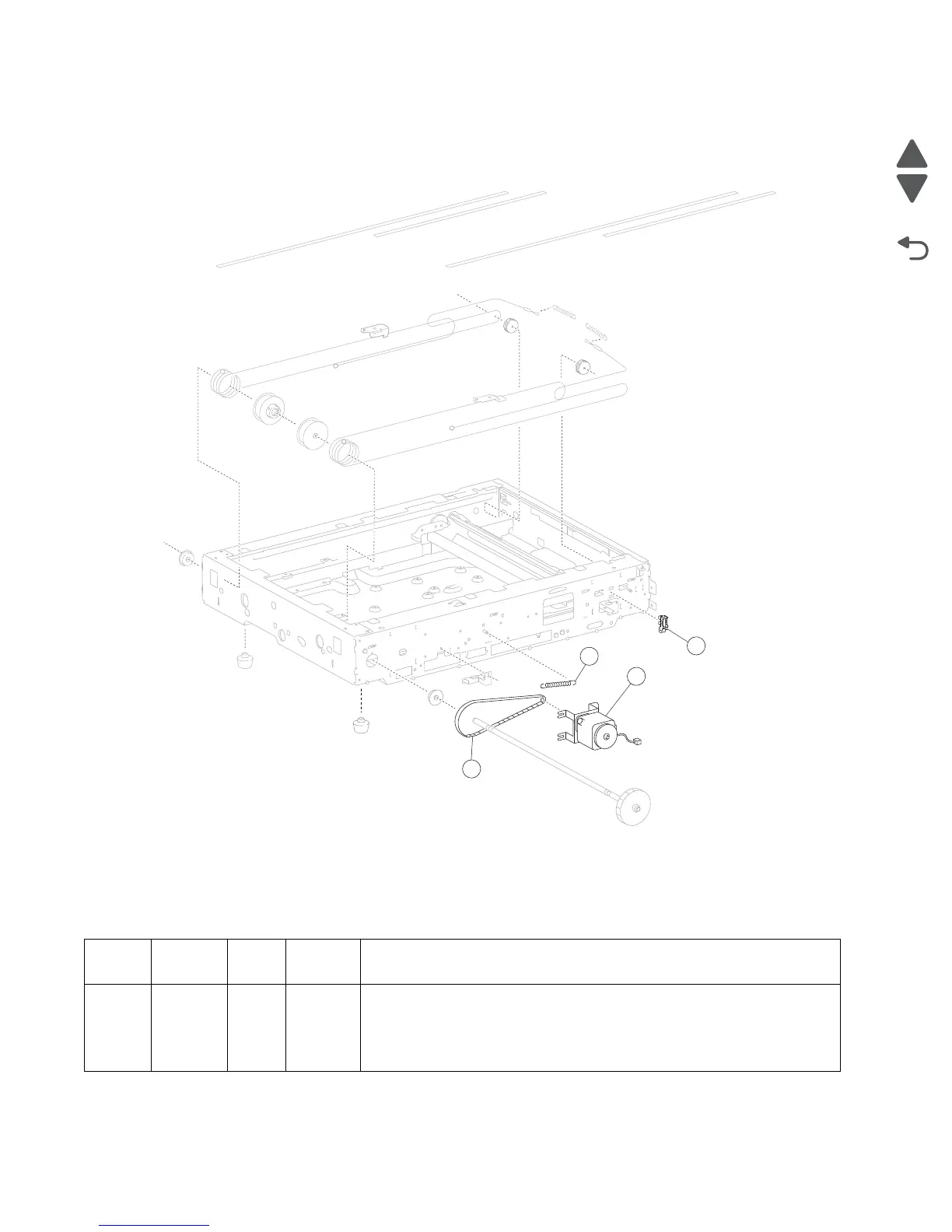

Assembly 47: Carriage cable and motor
Asm
Index
Part
number
Units/
mach
Units/ kit
or pkg
Description
1 40X2223 2 1 Sensor (scanner HP)
2 40X2229 1 1 Scanner drive motor tension spring
3 40X3868 1 1 Scanner drive motor assembly
4 40X2226 1 1 Scanner drive belt
3
4
1
2
