Repair information 4-13
7510
Replacement note: When replacing the printer left door assembly (B), ensure that the duplex media exit
turn guide (A) is held up, or the printer left door assembly (B) will not close properly.

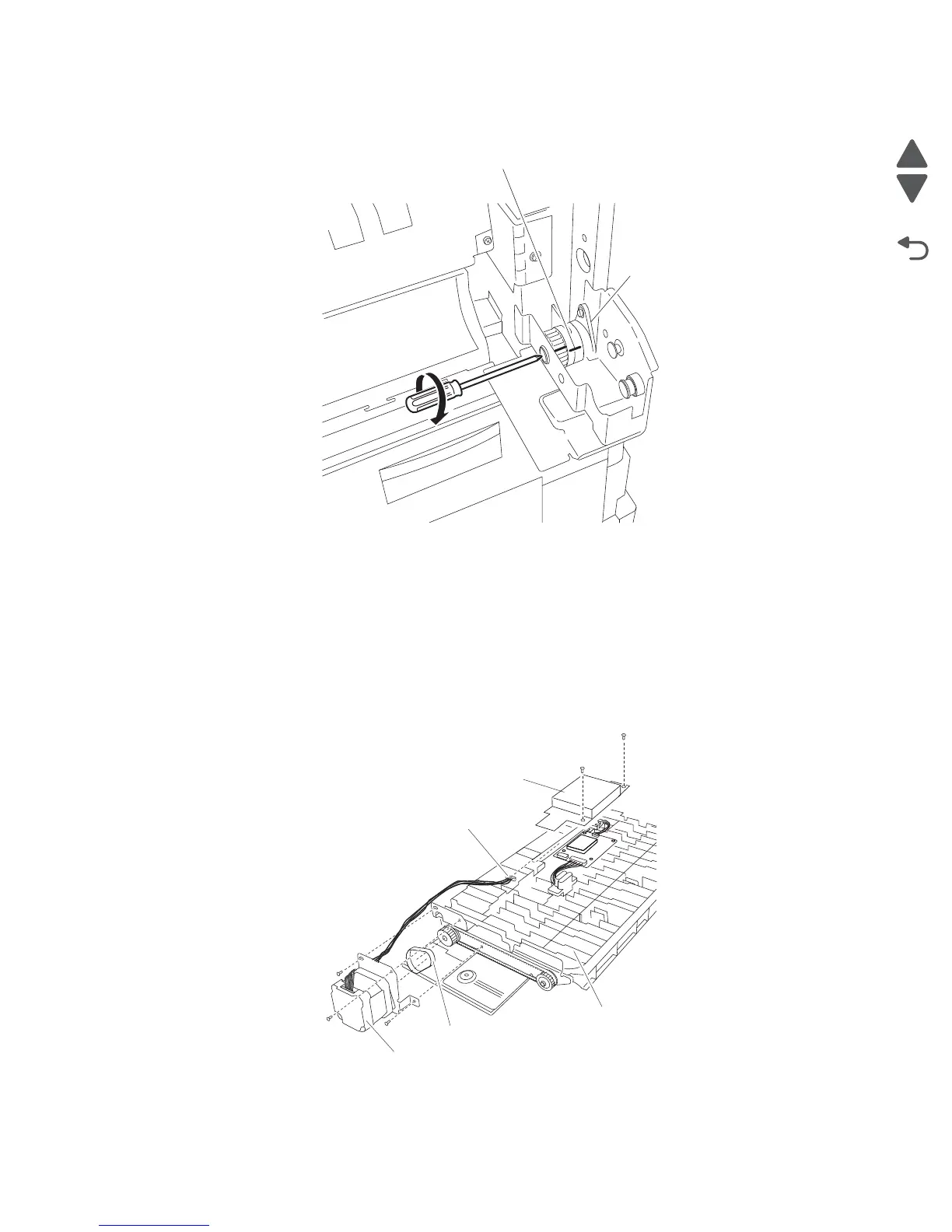

Duplex drive motor removal
1. Remove the duplex unit assembly. See “Duplex unit assembly removal” on page 4-10.
2. Remove the screw securing the connector access cover (A) to the duplex unit assembly (B).
3. Disconnect the connector from the duplex drive motor (C).
4. Remove the harness from the clamps.
5. Remove the three screws securing the duplex drive motor (C) to the duplex unit assembly (B).
Note: When removing the duplex drive motor (C), the belt (D) will become detached.
6. Remove the duplex drive motor (C).
To Next Page
