Repair information 4-31
7510

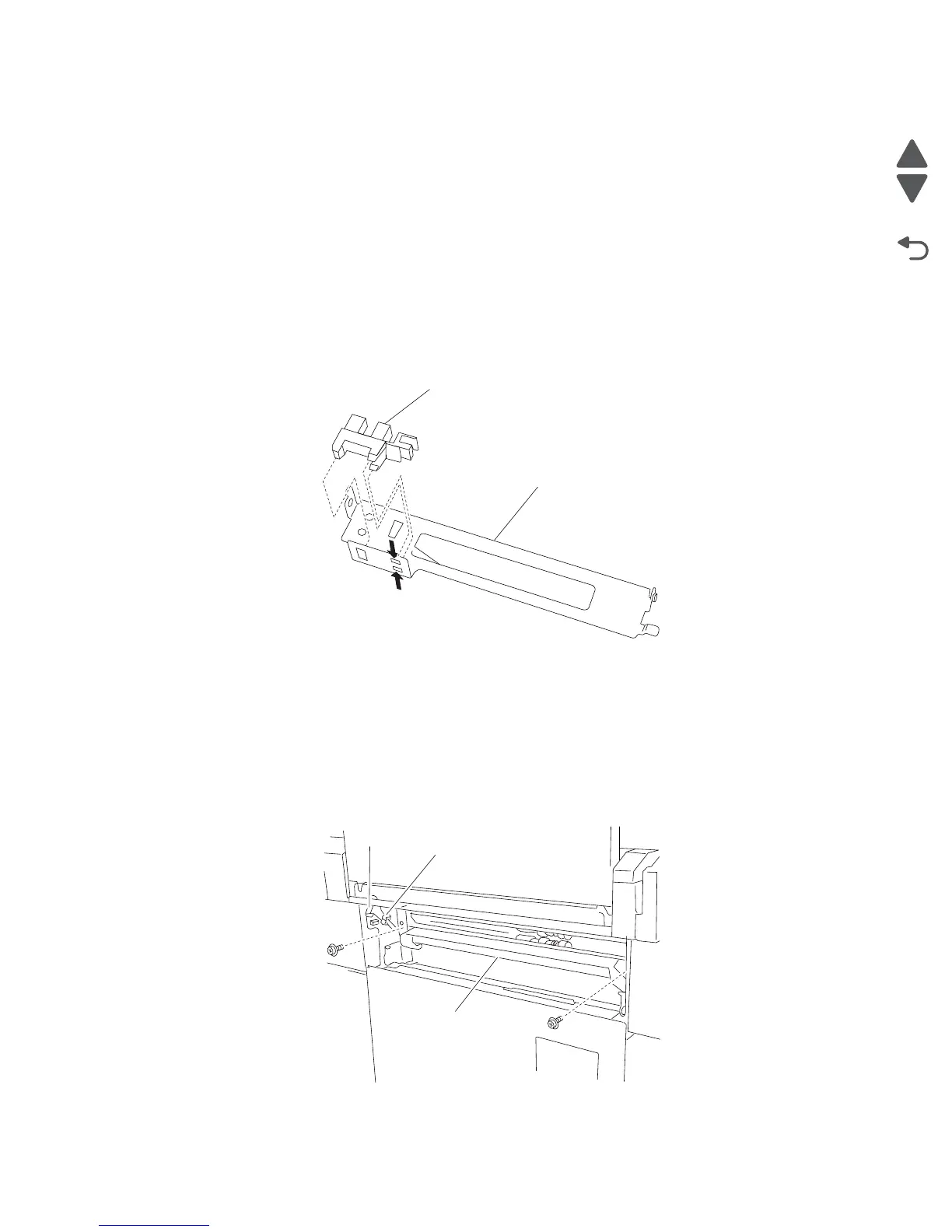

Sensor (standard media bin full) removal
1. Remove the rear cover assembly. See “Rear cover assembly removal” on page 4-5.
Warning: Ensure that the rear left middle cover is removed before removing the rear left upper cover, or
damage will occur.
2. Remove the rear left middle cover. See “Rear left middle cover removal” on page 4-6.
3. Remove the rear left upper cover. See “Rear left upper cover removal” on page 4-7.
4. Remove the standard media exit bin full actuator. See “Standard media exit bin full actuator removal” on
page 4-28.
5. Remove the screw securing the bracket (A) to the machine.
6. Remove the bracket (A).
7. Release the hooks securing the sensor (standard bin full) (B) to the bracket (A).
8. Remove the sensor (standard bin full) (B).
9. Disconnect the connector from the sensor (standard media bin full) (B).
Media feed unit assembly 1 removal
1. Remove the media tray 1.
2. Remove the printer left lower door assembly. See “Printer left lower door assembly removal” on
page 4-8.
3. Disconnect the connector from the media feed unit assembly (A).
4. Remove the two screws securing the media feed unit assembly (A) to the machine.
5. Remove the media feed unit assembly (A).
