4. Remove the standard media exit shift assembly. See “Standard media exit shift assembly removal” on
page 4-28.

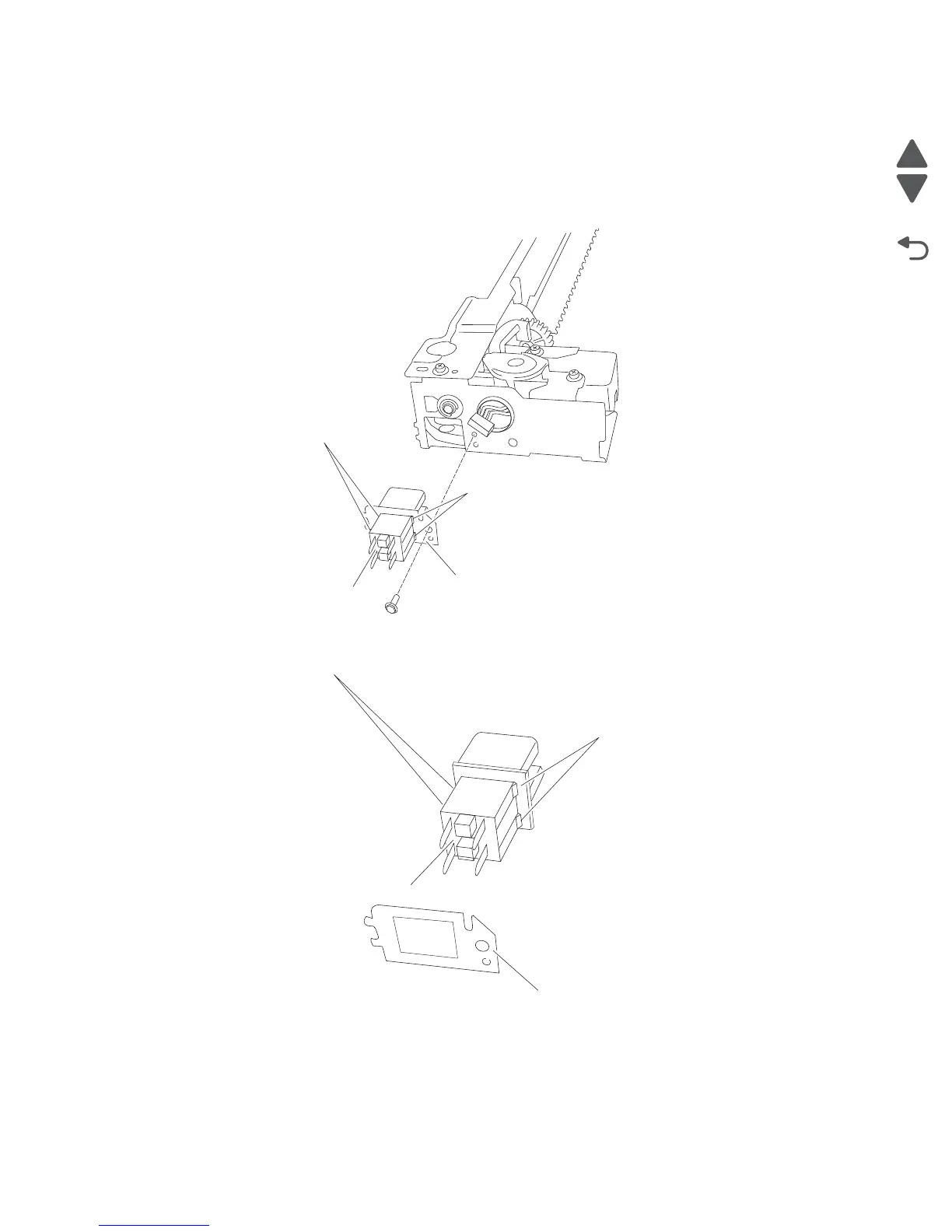

5. Remove the screw securing the bracket (A) to the standard media exit bin shift assembly.
6. Remove the bracket (A).
7. Release the hooks securing the switch (printer left door interlock) (B) to the bracket (A).
8. Remove the switch (printer left door interlock).
Hooks
A
B
Hooks
Hooks
A
B
Hooks
