Diagnostic information 2-249
7510

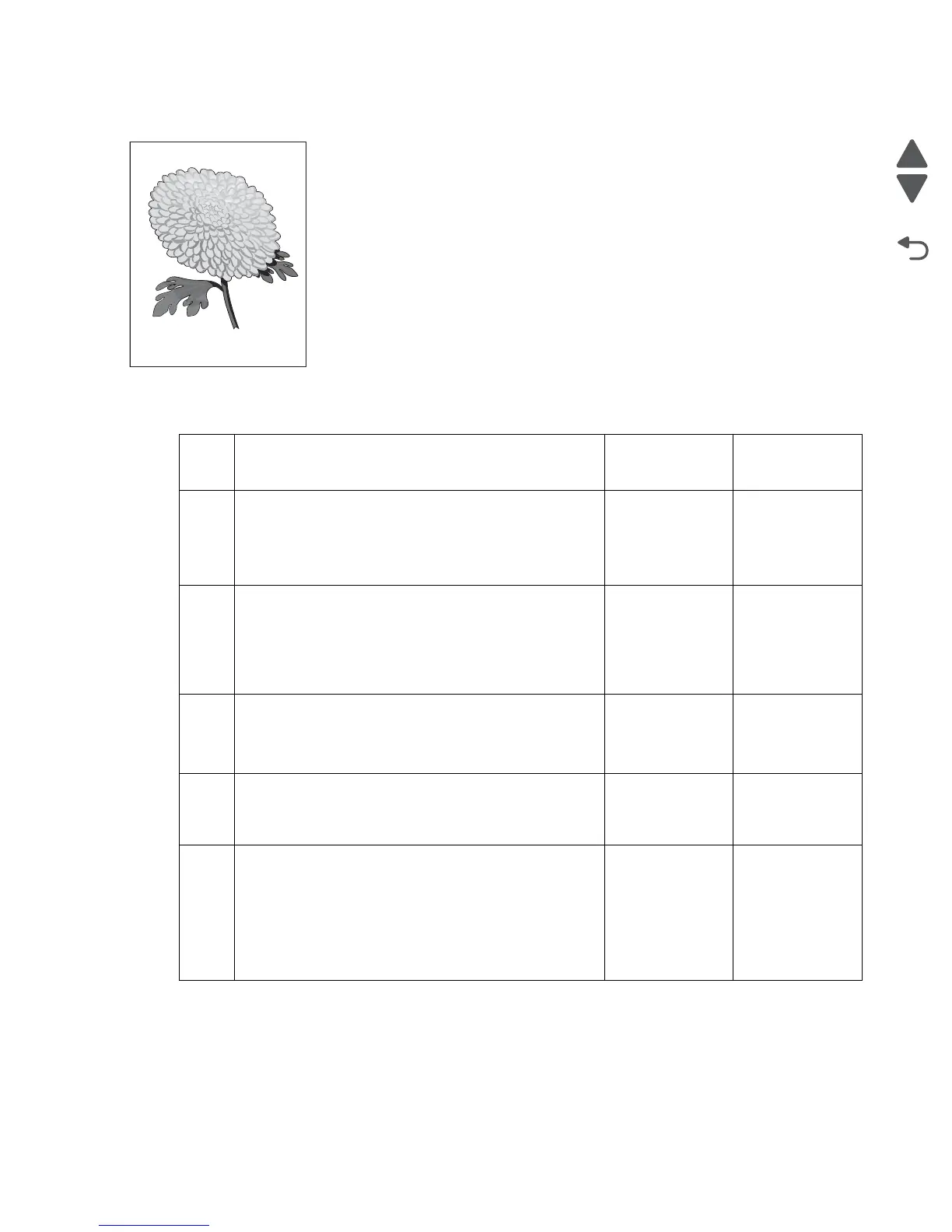

Skew
The printed image is not paralleled with both sides of the media.
Step Check Yes No
1 Check printer installation placement.
Check the installation surface for irregularities.
Check for damaged printer caster.
Is the setup surface normal?
Go to step 2. Correct the
installation
placement.
2
Properly load media into the media tray assembly and
ensure all guides are set correctly.
Properly install the media tray assembly into the printer.
Re-print the defective image.
Does the error continue?
Go to step 3. Problem solved.
3
Check for obstructions in the area of the media feed
units.
Are the media feed unit assembly free from any
obstructions?
Go to step 4. Remove
obstructions.
4
Is the printer left door assembly properly and evenly
closed.
Go to step 5. Open then
properly close
the printer left
door assembly.
5
Check the 2nd transfer roll assembly for contamination
and wear.
Is the 2nd transfer roll assembly free of excess wear
and contamination?
Go to step 6. Replace the 2nd
transfer roll
assembly.
Go to “2nd
transfer roll
assembly
removal” on
page 4-45.
Leading edge
Trailing edge
