Lexmark X945e MFP 7510 series - 500-Sheet Drawer (1 TM)-Tray Module Left Door Assembly Removal

Repair information 4-257
7510
Go Back
Previous
Next

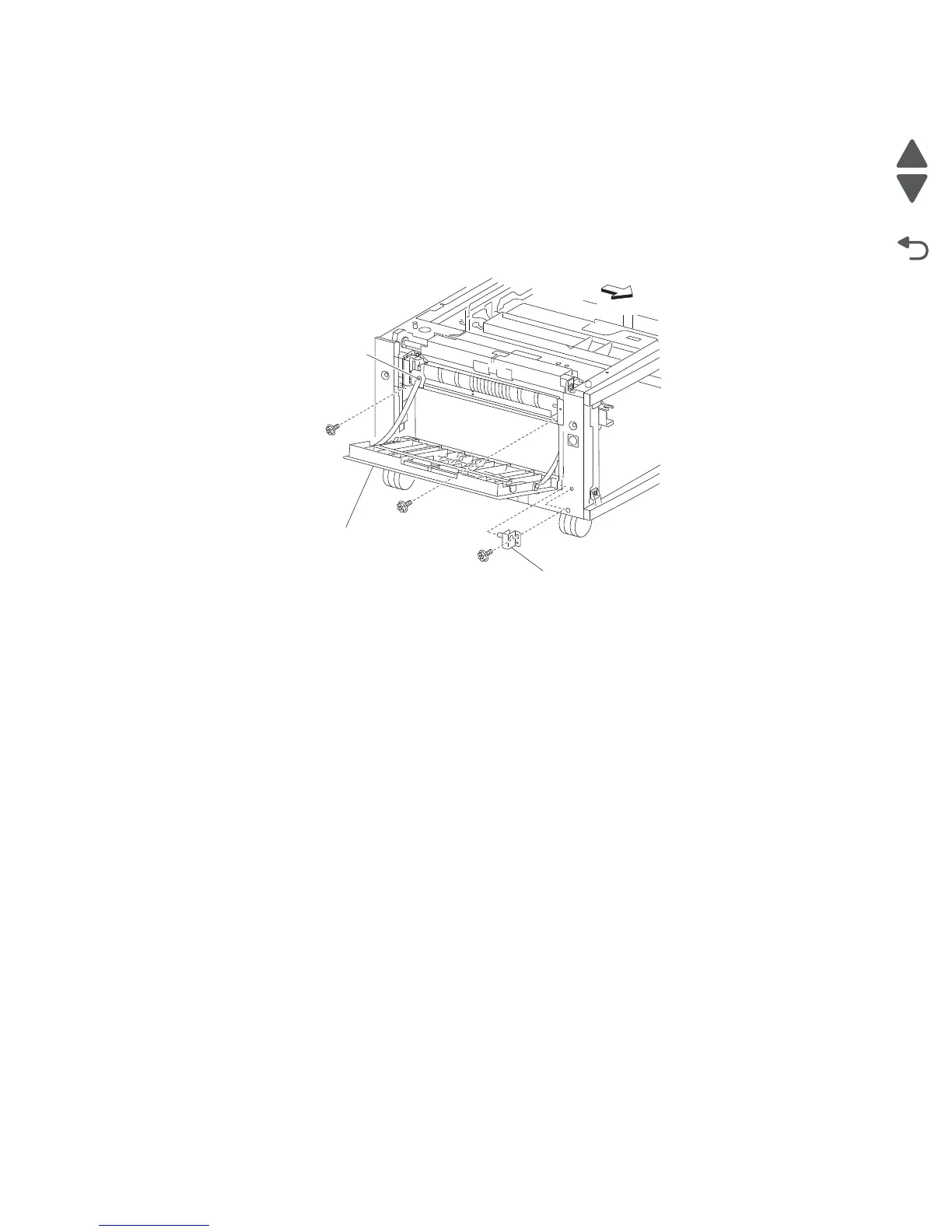

1X 500-sheet drawer (1TM)—tray module left door assembly removal
1. Open the 3TM/TMM left door assembly.
2. Remove the two screws securing the two supports straps (A) to the machine.
3. Remove the screw securing the bracket (B) to the machine.
4. Remove the bracket (B).
5. Move the tray module left door assembly (C) to the front and out in the direction of the arrow.
6. Remove the tray module left door assembly (C).
Front
B
A
C
