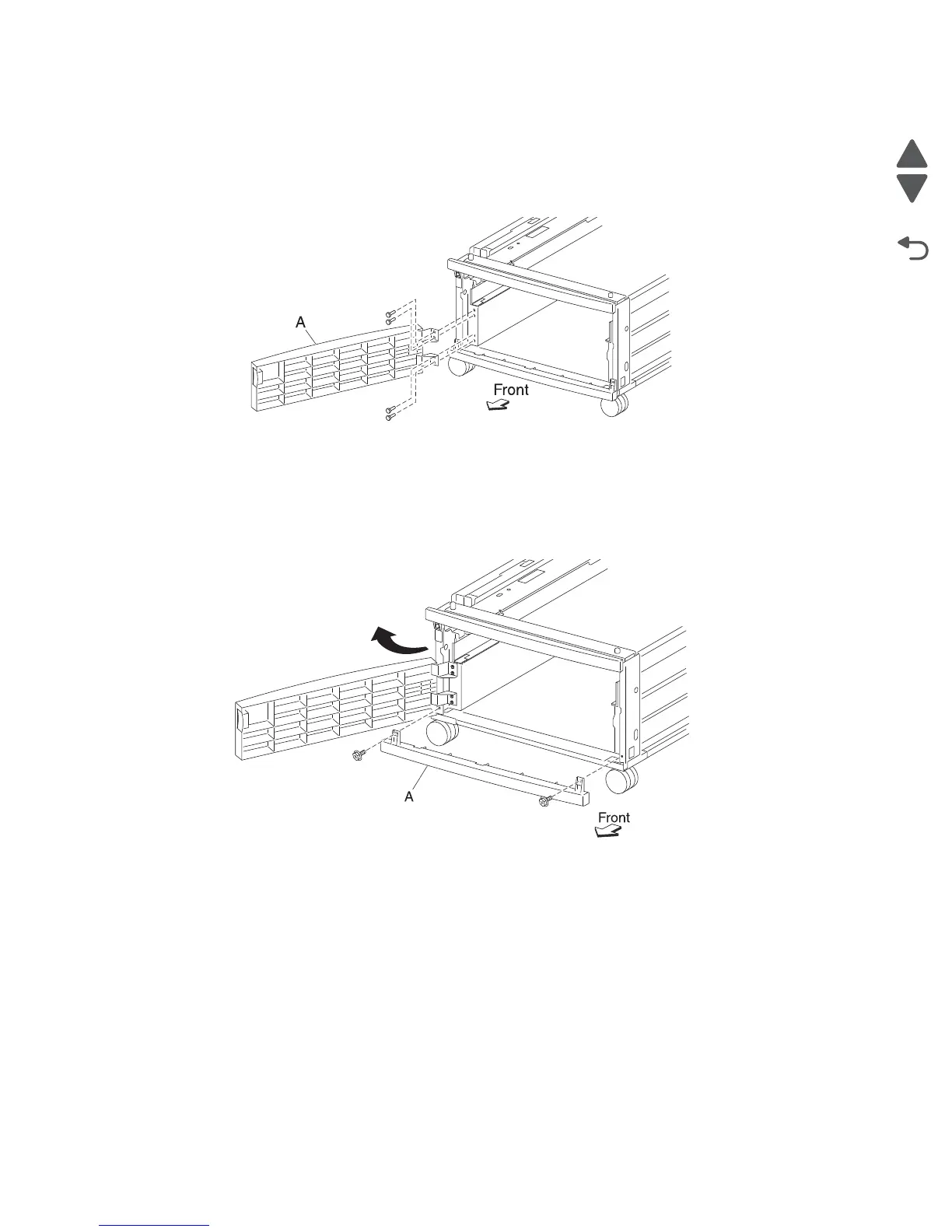

1X 500-sheet drawer (1TM)—front door removal
1. Open the 1TM front door.
2. Remove the four screws securing the front door (A) to the machine.
3. Remove the front door (A).
1X 500-sheet drawer (1TM)—foot cover removal
1. Open the 1TM front door.
2. Remove the two screws securing the foot cover (A) to the machine.
3. Remove the foot cover (A).
