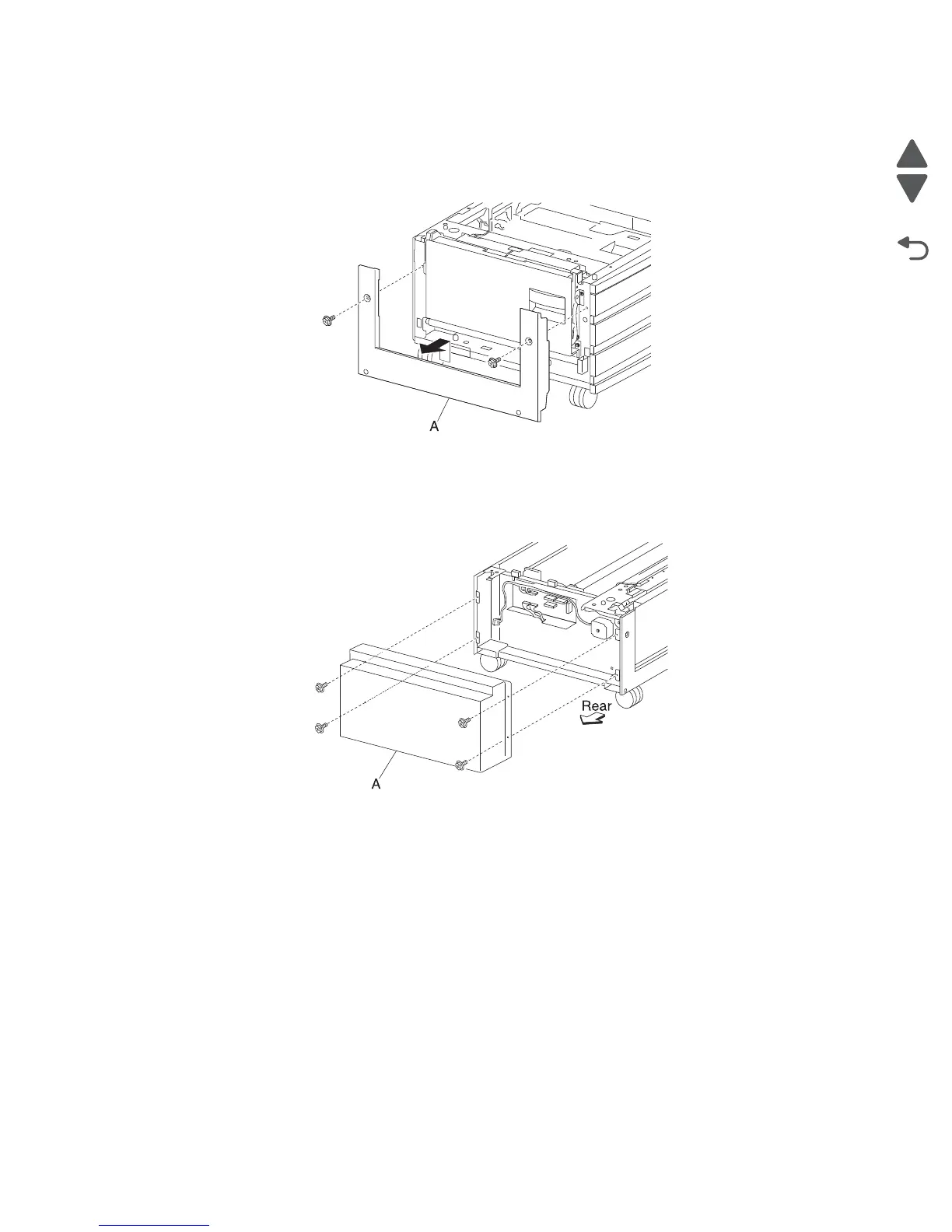

3X 500-sheet drawer (3TM)—tray module left cover removal
1. Remove the four screws securing the tray module left cover (A).
2. Remove the tray module left cover (A).
3X 500-sheet drawer (3TM)—rear cover removal
1. Remove the four screws securing the rear cover (A).
2. Remove the rear cover (A).
