Diagnostic information 2-3
7510

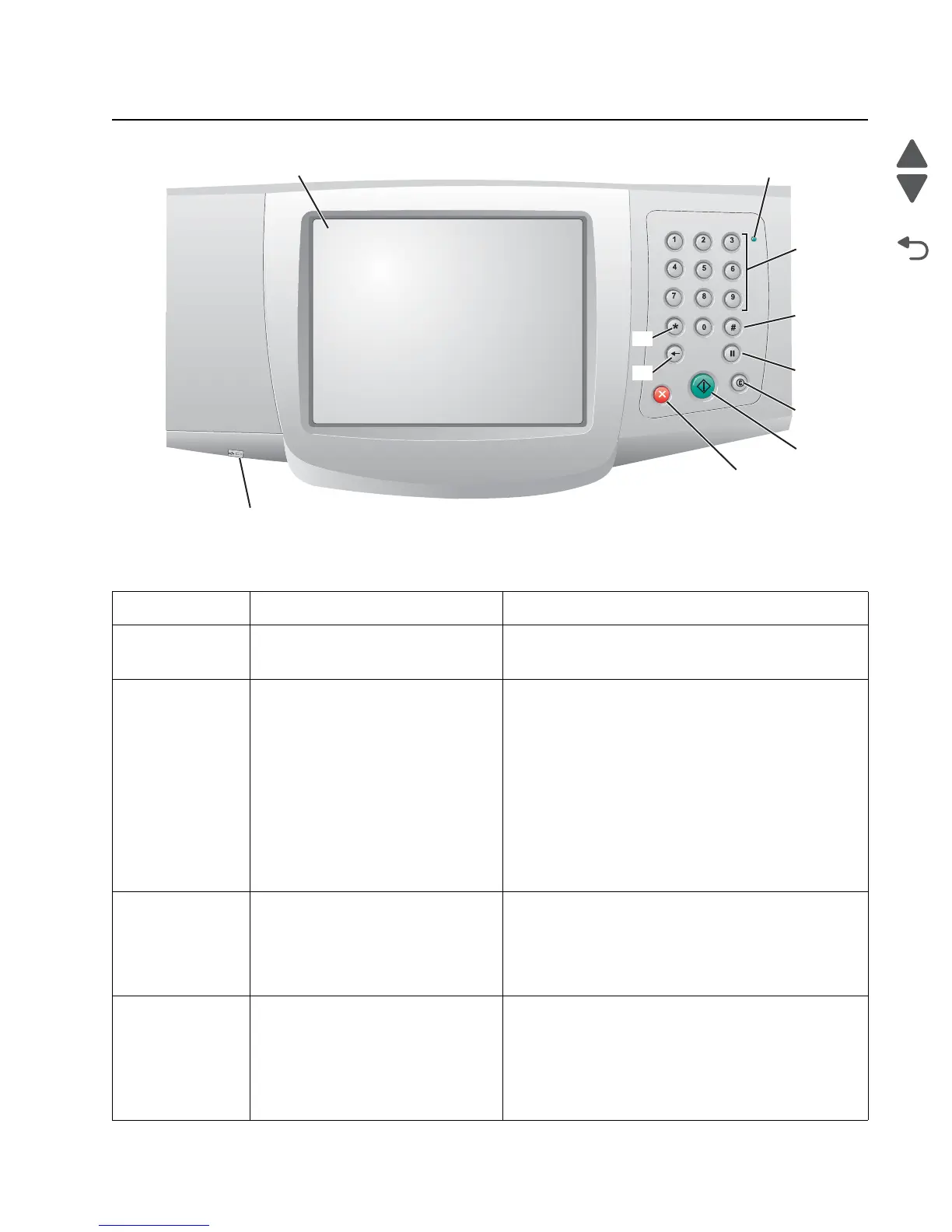

Control panel
Callout Control panel item Function
1 LCD A liquid crystal display (LCD) which shows home screen
buttons, menus, menu items, and values. Allows for
making selections within Copy, Fax, and so on.
2
Indicator light Gives information about the status of the MFP using the
colors red and green.
3
0–9
Note: Referred to as the numeric
keypad.
Press these buttons to enter numbers when the LCD
screen has a field that accepts the entry of numbers.
Also, use these buttons to dial phone numbers for faxes.
Note: If a number is pressed while on the home screen
without pressing the # button first, the Copy menu opens
and changes the Copy Quantity.
4
# (Pound or number character) Press this button:
• For a shortcut identifier.
• Within phone numbers. For a Fax number with a #,
enter it twice — ##.
• From the home screen, the Fax Destination List menu
item, E-mail Destination List menu item, or Profile List
menu item to access shortcuts.
12
3
4
5
6
7
8
9
10
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
WXYZ
11
Status Indicates
Off MFP power is off.
Blinking green MFP is warming up, processing data,
or printing a job.
Solid green MFP is on, but idle.
Solid red Operator intervention is required.
