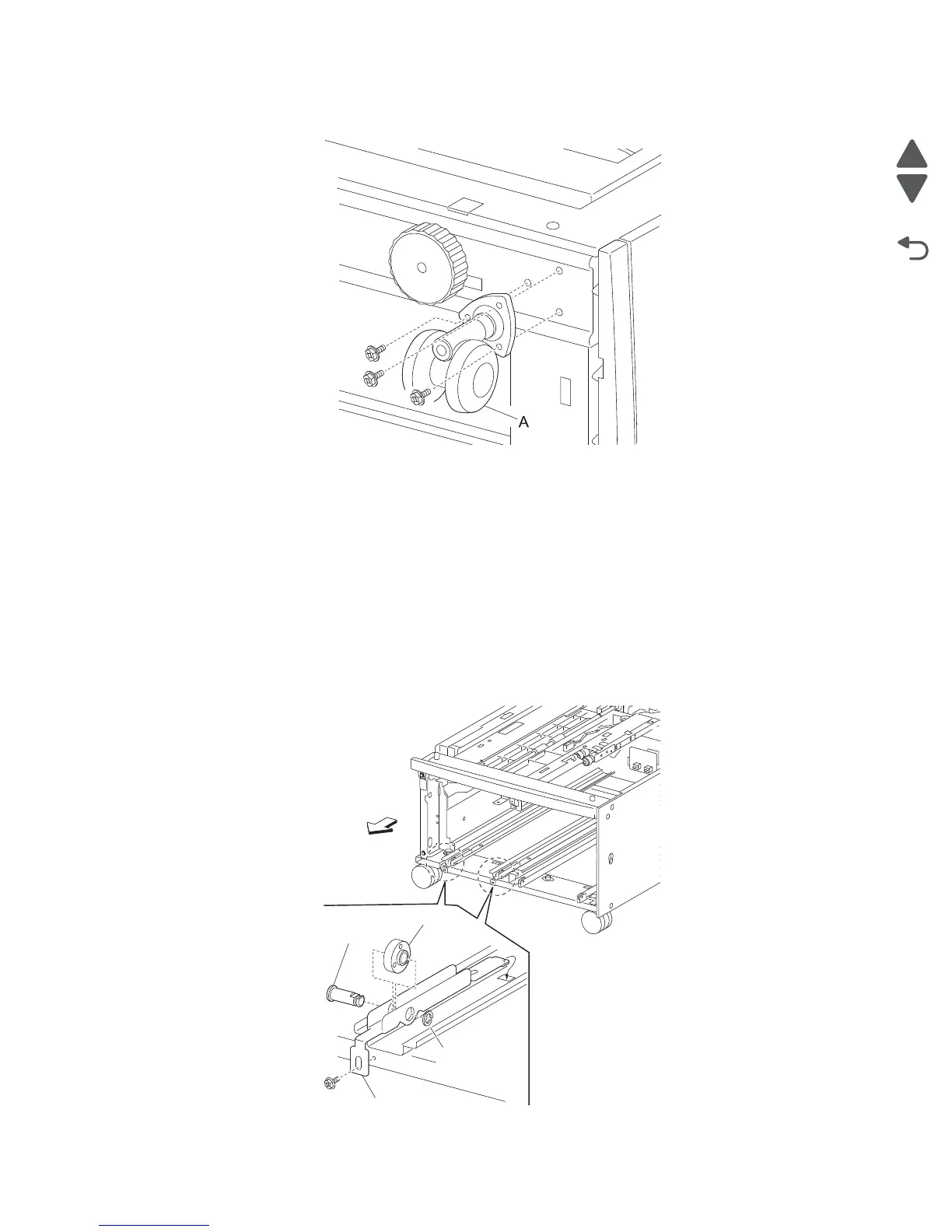

7. Remove the caster (A).
2000-sheet dual input (TTM)—tray support roll removal
1. Remove the tray module left cover. See “2000-sheet dual input (TTM)— tray module left cover removal”
on page 4-174.
2. Remove TTM media tray 3 assembly. See “2000-sheet dual input (TTM)—TTM media tray 3 assembly
removal” on page 4-178.
3. Remove media tray 4 assembly. See “2000-sheet dual input (TTM)—TTM media tray 4 assembly
removal” on page 4-177.
4. Remove the foot cover. See “2000-sheet dual input (TTM)—foot cover removal” on page 4-172.
5. Remove the two screws securing the two brackets (A).
6. Remove the two E-clips securing the tray support rolls (B) to the two brackets (A) using a prying tool.
7. Remove the two E-clips securing the tray support rolls (B) to the main frame (C).
Front
B
D
A
E-clip
