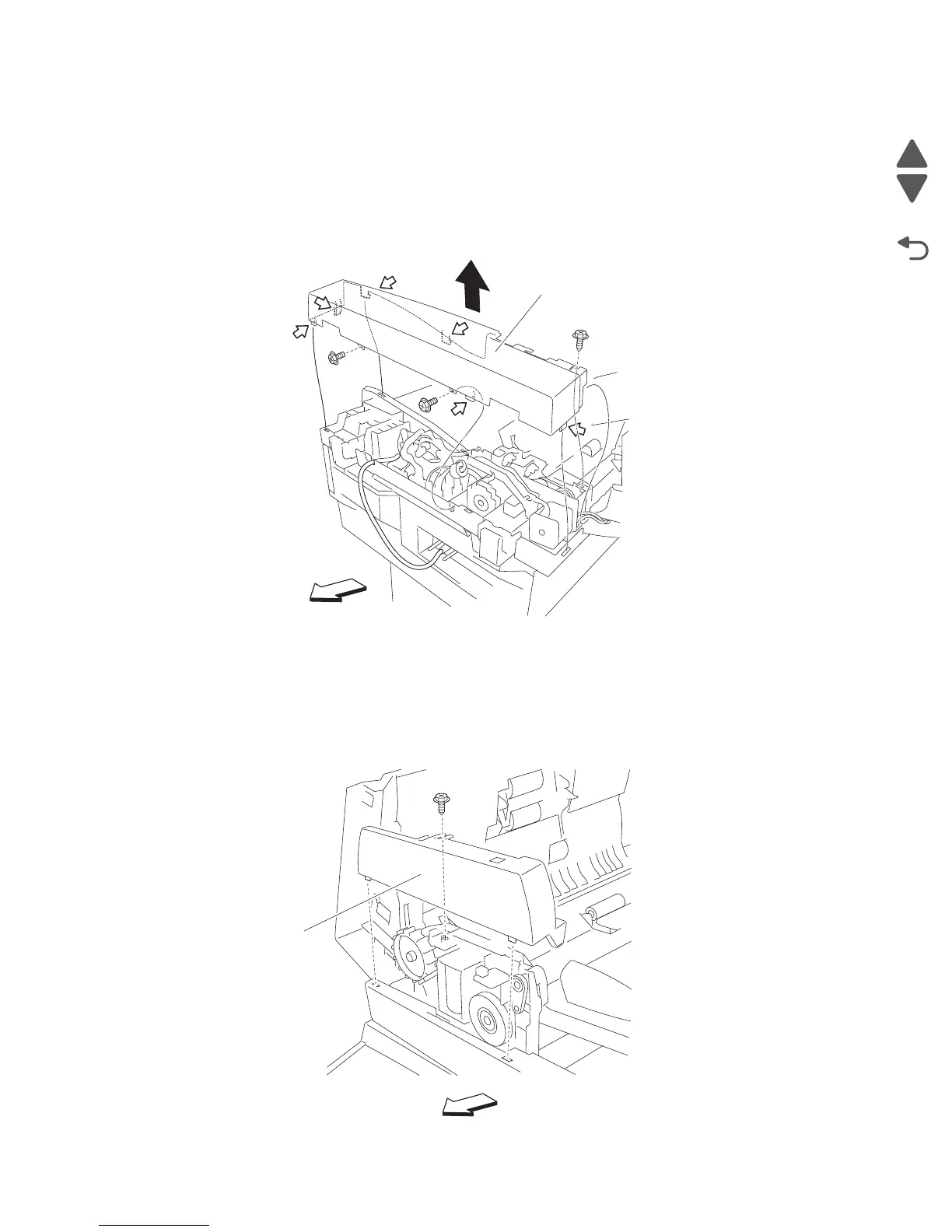

ADF rear cover removal
1. Open the ADF left cover assembly.
2. Lift the document tray assembly.
3. Remove the three screws securing the ADF rear cover (A).
4. Lift the ADF rear cover (A) upward.
5. Remove the ADF rear cover (A).
ADF front cover assembly removal
1. Open the ADF left cover assembly.
2. Remove the screw securing the ADF front cover assembly (A).
3. Lift the ADF front cover (A) upward.
4. Remove the ADF left cover assembly (A).
A
Rear
A
Front
