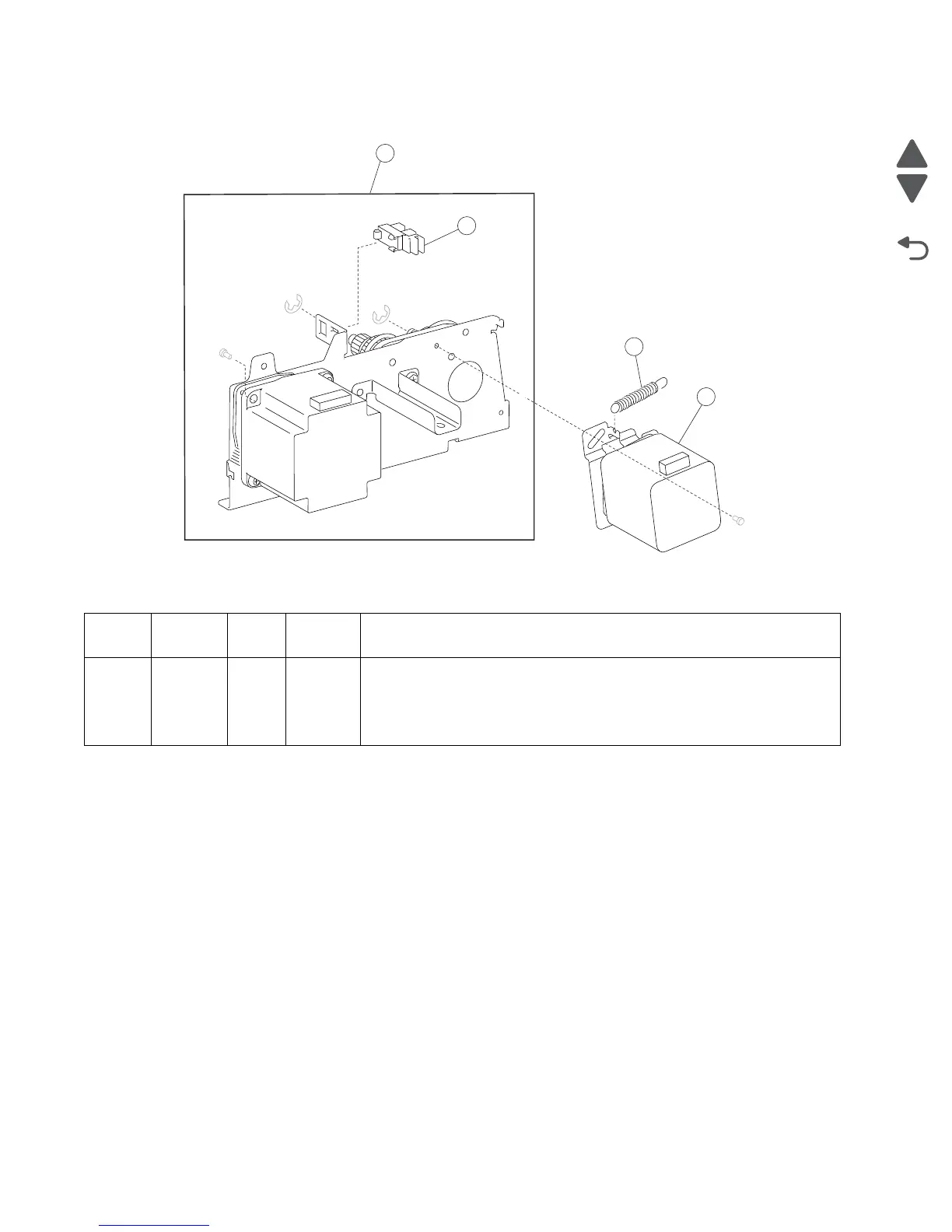

Assembly 40: ADF motor unit
Asm
Index
Part
number
Units/
mach
Units/ kit
or pkg
Description
1 40X2327 1 1 ADF feed motor assembly (this comes assembled)
2 40X2223 13 1 Sensor (sheet through)
3 40X2229 1 1 Tension spring
4 40X2325 1 1 ADF registration motor
3
2
4
1
